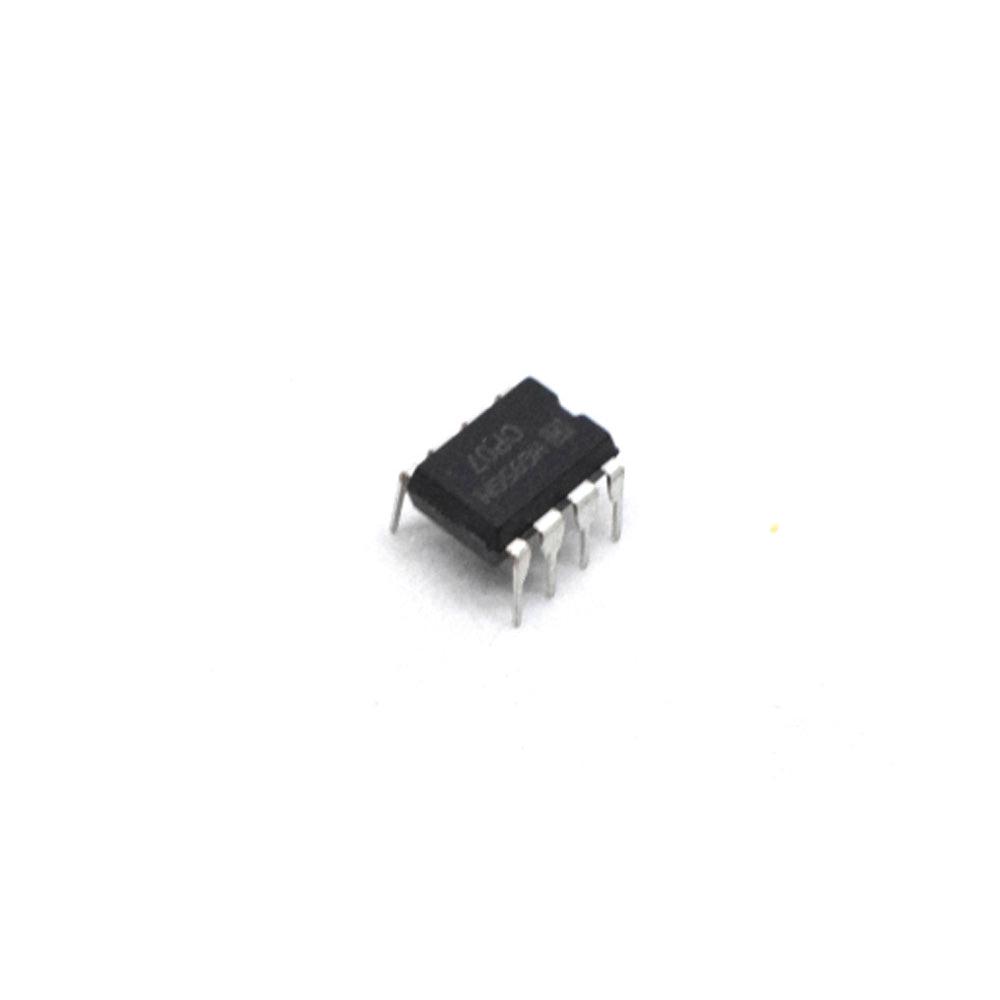

OP07 Operational Amplifier (Pack of 20)
Free Shipping
For all orders over ₹ 1999
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Hotline Order:
Mon - Sat: 10AM - 07PM
+91 8929620302
Trimming at the wafer stage results in a very low input offset voltage (75 V maximum for OP07E). These low offset voltages obviate the requirement for external nulling in most cases. The OP07 also has a low input bias current (for the OP07E, 4 nA) and a high open-loop gain (200 V/mV). The OP07's low offset and strong open-loop gain make it ideal for high gain instrumentation applications. The non inverting circuit layout benefits from a wide input voltage range of 13 V minimum, a high CMRR of 106 dB (OP07E), and a high input impedance. Even at large closed-loop gains, excellent linearity and gain accuracy may be maintained. Offset and acquire stability with time or variation.
Features:
- Ultrastable vs. time: 1.5 µV/month (max.)
- Low noise: 0.6 µV p-p (max.)
- Wide input voltage range: ±14 V
- Wide supply voltage range: ±3 V to ±18 V
- Fits 725, 108A/308A, 741, and AD510 sockets
- 125°C temperature-tested dice
Specifications:
| Part Number | OP07 |
| Type | Operational Amplifier |
| Low V OS | 75 µV Max |
| Low V OS Drift | 1.3 µV/°C Max |
| Low Noise | 0.6 µV p-p Max |
| Wide Input Voltage Range | ±14 V |
| Wide Supply Voltage Range | ±3 V to ±18 V |
| Country of Origin | China |
