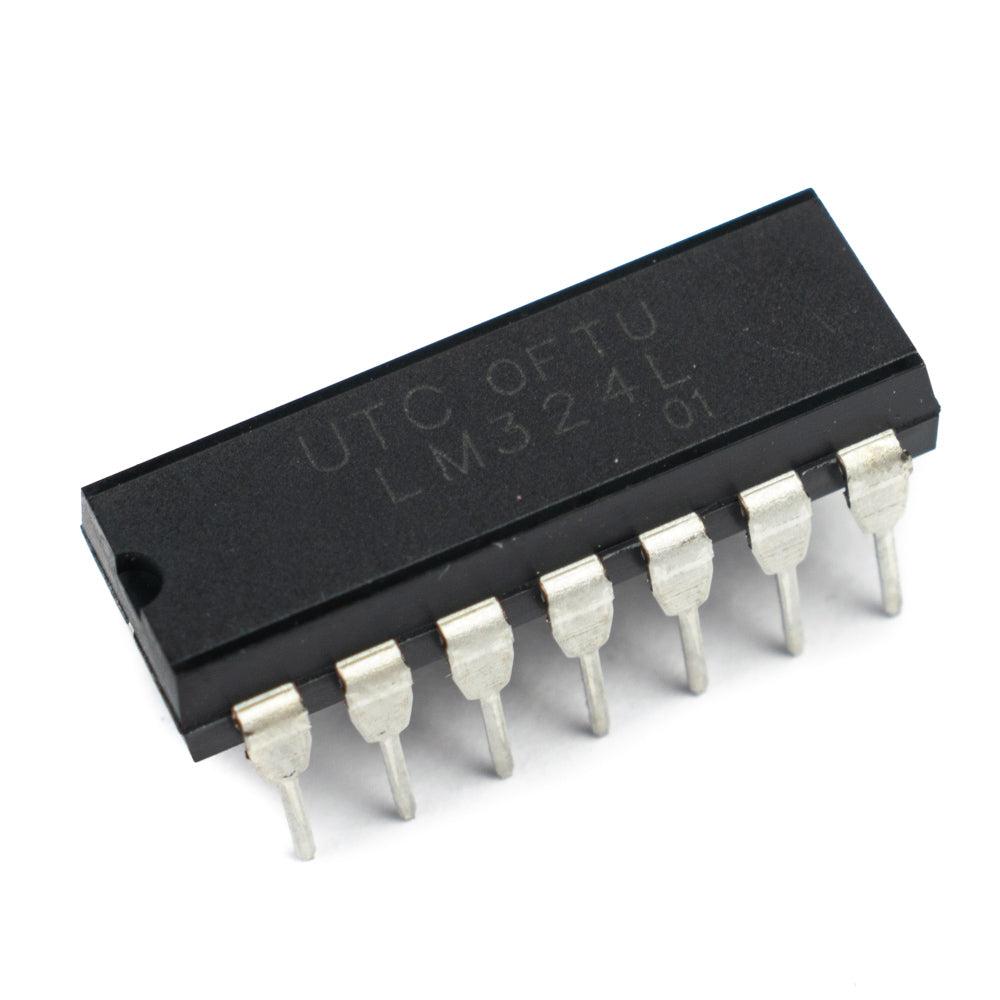

UTC LM324 Quad Operational Amplifiers (Pack of 30)
Free Shipping
For all orders over ₹ 1999
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Hotline Order:
Mon - Sat: 10AM - 07PM
+91 8929620302
The UTC LM324 consists of four independent, high gain internally frequency compensated operational amplifiers which are designed specifically to operate from a single power supply over a wide voltage range. Operation from split power supplies is also possible. Application areas include transducer amplifier, DC gain blocks and all the conventional OP amp circuits which now can be easily implemented in a single power supply system.
FEATURES
- Internally frequency compensated for unity gain.
- Large DC voltage gain :100dB.
- Wide operating supply range (Vcc=3V~40V).
- Input common-mode voltage includes ground.
- Large output voltage swing: From 0V to Vcc-1.5V.
- Power drain suitable for battery operation.
Specifications
| Model | LM324 |
| Brand | UTC |
| Supply Voltage | ±20V |
| Differential Input Voltage | ±40V |
| Power Dissipation | 800mW |
| Package | DIP-14 |
| Operating Temperature | -20°C to 85°C |
| Quantity | 100 |
| Country of Origin | China |
