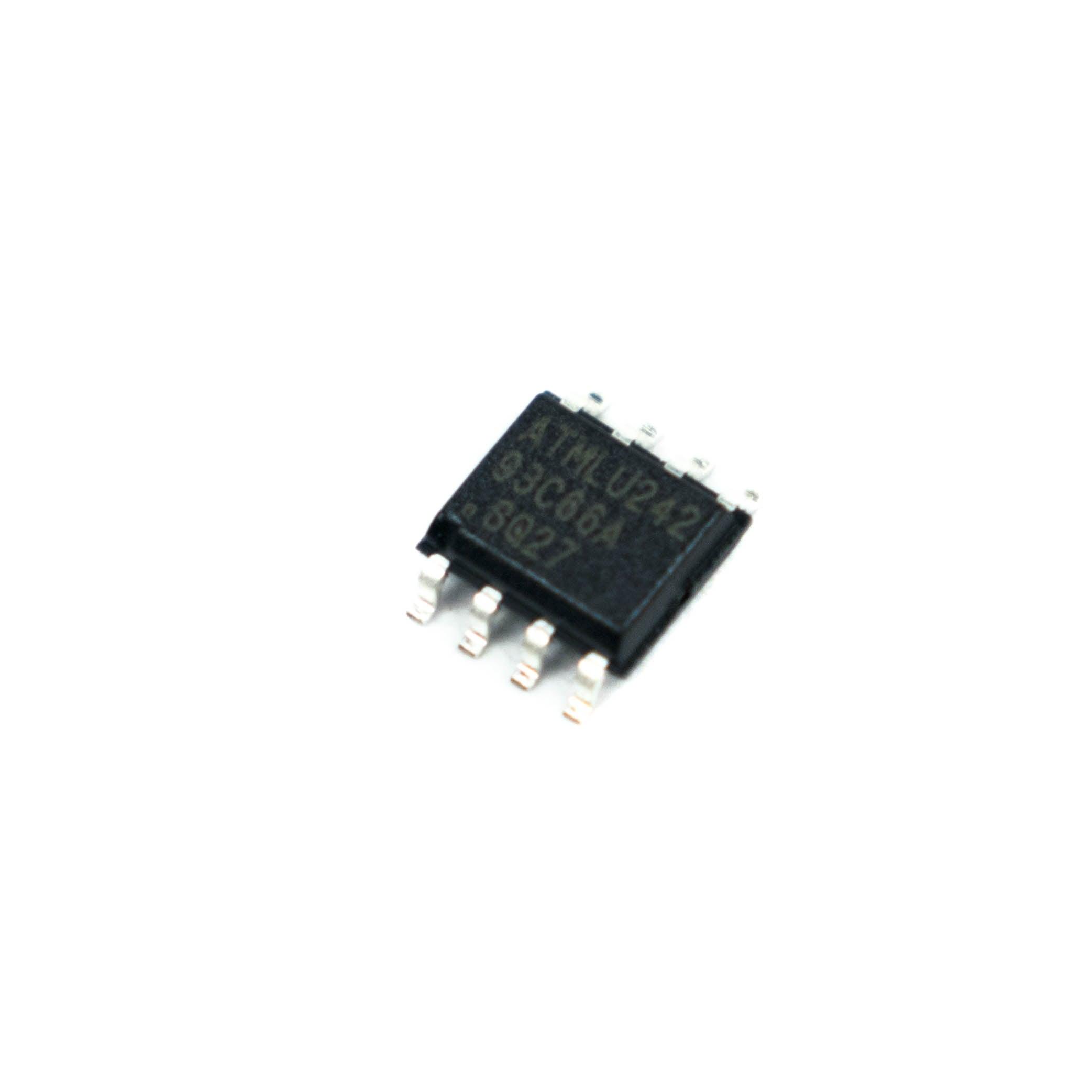

93C66 4Kb Serial EEPROM IC (Pack of 50)
Free Shipping
For all orders over ₹ 1999
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Hotline Order:
Mon - Sat: 10AM - 07PM
+91 8929620302
The 93C66 offers 256 words of 16 bits each and 512 words of 8 bits each, totaling 4096 bits of serial electrically erasable programmable read-only memory (EEPROM). The device has been designed with a variety of industrial and commercial applications in mind, where low-power and low-voltage operation are crucial.
Features
- Operating voltage - 2.7V to 5.5V
- Internal Organization – 4K: 512 x 8 or 256 x 16
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- Three-wire Serial Interface
Specification
| Model | 93C66 |
| Packaging type | SMD |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Memory Size | 4K bits |
| Operating voltage | 2.7V to 5.5V |
| Operating Temperature | -55°C to +125°C |
| Storage Temperature | -65°C to +150°C |
Current consumption Stand by Active |
30 μA at 5.0V 2- 3 mA at 5.5V |
| Country of Origin | China |
