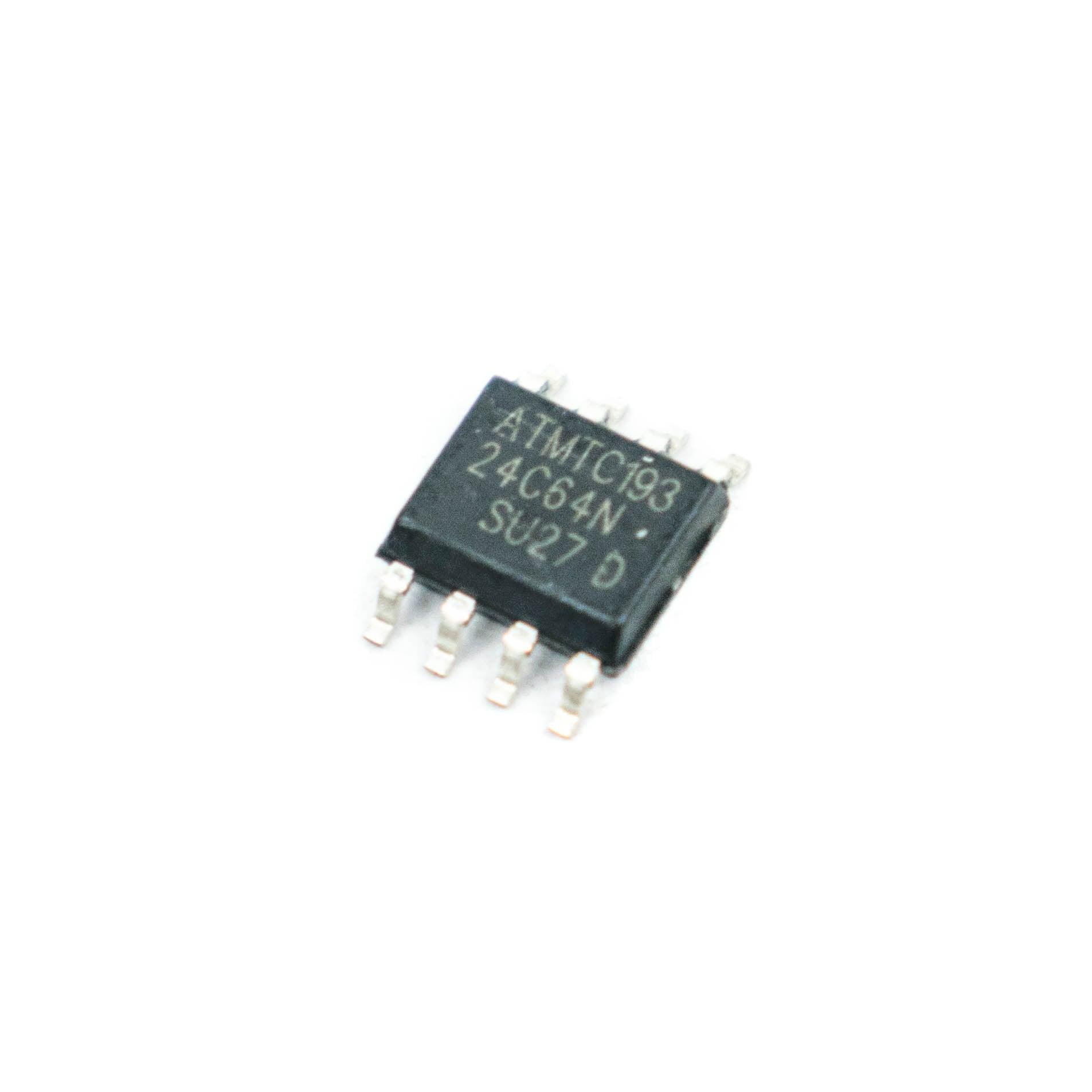

The 24C64 provides 65,536 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 8192 words of 8 bits each. The device’s cascadable feature allows up to 8 devices to share a common 2- wire bus. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. And it has a 2-wire serial interface.
Features:-
- 64K Memory, 8K x 8
- Two-Wire Serial Interface
- Write Protect Pin for Hardware Data Protection
- Wide Supply Voltage 2.7V to 5.5V
- Partial Page Writes Allowed
- Data Retention 100 years and 1 Million Write Cycles
Specification
| Model | 24C64 |
| Memory | 64K bits |
| Packaging type | SMD |
| Operating voltage | 2.7V to 5.5V |
| Operating Temperature | -55°C to +125°C |
| Storage Temperature | -65°C to +150°C |
Current consumption Stand by Active | 2 μA at 5.5V |
| Quantity | 100 |
| Country of Origin | China |
