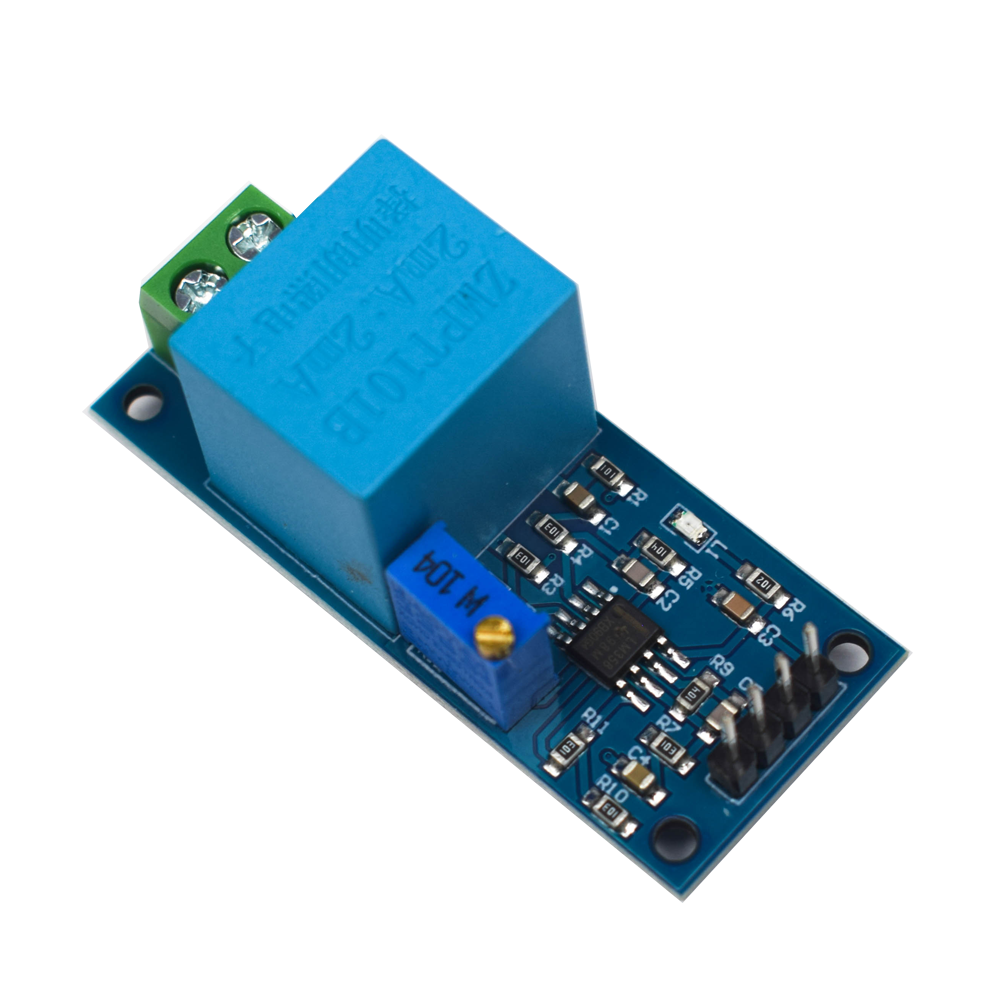

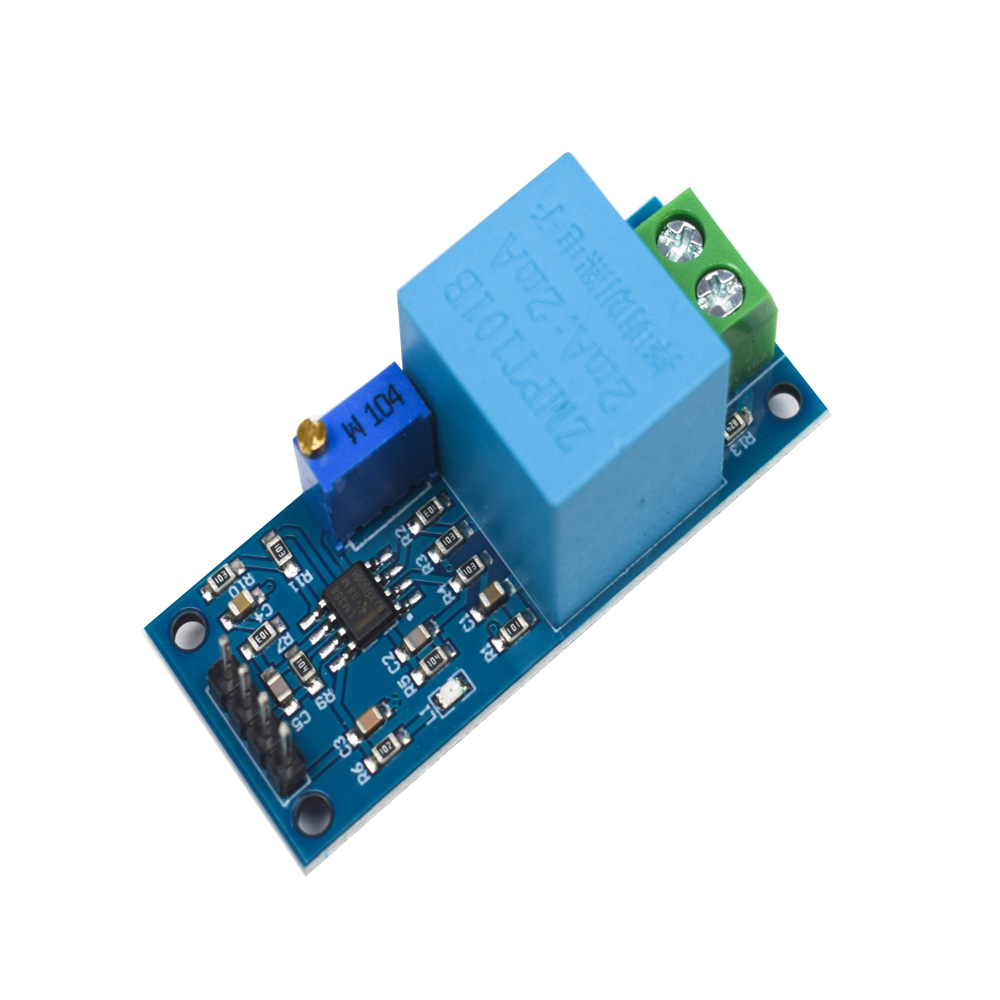

ZMPT101B AC Single Phase Voltage Sensor Module

This is an AC Single Phase Voltage Sensor Module. The ZMPT101B AC Voltage Sensor is ideal for DIY projects requiring accurate AC voltage measurement using a voltage transformer. This is an excellent choice for measuring AC voltage using an open-source platform such as Arduino/ESP8266/Raspberry Pi. This module can be measured within 250V AC voltage; the connected analog output can be adjusted.

Pinout

1. Pin 1 & 2 (AC Source)
2. Pin 3,4,5,6 (VCC, OUT, GND, GND)

Specifications
