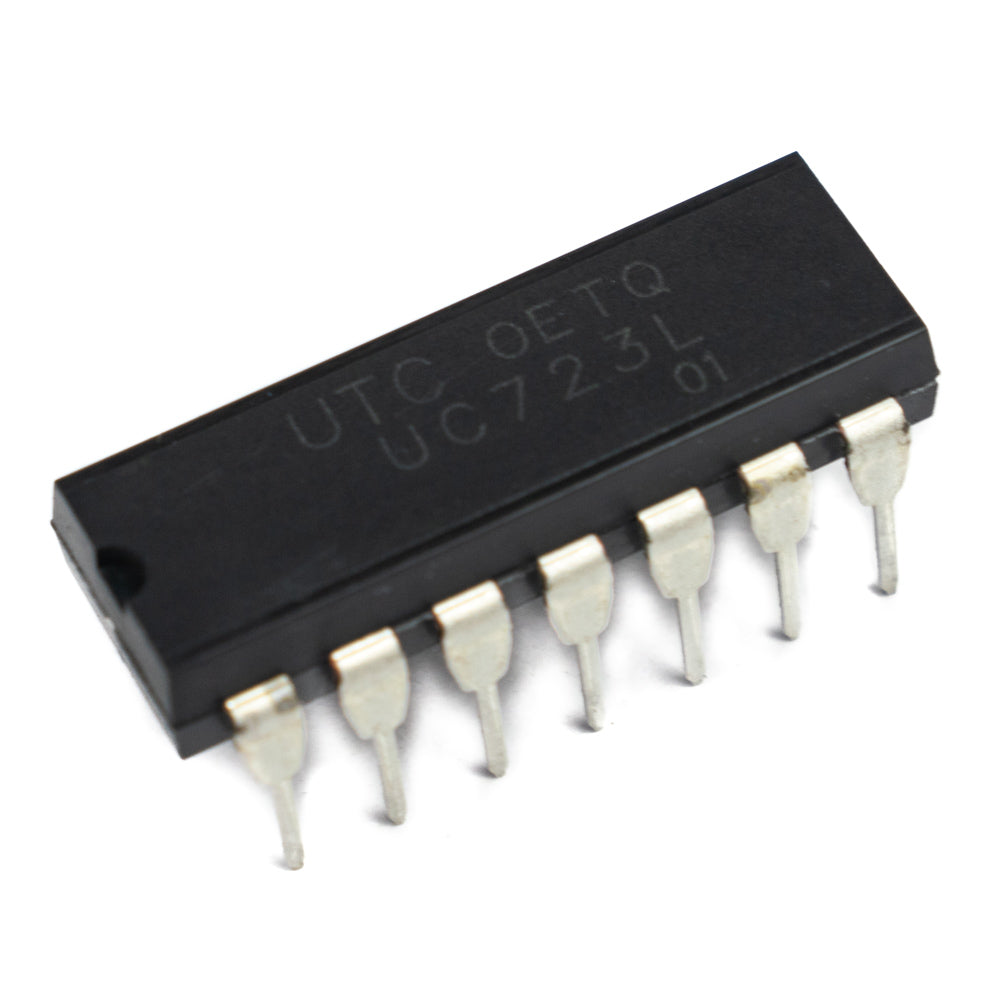

UTC LM723 Voltage Regulator IC (Pack of 5)

Product Title: UTC LM723 Voltage Regulator IC

The UTC LM723 is a highly versatile and reliable voltage regulator integrated circuit. It is designed to provide stable output voltages ranging from 2V to 37V, with a maximum output current of 150mA. This makes it suitable for a wide range of applications, from small electronic devices to larger power supplies.

One of the unique features of the UTC LM723 is its ability to regulate both positive and negative voltages, making it a versatile choice for various circuit designs. It also has a built-in temperature-compensated reference amplifier, error amplifier, power series pass transistor, and current-limiting circuit, ensuring precise and stable voltage regulation.

The LM723 offers excellent load and line regulation, with a maximum line regulation of only 0.03%. It also has built-in protection against short circuits, ensuring the safety of your circuit and components. With the use of suitable pass transistors, the LM723 can handle output currents of up to 10A, making it a powerful and reliable choice for your voltage regulation needs.

Specifications:

1. Model: LM723
2. Brand: UTC
3. Regulated Output Voltage: 5V
4. Line Regulation (��VIN = 3V): 0.5mV
5. Load Regulation (��IL = 50 mA): 1.5mV
6. Maximum Pulse Voltage from V+ to V- (50 ms): 50V
7. Maximum Continuous Voltage from V+ to V-: 40V
8. Maximum Input-Output Voltage Differential: 40V
9. Maximum Amplifier Input Voltage (Differential): 25mA
10. Package: TO264
11. Maximum Amplifier Input Voltage (Either Input): 8.5V
12. Quantity: 5
13. Country of Origin: China

Overall, the UTC LM723 is a high-quality and reliable voltage regulator IC that offers precise and stable voltage regulation for a wide range
