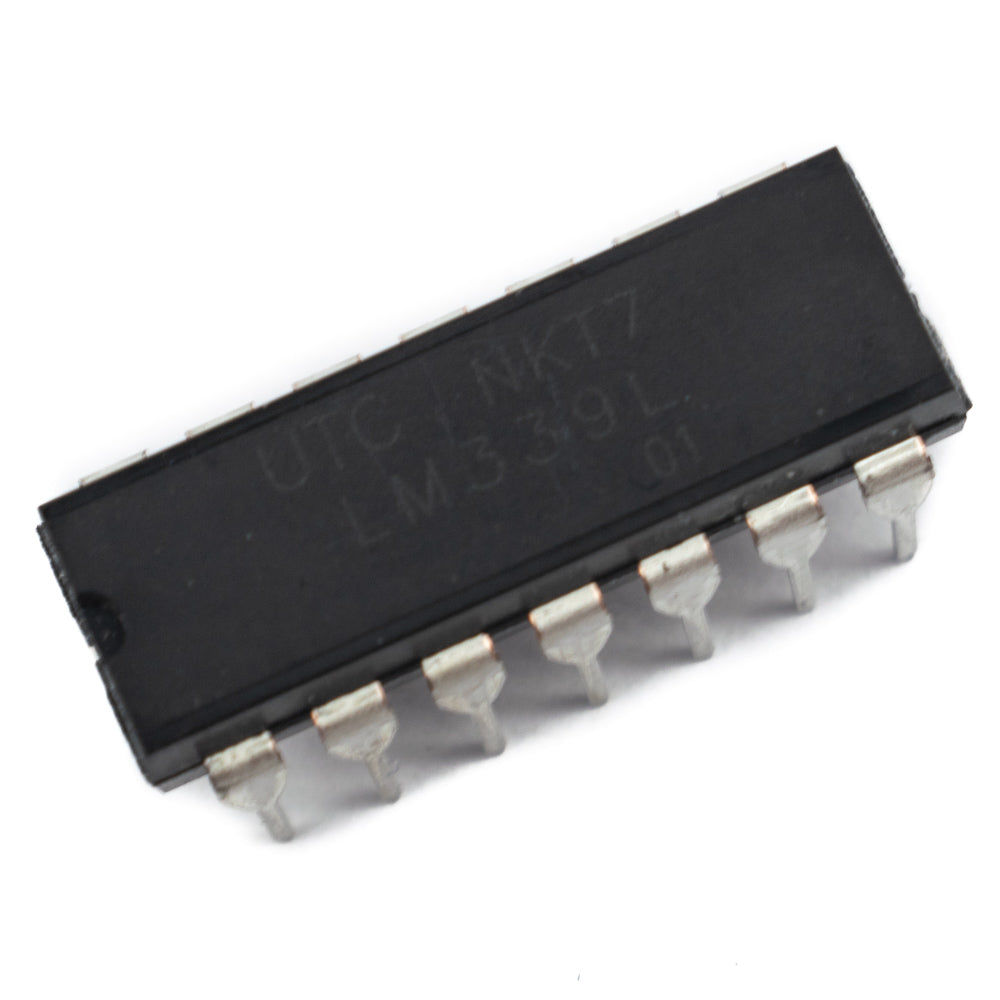

UTC LM339-N Low Power Low Offset Voltage Quad Differential Comparator(Pair of 2)

Product Title: UTC LM339-N Low Power Low Offset Voltage Quad Differential Comparator (Pack of 4)

The UTC LM339 is a reliable and versatile product that consists of four independent voltage comparators. It is designed to operate from a single power supply over a wide voltage range, making it suitable for a variety of applications. The comparators can also be operated from split power supplies and have a low power supply current drain that is independent of the power supply voltage. One unique feature of these comparators is that the input common-mode voltage range includes ground, even when operated from a single power supply voltage.

Some key features of the UTC LM339 include a wide supply voltage range of 2 to 36 VDC or ±1 to ±18 VDC, very low supply current drain of 0.8 mA, and low input biasing and offset currents. The offset voltage is ±3 mV and the input common-mode voltage range includes GND. The differential input voltage range is equal to the power supply voltage and the output saturation voltage is only 250 mV at 4 mA. The output voltage is compatible with various logic systems such as TTL, DTL, ECL, MOS, and CMOS.

The UTC LM339 is suitable for a range of applications including limit comparators, simple analog-to-digital converters (ADCs), pulse and squarewave generators, time delay generators, wide range VCOs, MOS clock timers, multivibrators, and high-voltage digital logic gates. It has a response time of 1400ns and a power dissipation of 760mW. This pack includes 4 LM339 comparators and is manufactured by Unisonic Technologies in China.

Specifications:

1. Model: LM339
2. Supply Voltage: ±18 or 36V
3. Package: DIP-14
4. Number of Channels: 4
5. Output Type: Open-collector, Open-drain
6. Response Time: 1400ns
7. Output Saturation Voltage: 400mV
8. Power Dissipation: 760mW</
