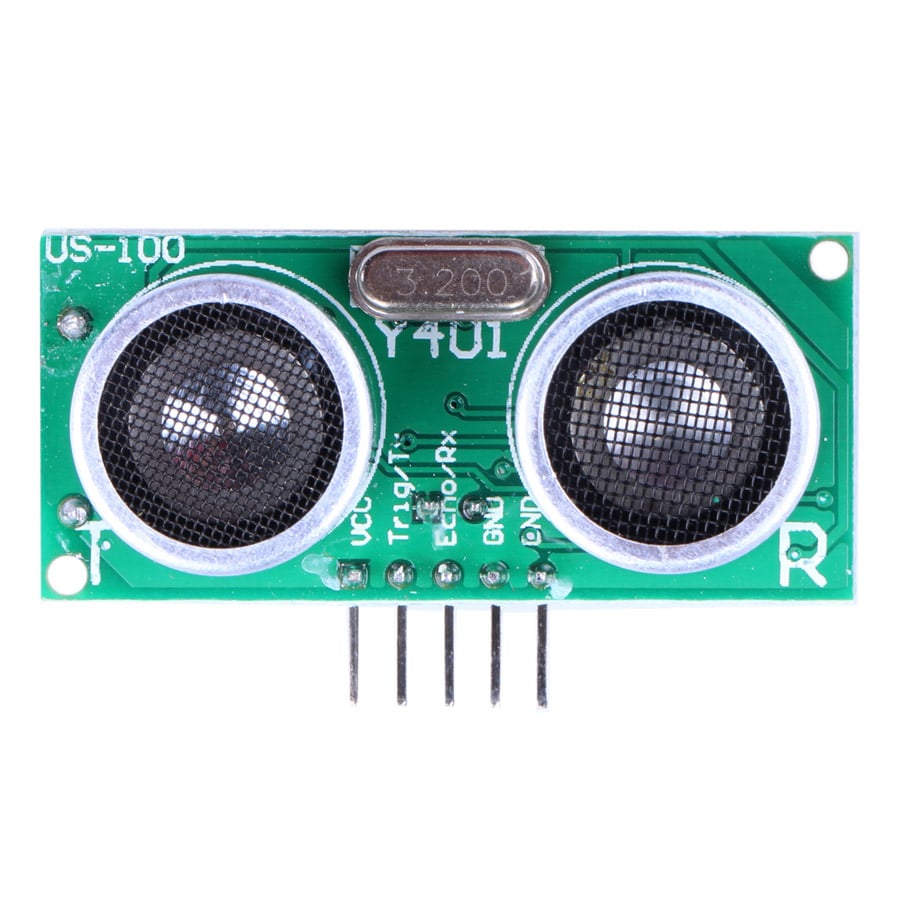

US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation

The **US-100 Ultrasonic Sensor** is a **highly efficient and versatile** distance measuring module, designed for use in **robotics, automation, and electronic projects**. Featuring **temperature compensation**, it ensures **precise and reliable distance measurements**, even in extreme environmental conditions.

Key Features

• Wide Voltage Range: DC **2.4V to 5V**
• Low Power Consumption: **Less than 2mA** average current
• Dual Output Modes: Supports **level or UART output** for flexibility
• Extended Detection Range: **2cm to 450cm** for both short and long-range measurements
• Temperature Compensation: Ensures **accurate readings** from **-20°C to +70°C**
• Wide Sensing Angle: **15°** coverage with a **16mm diameter sensor cover**
• Compact & Lightweight:
  • **PCB Size:** 45mm × 20mm
  • **Weight:** 9g

Why Choose the US-100 Ultrasonic Sensor?

This **high-performance sensor** is perfect for **precise distance measurements** in various applications such as **obstacle detection, object positioning, and automation projects**. With its **compact size and lightweight design**, it can be easily integrated into **Arduino, Raspberry Pi, and other microcontroller-based projects**.

Shipping Information

• Shipping Weight: 0.014kg
• Shipping Dimensions: 5cm × 3cm × 2cm

Order now at Electra Traders and enhance your automation projects with precise distance measurement technology!
