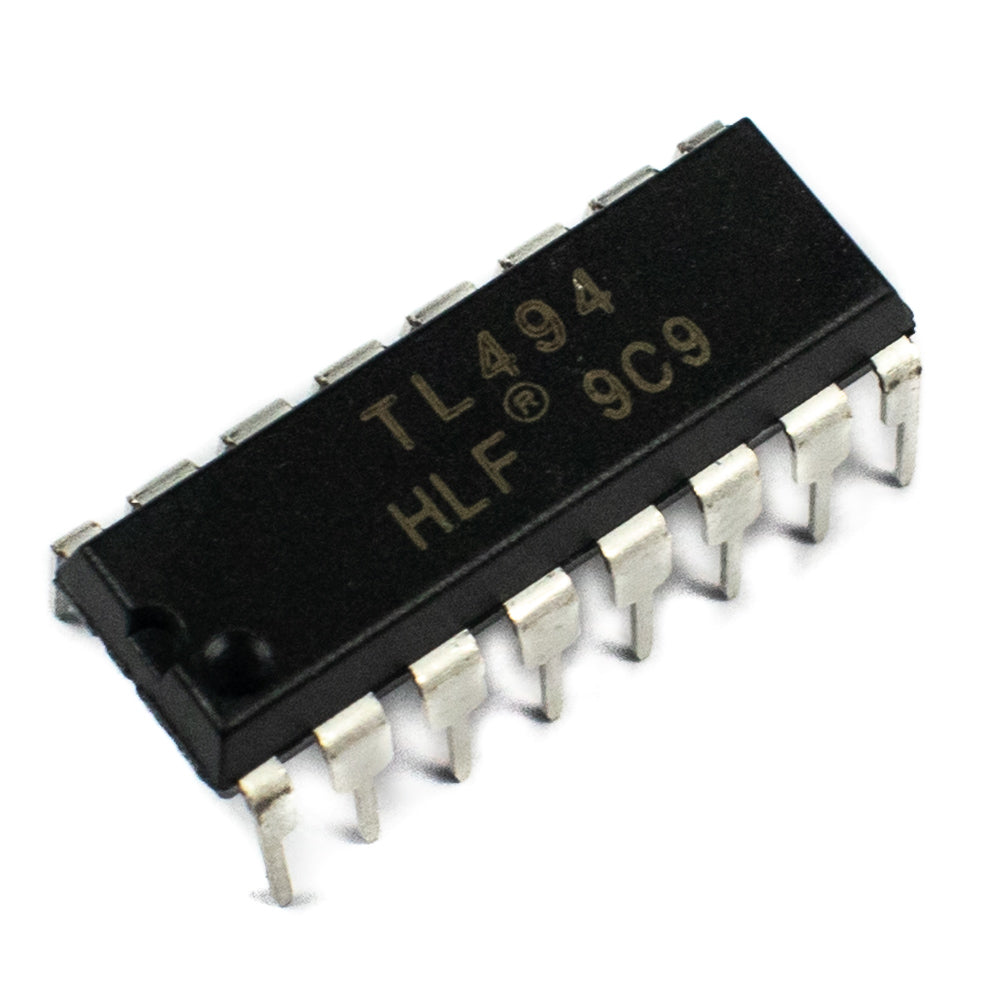

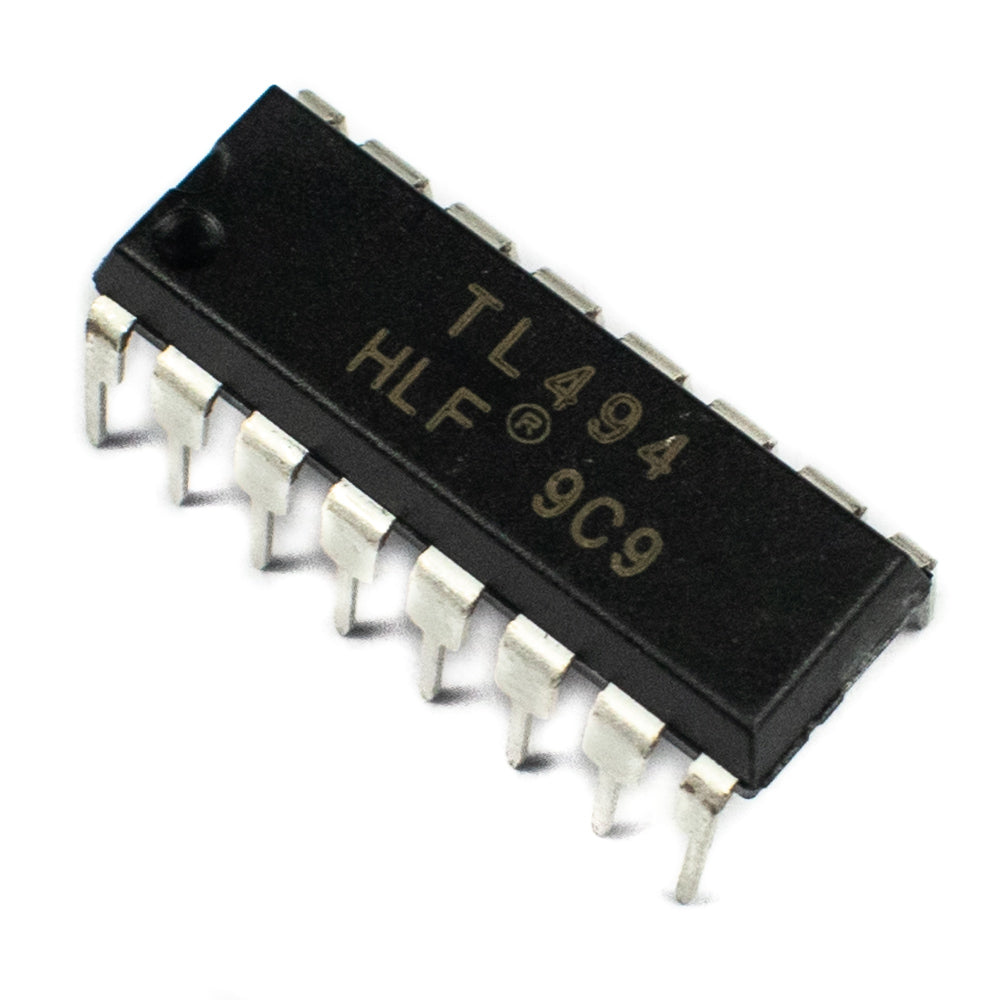

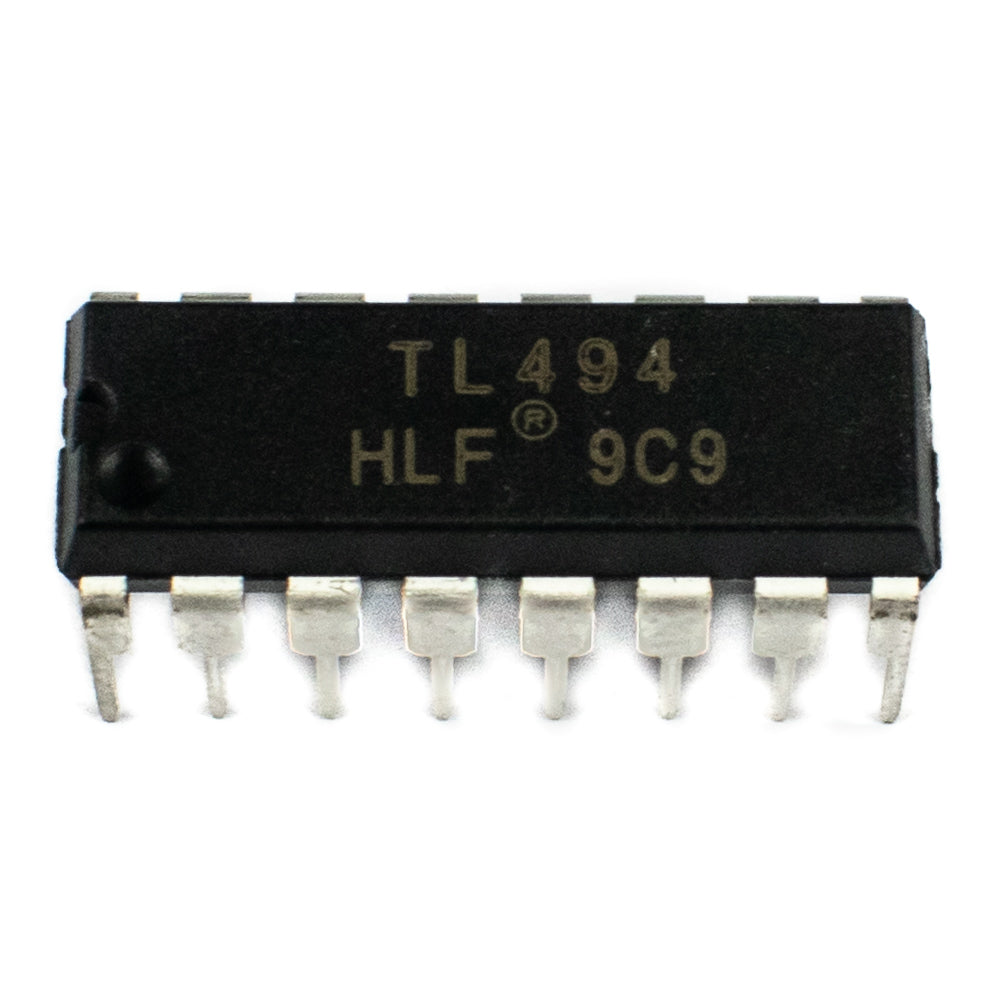

TL494 PWM Control IC (Pack of 50)
TL494 PWM Control IC (Pack of 50)
Regular price
Rs. 3,400.00
Regular price
Rs. 4,200.00
Sale price
Rs. 3,400.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
The TL494 is a fixed frequency, pulse width control circuit IC designed primarily for switched-mode power supply.
Features
- Complete Pulse Width Modulation Control Circuitry
- On-Chip Oscillator with Master or Slave Operation
- On-Chip Error Amplifiers
- On-Chip 5.0 V Reference
- Adjustable Deadtime Control
- Uncommitted Output Transistors Rated to 500 mA Source or Sink
- Output Control for Push-Pull or Single-Ended Operation
- Undervoltage Lockout
Specifications
| Operating Voltage | 42V DC |
| Collector Output Voltage | 42V |
| Collector Output Current | 500mA |
| Amplifier Input Voltage Range | -0.3V to 42V |
| Power Dissipation @ TA≤45°C | 1000mW |
| Thermal Resistance | 80°C/W |
| Operating Frequency | 1kHz to 300kHz |
| Number of Pins | 16 |
| Country of Origin | China |
