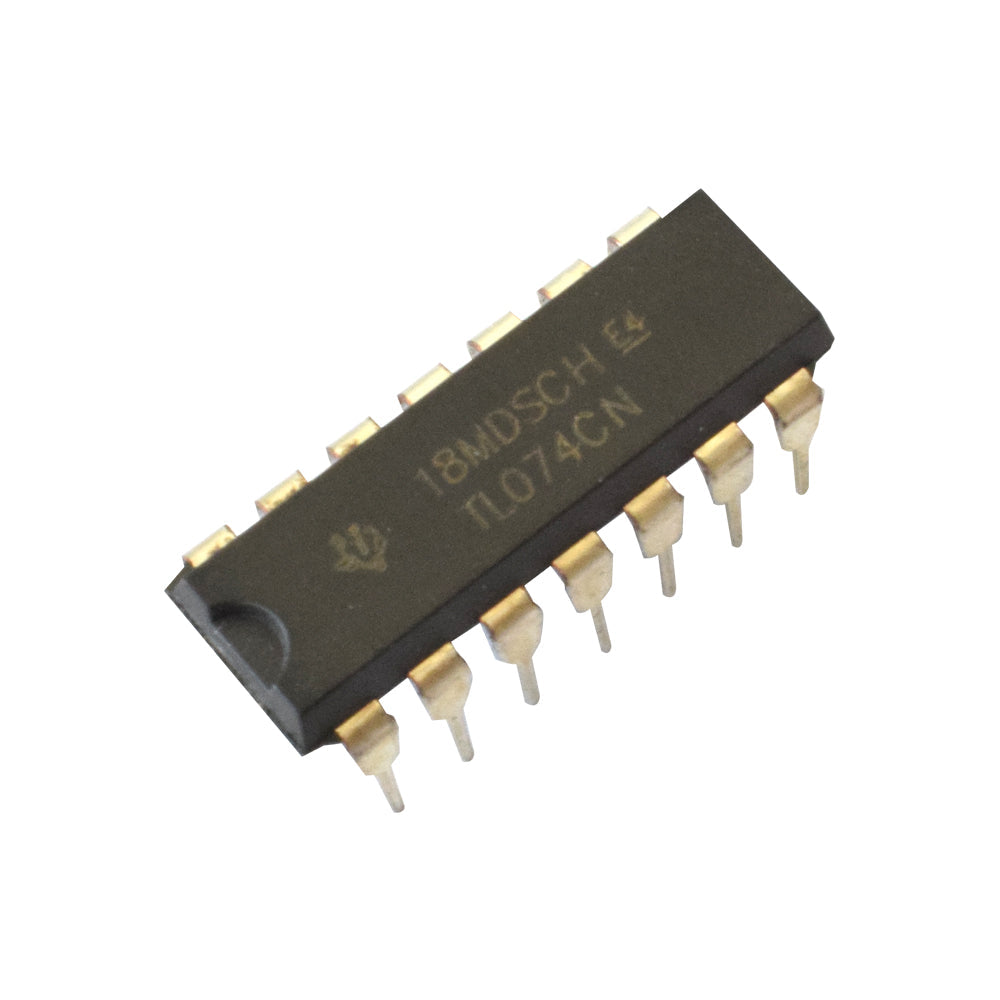

TL074CN Low Noise Operational Amplifier IC(Pair of 2)

Product Title: TL074CN Low-Noise Operational Amplifier IC (Pack of 3)

Introducing our latest product, the TL074CN Low-Noise Operational Amplifier IC. This pack of 3 monolithic integrated circuits combines two cutting-edge analogue technologies to provide high-quality performance. Each internally corrected operational amplifier features a well-matched high-voltage JFET input device for low input offset voltage. With BEFIT technology, these devices have low supply, input offset, and bias currents, allowing for wide bandwidths and quick slew rates.

These operational amplifiers are perfect for high-fidelity audio amplifier applications, thanks to their minimal harmonic distortion and noise. With a low supply current of only 1.4mA per amp, these devices are energy-efficient and cost-effective. The low harmonic distortion of 0.01% and high input impedance of 1012ohm make them ideal for a wide range of applications.

Here are some key features of the TL074CN Low-Noise Operational Amplifier IC:

1. Low Supply Current: 1.4 mA per Amp
2. Low Harmonic Distortion: 0.01% Typ
3. Low Input Bias and Offset Currents
4. High Input Impedance: 1012ohmTyp
5. Wide Gain Bandwidth: 4.0 MHz Typ

This IC comes in a 14DIP package and has a supply voltage of 18V. The total power dissipation is 680mW, and it has an operating and storage temperature range of -55°C to 150°C. Made in China, this product is of high quality and reliability.

Upgrade your audio amplifier with the TL074CN Low-Noise Operational Amplifier IC. Order now and experience superior performance and efficiency.
