Texas Instruments TL2843 Current-Mode PWM Controller IC SMD

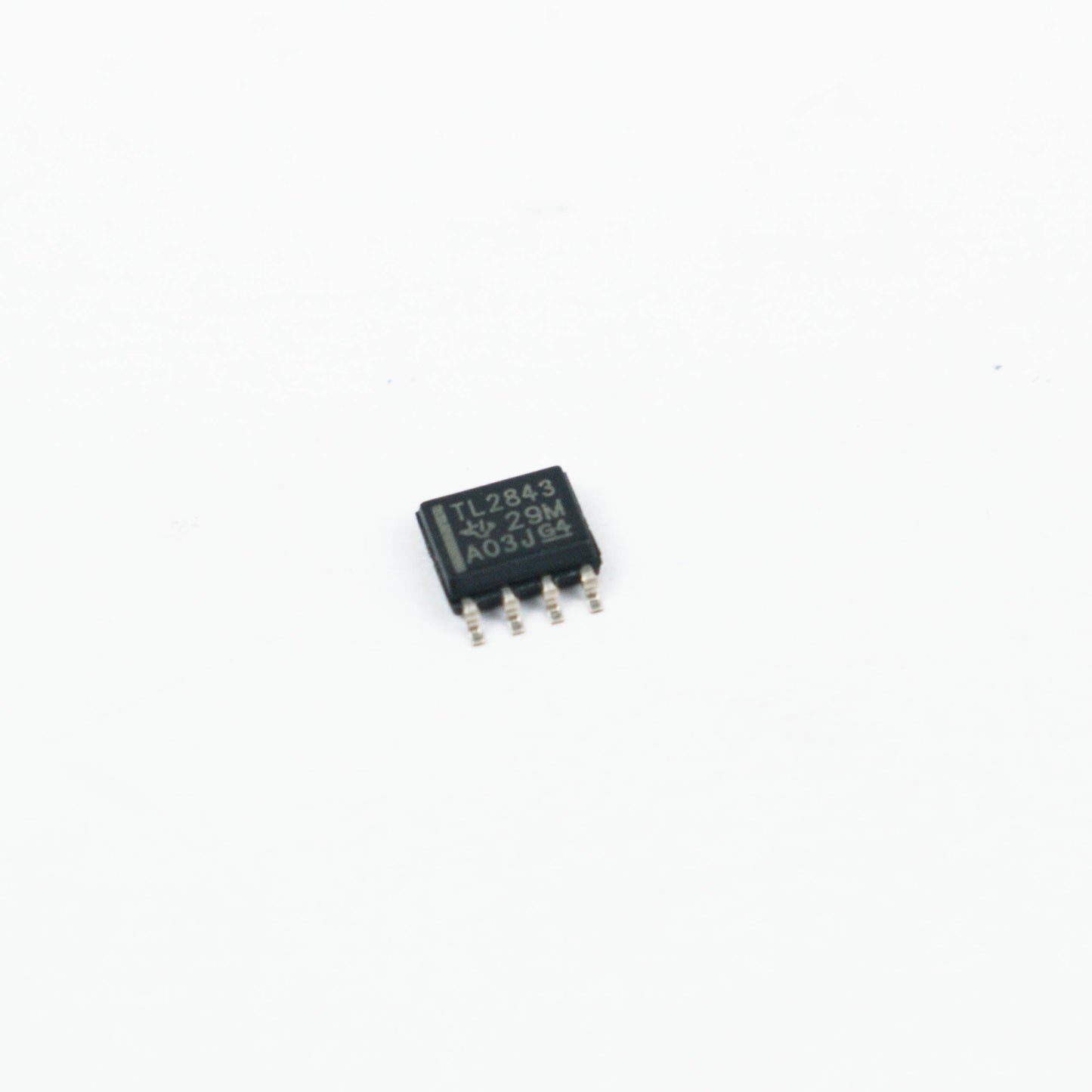

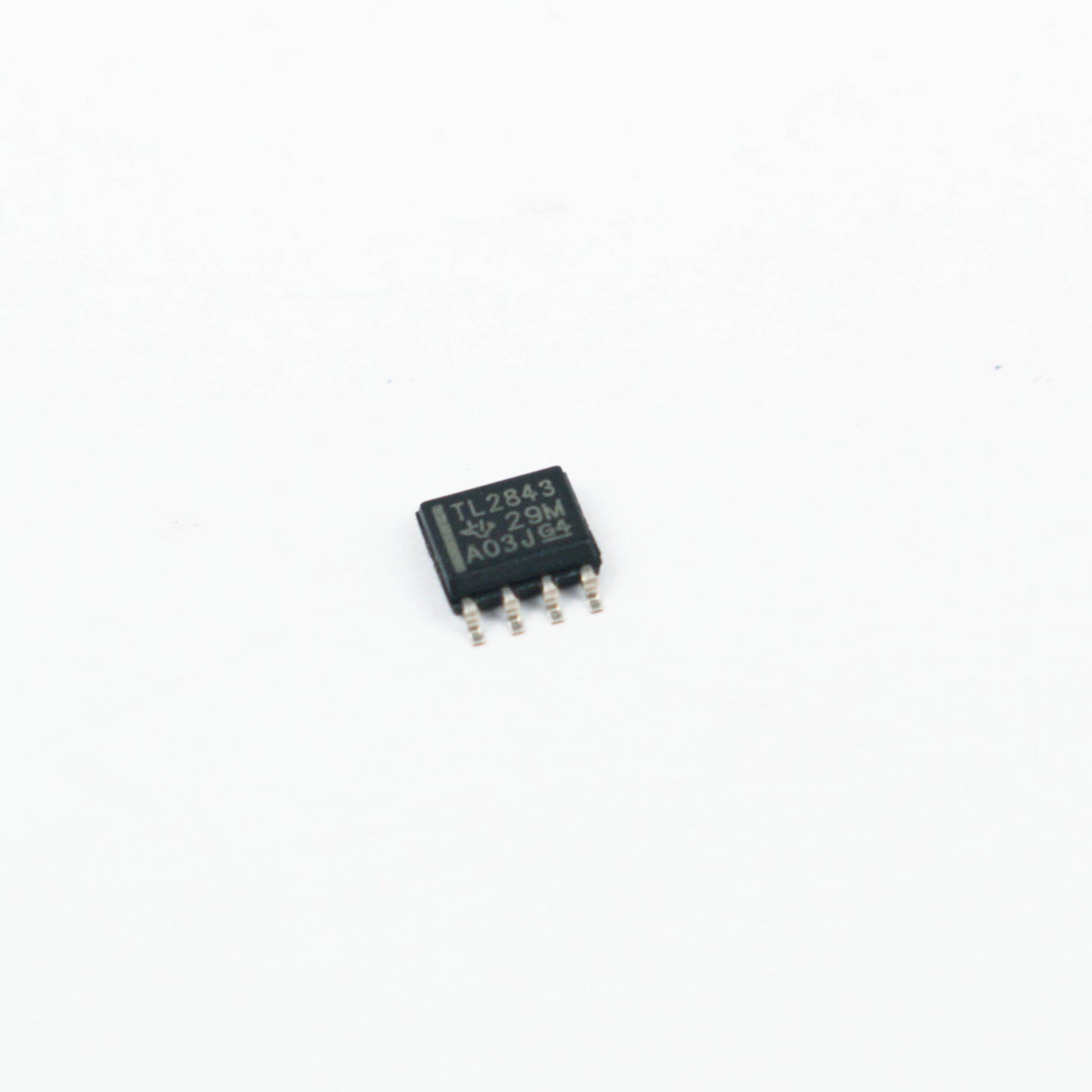

Product Title: Texas Instruments TL2843 Current-Mode PWM Controller IC (SMD Package)

The TL2843 family of control integrated circuits is designed for off-line or DC-to-DC fixed-frequency current-mode control schemes with minimal external components. It features an undervoltage lockout (UVLO) with a start-up current of less than 1 mA and a precision reference trimmed for accuracy at the error amplifier input. Other internal circuits include logic for latched operation, a pulse-width modulation (PWM) comparator for current-limit control, and a totem-pole output stage capable of sourcing or sinking high-peak current. The output stage is low when in the off state.

Features:

1. Optimized for Off-Line and DC-to-DC Converters
2. Low Start-Up Current (< 1 mA)
3. Automatic Feed-forward Compensation
4. Pulse-by-Pulse Current Limiting
5. Enhanced Load-Response Characteristics
6. Undervoltage Lockout with Hysteresis
7. Double-Pulse Suppression
8. High-Current Totem-Pole Output
9. Internally Trimmed Bandgap Reference
10. 500-kHz Operation
11. Error Amplifier with Low Output Resistance

Applications:

1. Switching Regulators of Any Polarity
2. Transformer-Coupled DC/DC Converters

For more information, please refer to the datasheet specifications. This model is manufactured by Texas Instruments and is a PWM controller in SMD package style. It has a supply voltage of 30V and a supply current of 30mA. The maximum frequency is 500kHz and it can operate in a temperature range of -40°C to 85°C. It can be stored in a temperature range of -65°C to 150°C and is made in China.
