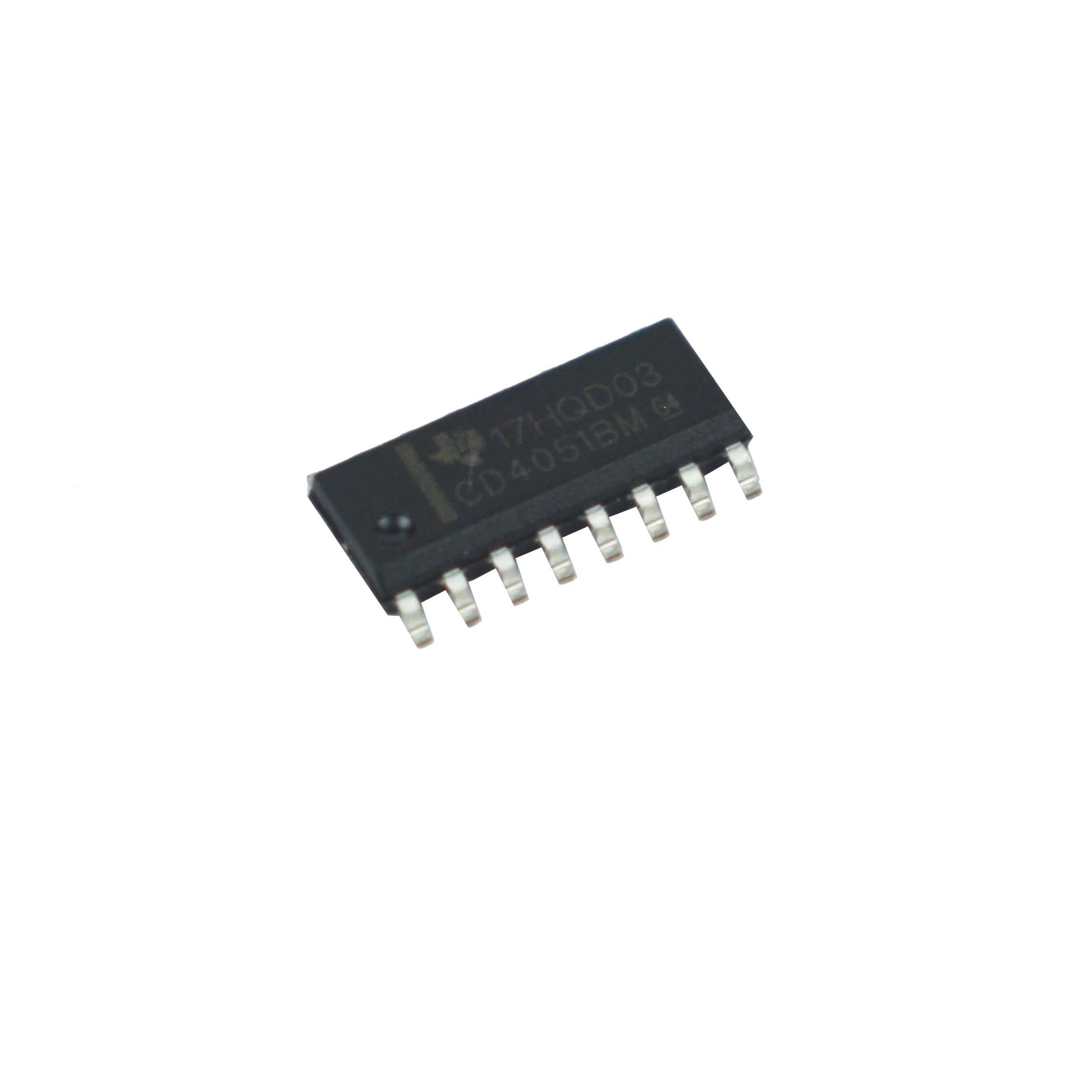

Texas Instrument CD4051BM 20-V Analog Multiplexer 16-SOIC (Pack of 50)
Hotline Order:
Mon - Sat: 10AM - 07PM
+91 8929620302
Product Title: Texas Instrument CD4051B 20-V Analog Multiplexer 16-SOIC(SMD Package)
Texas Instrument CD4051BM is a 20-V, 8:1, 1-channel Analog Multiplexer with logic level conversion 16-SOIC(SMD Package). The CD4051B analog multiplexers are digitally controlled analog switches with very low OFF leakage current and low ON impedance. It is a surface mount(SMD) active component with 16-Pin. These multiplexer circuits consume very little quiescent power across the entire VDD - VSS and VDD - VEE supply voltage ranges, despite the logic state of the control signals.
Features
- Wide Range of Digital and Analog Signal Levels
- Digital: 3 V to 20 V
- Analog: ≤ 20 VP-P
- Low ON Resistance, 125 Ω (Typical)
- Over 15 VP-P Signal Input Range for VDD – VEE = 18 V
- High OFF Resistance, Channel Leakage of±100 pA (Typical) at VDD – VEE = 18 V
- Binary Address Decoding on Chip
Applications
- Analog and Digital Multiplexer and Demultiplexer
- A/D and D/A conversion
- Consumer Audio Sensors
- Programmable Logic Controller
Specifications
- Model: CD4051BM
- Brand: Texas Instrument
- Mounting Type: SMD
- Package: SOIC
- No. of Pin: 16
- Max Supply Voltage: 20V
- Storage Temperature: -65~150°C
- Operating Temperature: -55~125°C
- Bandwidth(MHz): 20MHz
- Input/Output Continuous Current
