Stead 100 Ohm 50W Wire Wound Potentiometer Resistor

Product Title: 50W 100 Ohm Wire Wound Potentiometer Resistor

Product URL: https://www.electratraders.com/products/stead-100-ohm-50w-wire-wound-potentiometer-resistor

Description:

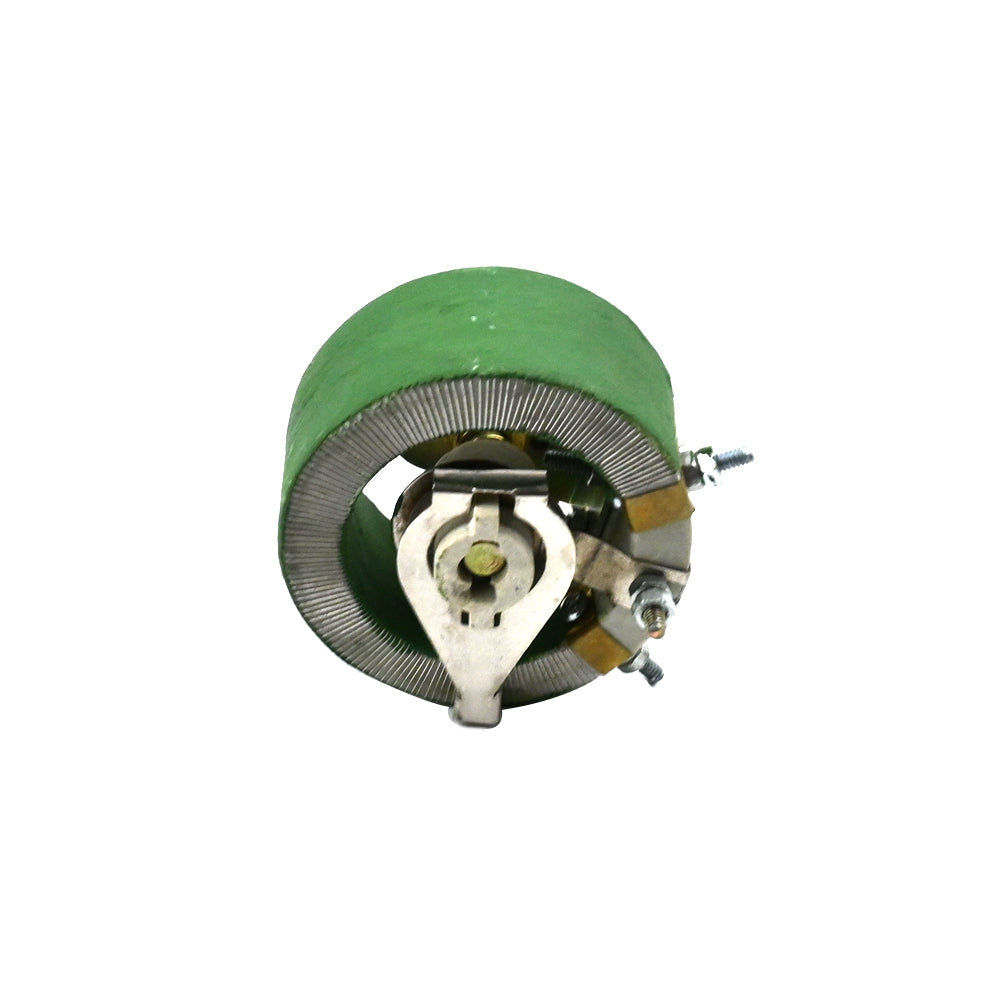

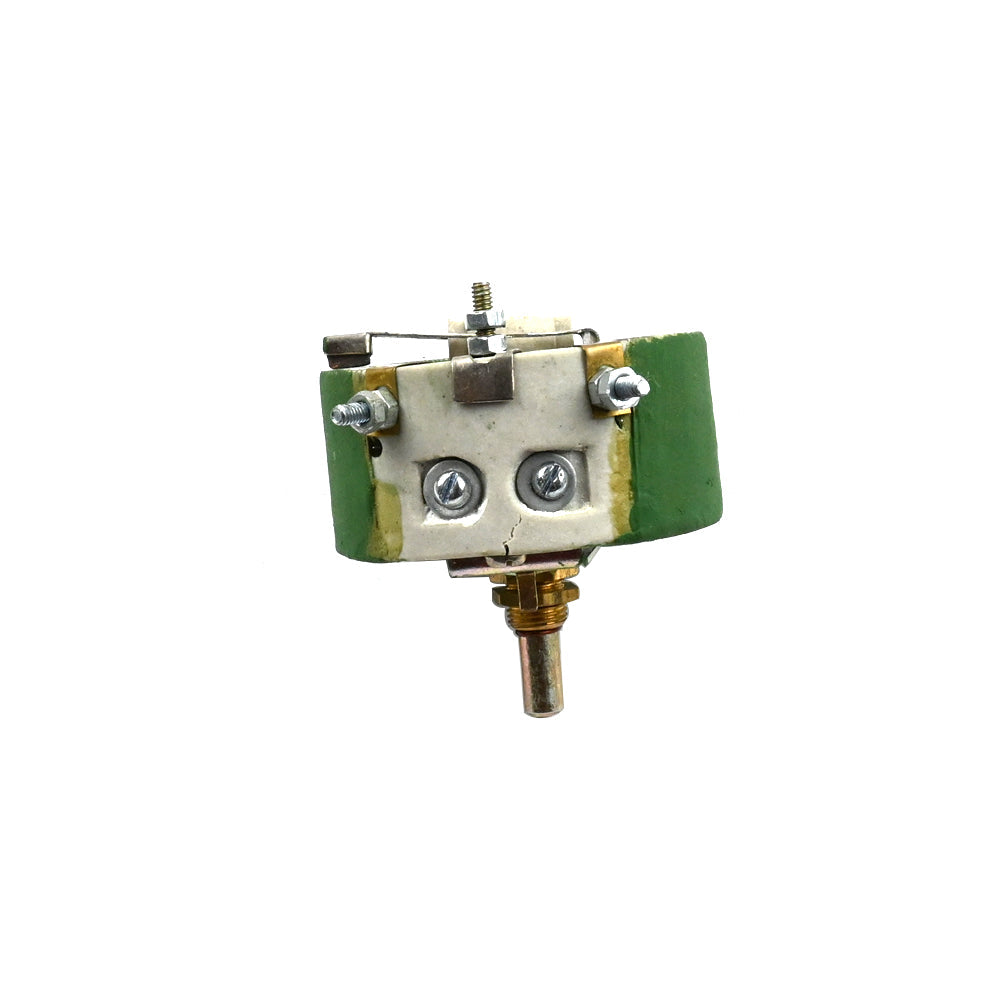

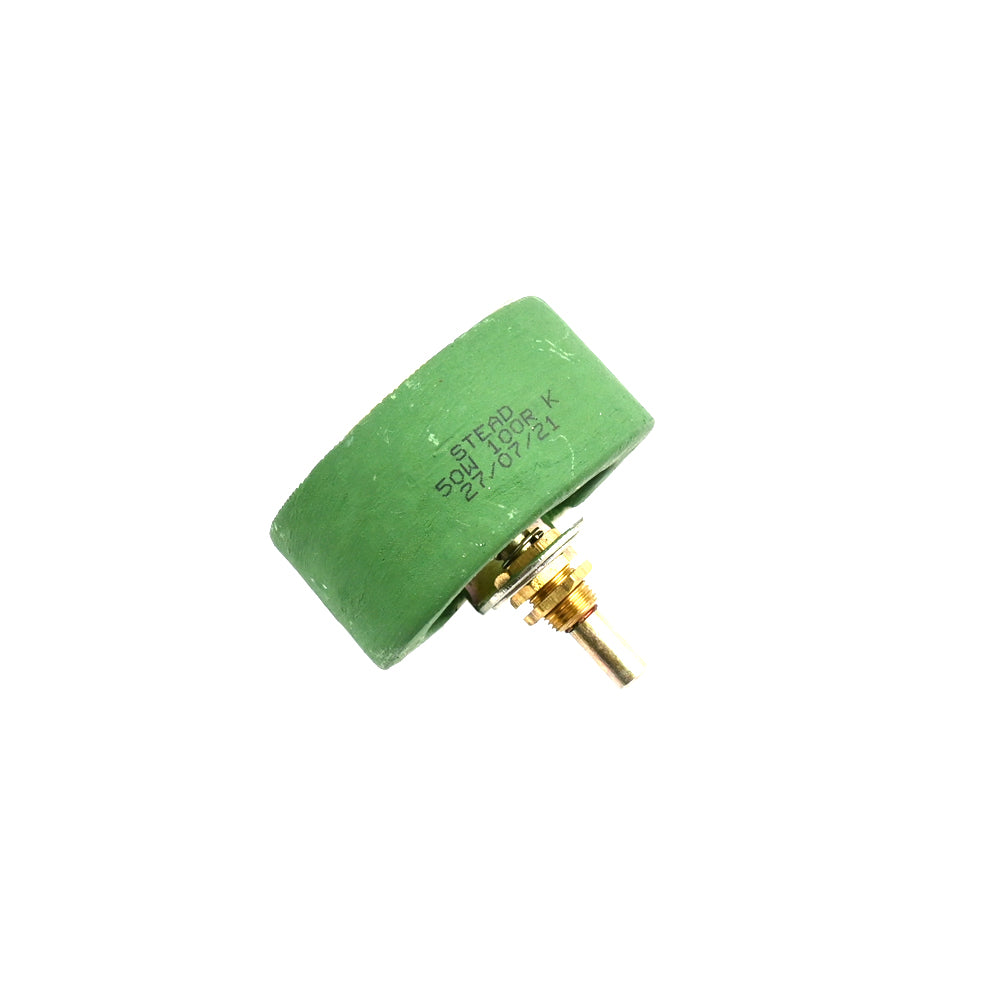

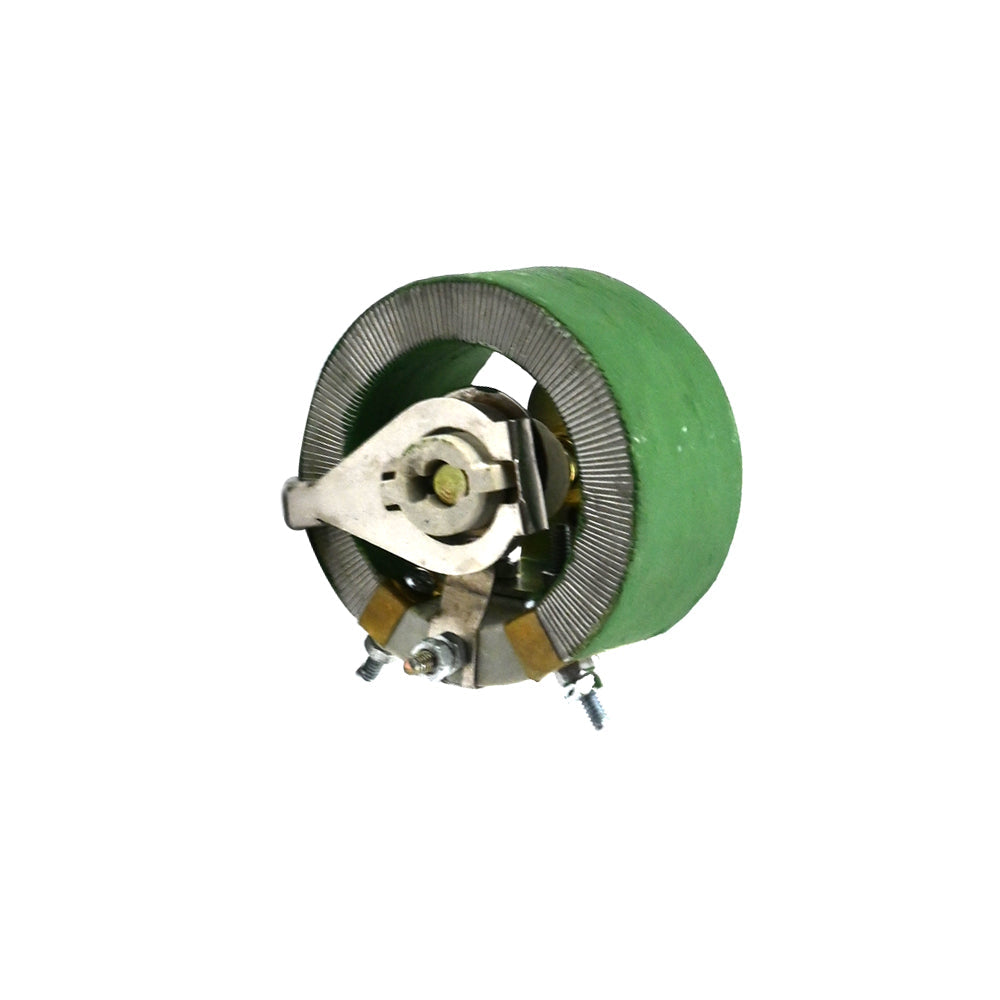

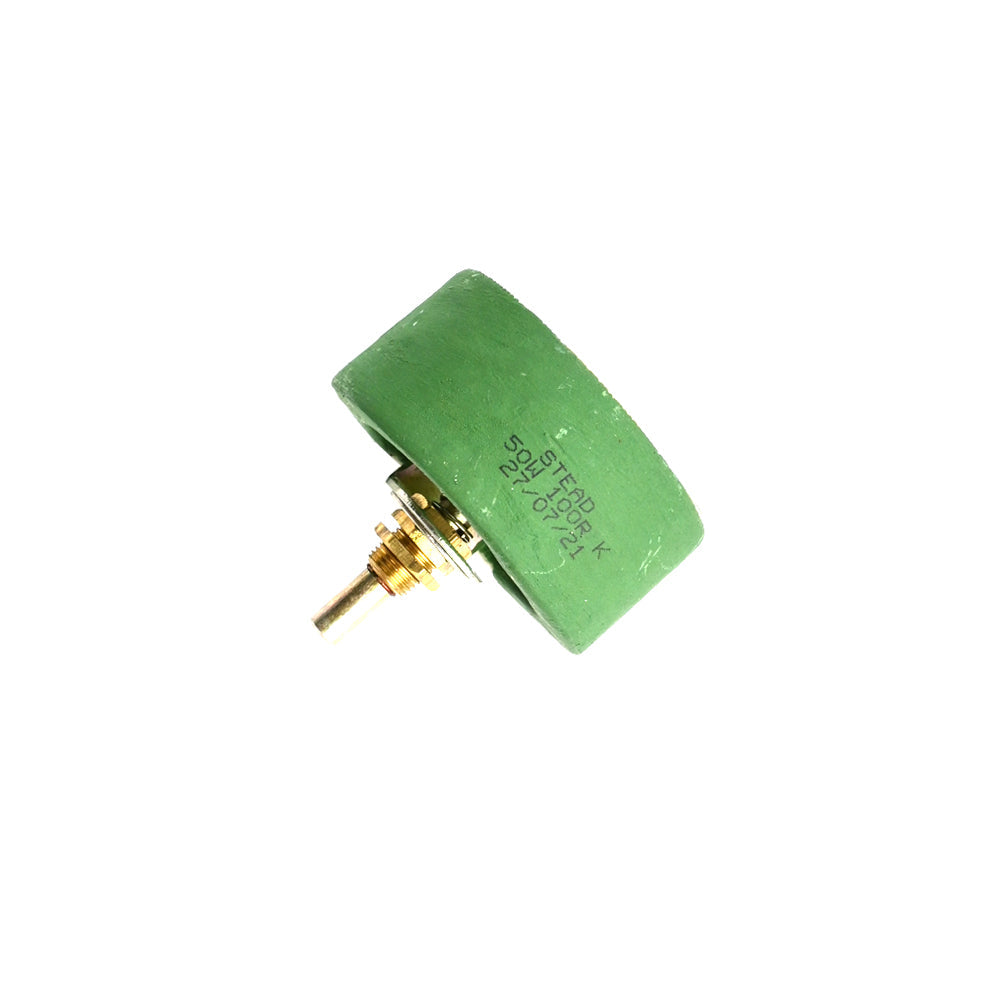

This 50W 100 Ohm wire wound variable rotary Potentiometer resistor is a unique and versatile product. Its resistive part is rotary, with a wiper mounted on a shaft that can change the length and resistance when rotated. This allows for precise control of the electrical resistance in a circuit without interrupting the current flow. The ceramic and wire wound assembly is covered by silicone, making it durable and long-lasting. With three screw terminals, this Potentiometer is easy to install and use. It is constructed with a ceramic core and can handle high voltage and current, making it suitable for a wide range of applications.

Features:

1. Rotary resistive part
2. High power (50W)
3. Hollow circular design with three screw terminals
4. Ceramic and wire wound assembly covered by silicone
5. Variable and adjustable wiper
6. Non-linear operation
7. Can handle high voltage and current
8. Suitable for high temperature environments

Specifications:

1. Model: 50W 100R
2. Material Type: Silicone coated
3. Type: Variable Rotary Potentiometer
4. Tolerance: 10%
5. Power: 50W
6. Resistance: 100 Ohm
7. Dimensions: 67.9*67.9mm
8. No. of Screw terminals: 3
9. Wiper diameter: 6.2mm
10. Screw diameter: 6.3mm
11. Country of Origin: China
