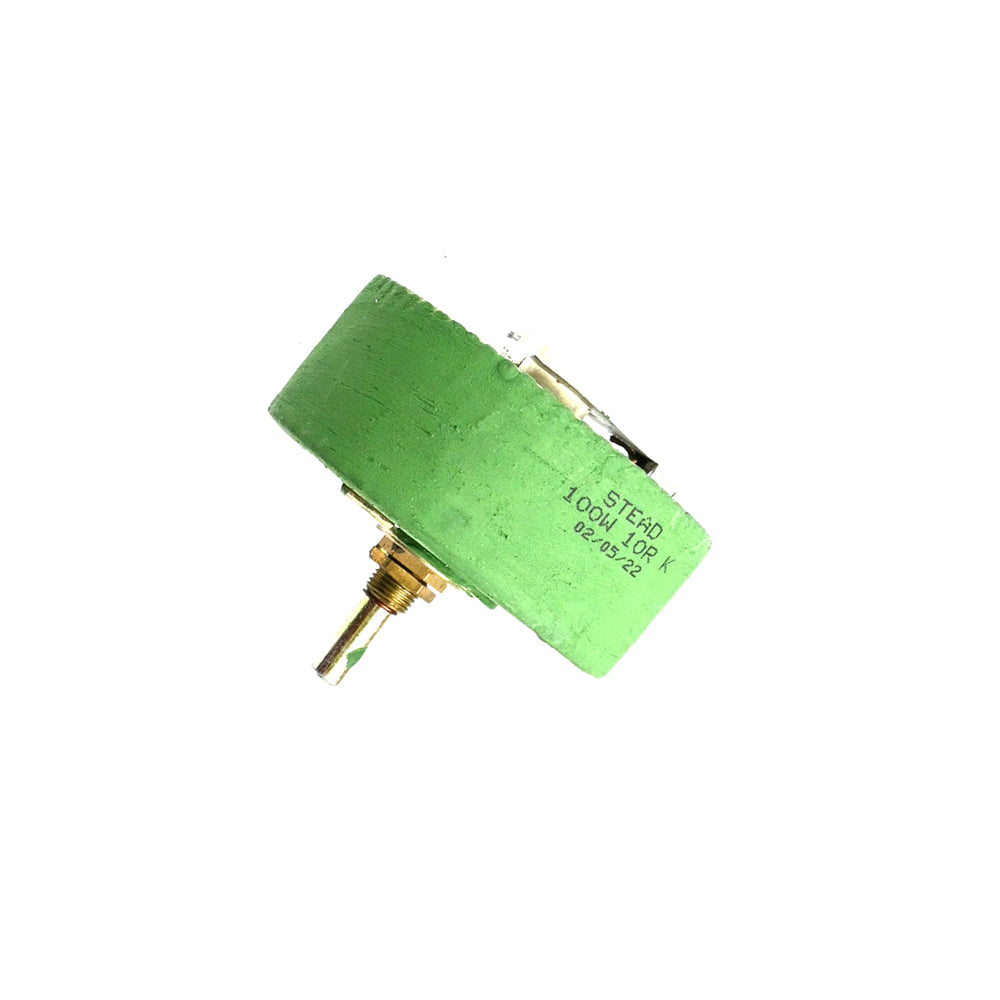

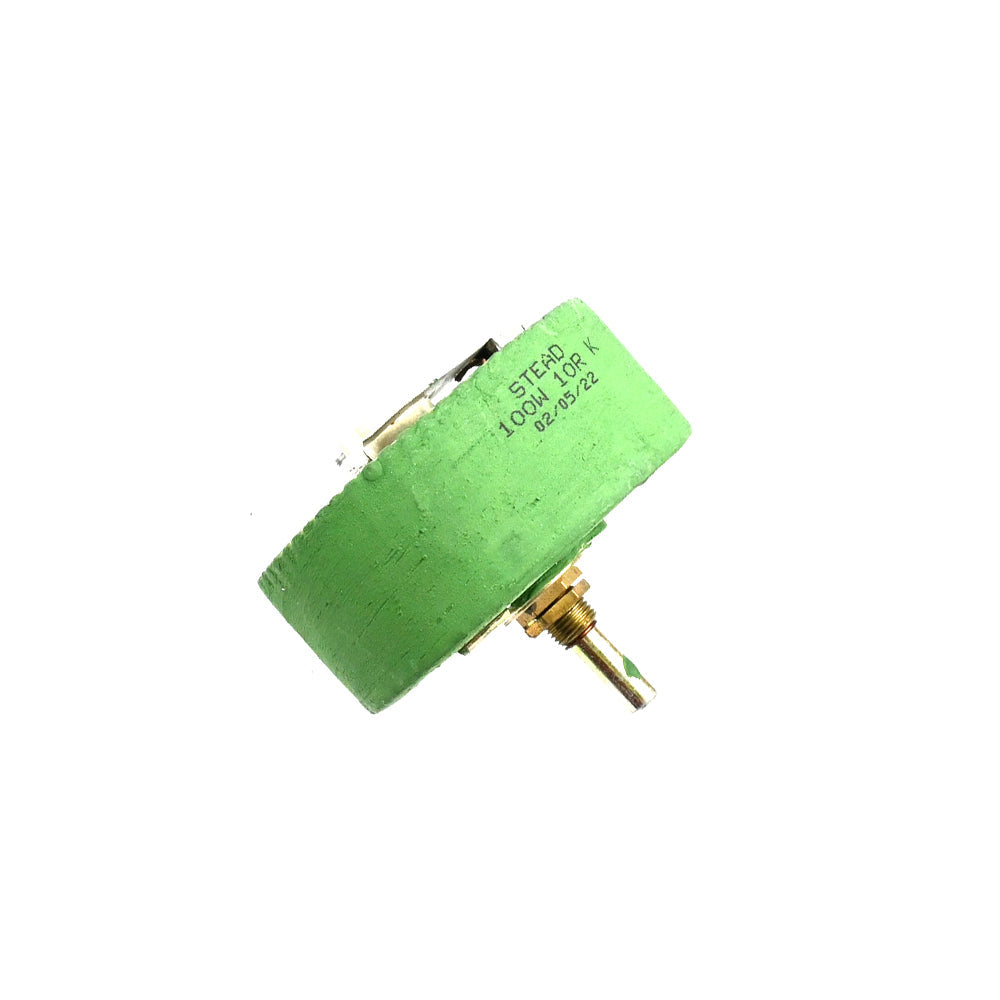

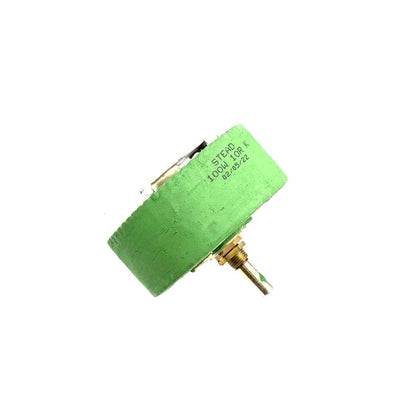

Stead 10 Ohm 100W Wire Wound Potentiometer Resistor

Product Title: 100W 10 Ohm Wire Wound Potentiometer Resistor

Product URL: https://www.electratraders.com/products/stead-10-ohm-100w-wire-wound-potentiometer-resistor

Description:

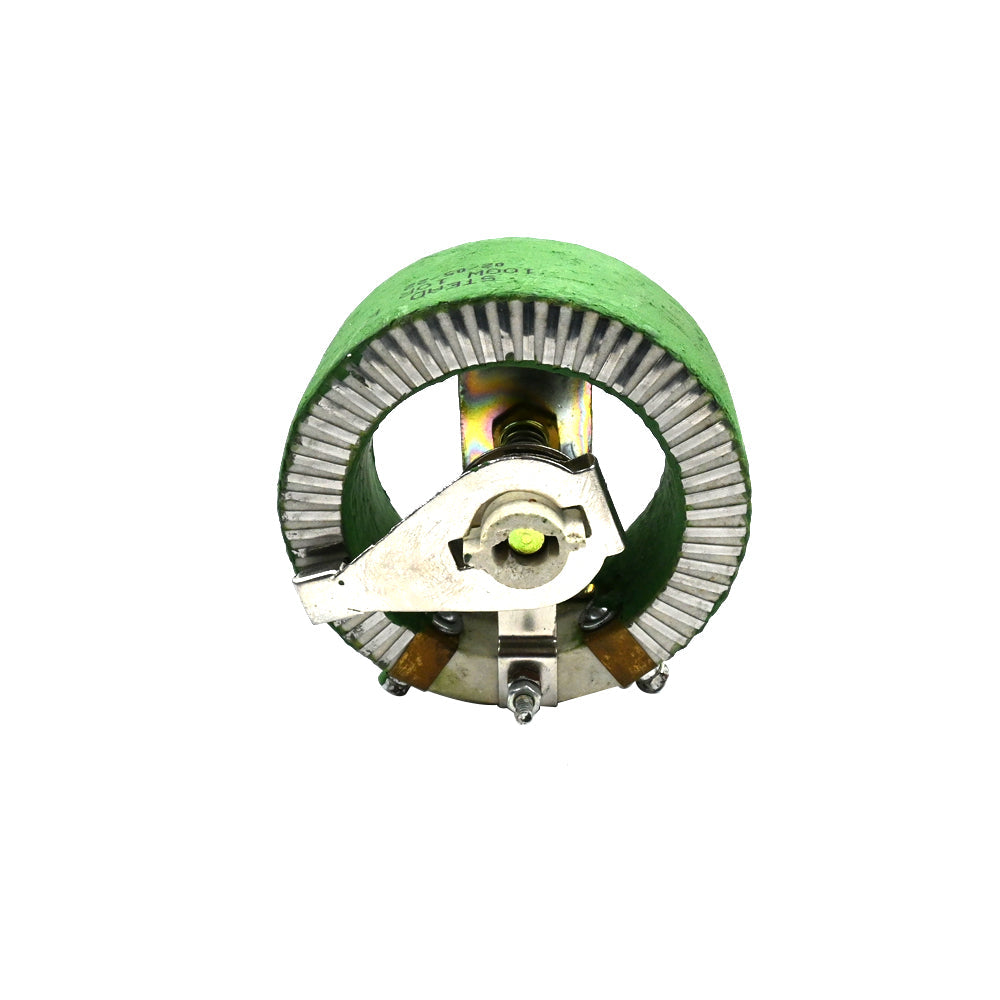

Introducing the 100W 10 Ohm wire wound variable rotary Potentiometer resistor. This unique resistor features a rotary resistive part, with a wiper mounted on a shaft that allows for easy adjustment of resistance. It is a versatile and essential component in any circuit, as it can control the electrical resistance without interrupting the current flow. The ceramic and wire wound assembly is covered by silicone, providing durability and protection. With three screw terminals, this Potentiometer is constructed with a ceramic core and is capable of handling high voltage and current.

Features:

1. Rotary resistive part
2. High power Potentiometer
3. Hollow circular design with three screw connections
4. Ceramic and wire wound assembly covered by silicone
5. Variable and adjustable wiper
6. Non-linear operation
7. Capable of handling high voltage and current
8. Widely used in high temperature applications

Specification:

1. Model: 100W 10R
2. Material Type: Silicone coated
3. Type: Variable Rotary Potentiometer
4. Tolerance: 10%
5. Power: 100W
6. Resistance: 10 Ohm
7. Dimensions: 71.3*78.5mm
8. No. of Screw terminals: 3
9. Wiper diameter: 6.1mm
10. Screw diameter: 5.4mm
11. Country of Origin: China
