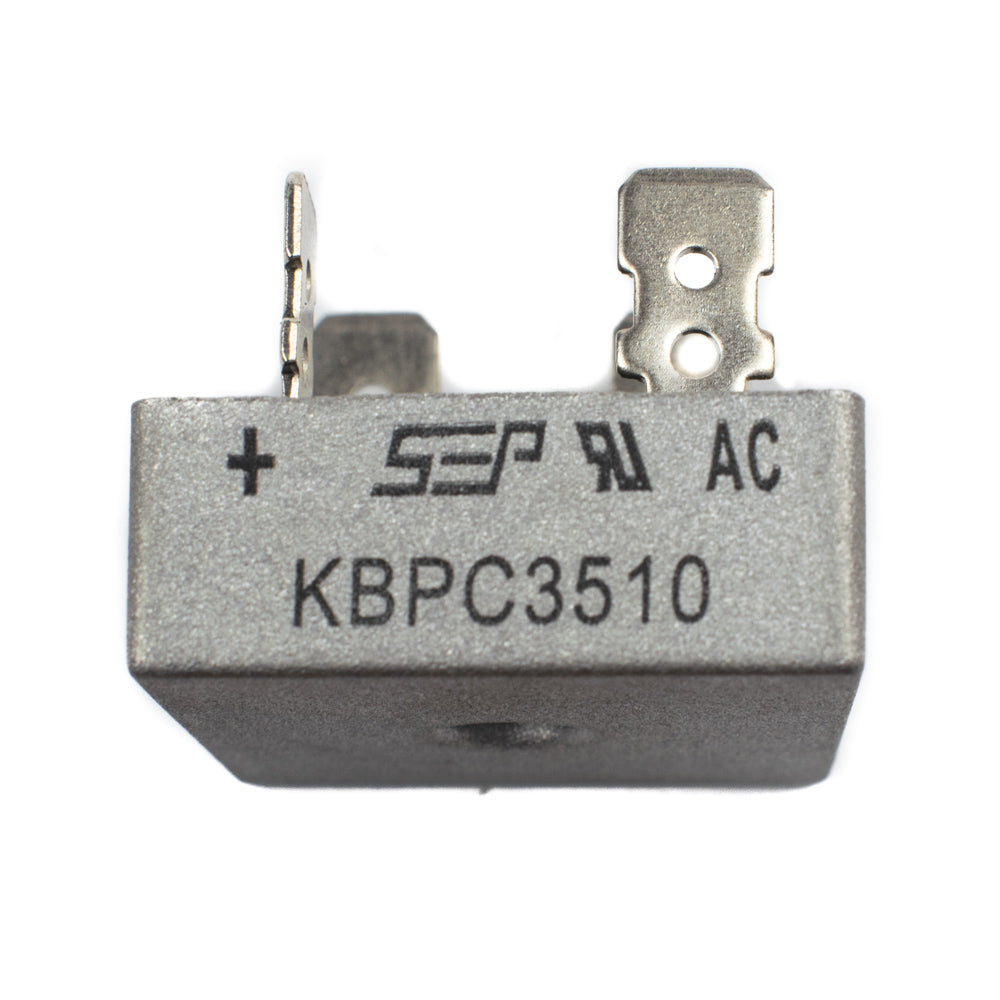

SEP KBPC3510 Bridge Rectifier Metal Case Diode

Product Title: SEP-KBPC3510 Bridge Rectifier Metal Case Diode

This product is a pack of 50 bridge rectifiers from the brand SEP. It is designed to provide reliable and efficient performance in various applications. The rectifiers have a surge overload capacity of 240-500 Amperes peak and a low forward voltage drop, making them suitable for both resistive and inductive loads. The electrically isolated base can withstand up to 2000 Volts, ensuring safety and protection. The rectifiers also have solderable 0.25' FAST ON terminals for easy installation.

One of the unique features of this product is its ability to operate at a wide range of temperatures, with a storage temperature of -55 to +150 degrees Celsius and a junction temperature of -55 to +125 degrees Celsius. The materials used in the rectifiers are UL recognized, ensuring high quality and reliability. The product is also designed with a DIP package and can be mounted in any position.

The KBPC3510 series is available in various options, with different reverse voltages and forward currents ranging from 50 to 1000 Volts and 10/15/25/35/50 Ampere respectively. The datasheet provides detailed specifications for each option, allowing customers to choose the most suitable one for their specific needs.

This product is manufactured in China and has a dielectric strength of 2.5kV and a mounting torque of 20 Max. The peak forward voltage is 1.1 Max and the peak reverse current is 10 Max. With a thermal resistance of 0.7, these rectifiers are designed to withstand high temperatures and provide long-lasting performance.
