P75NF758 N Channel Power MOSFET(Pack of 3)

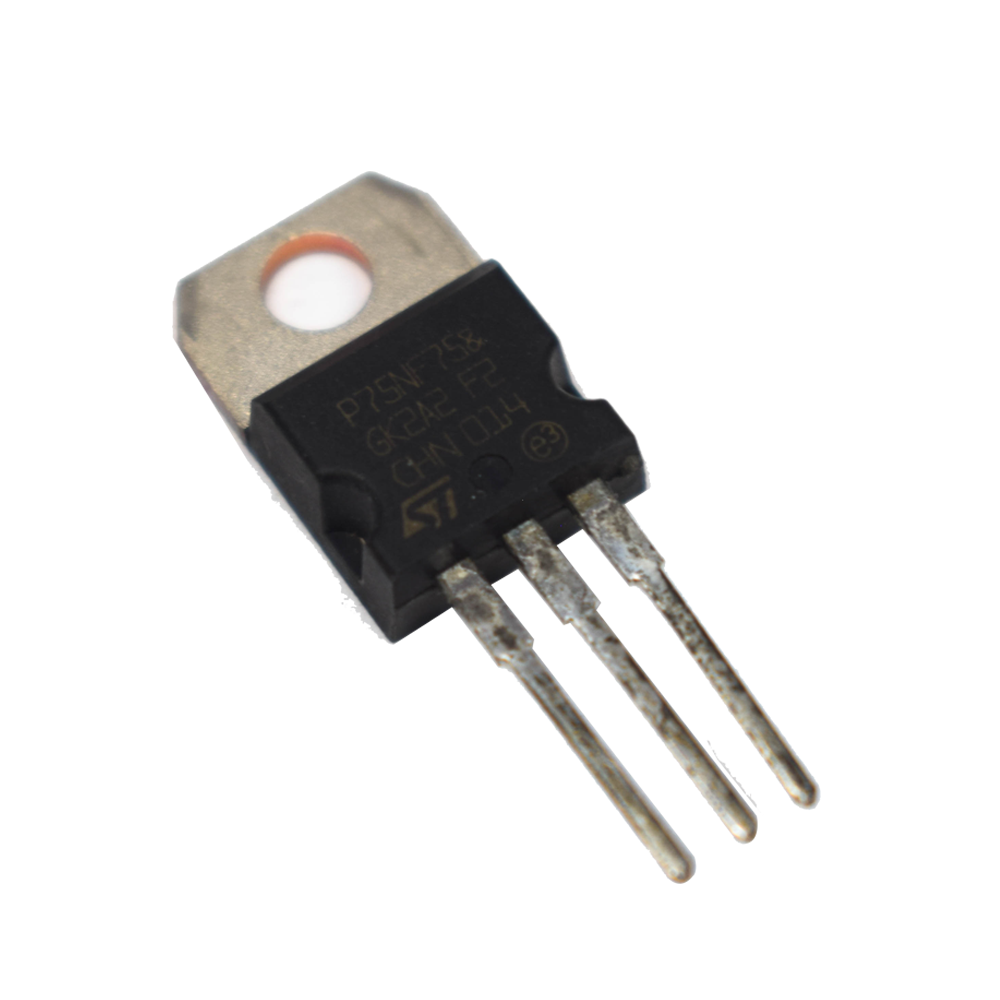

Product Title: P75NF758 N-Channel Power MOSFET Pack of 3

This pack of 3 P75NF758 N-channel power MOSFETs is a high-quality and efficient solution for various electronic applications. With a maximum operating voltage of 75V and a forward current of 80A, this MOSFET is designed to handle high power and voltage requirements.

Created using STMicroelectronics' exclusive S Trip FET process, this MOSFET boasts reduced gate charge and input capacitance, making it ideal for use in modern, high-efficiency, high-frequency isolated DC-DC converters for telecom and computer applications. It is also suitable for situations that require a small gate drive.

Some of the key features of this MOSFET include a drain to source voltage of VDSS = 75V, gate to source voltage of VGSS = ± 20V, and a storage temperature range of -55°C to +175°C. It is commonly used in switching operations and is a reliable choice for various electronic projects.

Specifications:

1. Model: P75NF758
2. Type: MOSFET
3. Package: TO-220
4. Forward Current: 80A
5. Voltage: 75V
6. Brand: STMicroelectronics
7. Absolute Temperature: 25°C
8. Operating and Storage Temperature Range: -55°C to +175°C
9. Country of Origin: China
