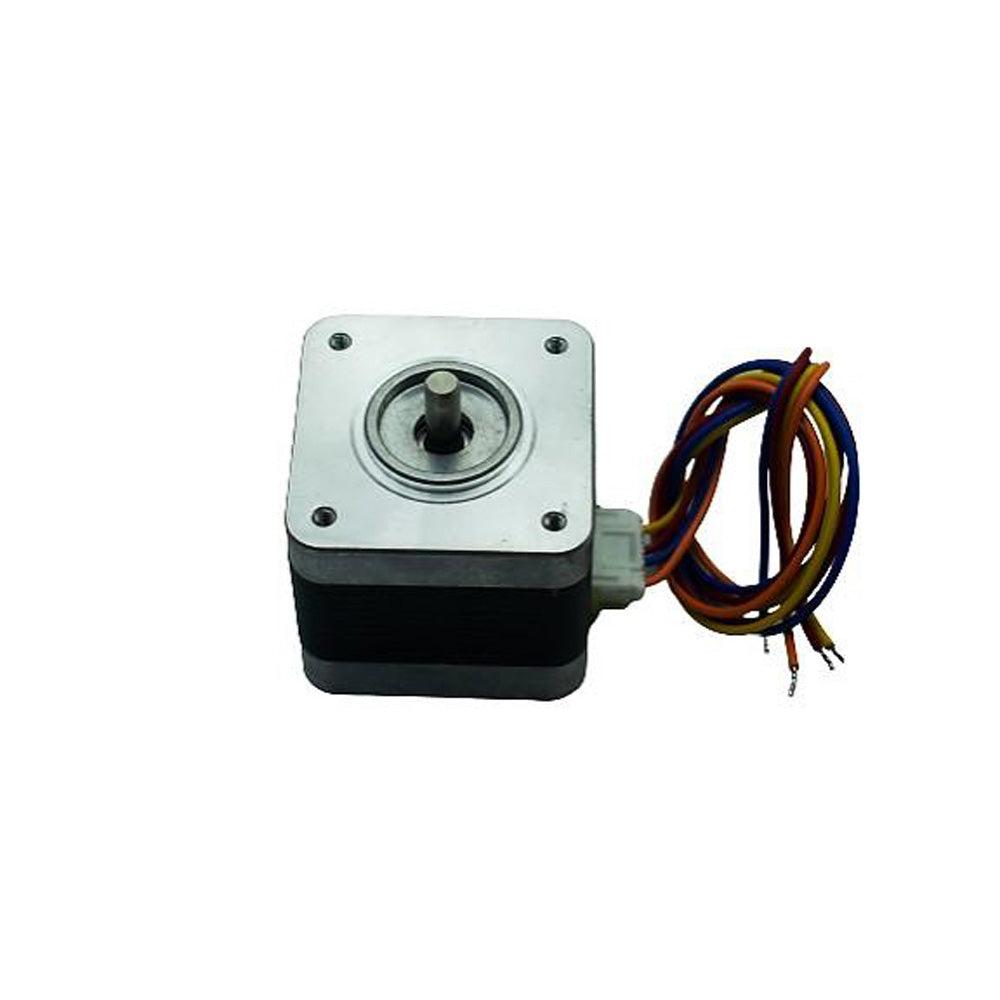

Nema 17 4 Kg-cm Bipolar Stepper Motor 10 mm Shaft for CNC Robotics DIY Projects 3D Printer
Free Shipping
For all orders over ₹ 1999
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Hotline Order:
Mon - Sat: 10AM - 07PM
+91 8929620302
NEMA17 4Kgcm Stepper Motor for high torque applications. Ideal Motor for ATM machines, 3D printers, Peristaltic pumps and job positioning and rotating applications. Single side JST Connectors are provided with the motor.
Features:
- Torque: 4 kg-cm
- Current/Phase: 1.5A
- Operating Voltage (VDC): 12 ~ 24 VDC
- Step Angle: 1. 8 deg/step
- Shaft Type: Round
- Shaft Diameter: 5mm
- Shaft Length: 10mm
Specifications
| Torque | 4 kg-cm |
| Step Angle | 1. 8 deg/step |
| Current/Phase | 1.5A |
| Rated Voltage | 12-24 VDC |
| Number of Phase | 2 |
| Shaft Type | Round |
| Shaft Diameter | 5mm |
| Shaft Length | 10mm |
| Motor Body Dimension (LxWxH) | 42x42x36 (mm) |
| Country of Origin | China |
