Meanwell RQ50B SMPS (5V, 12V, -5V, -12V) 50W Quad Output Switching Power Supply

Meanwell RQ50B SMPS (5V, 12V, -5V, -12V) 50W Quad Output Switching Power Supply

Rs. 2,556.35
Rs. 3,169.70 Rs. 2,556.35
Sale Sold out
Taxes included. Shipping calculated at checkout.

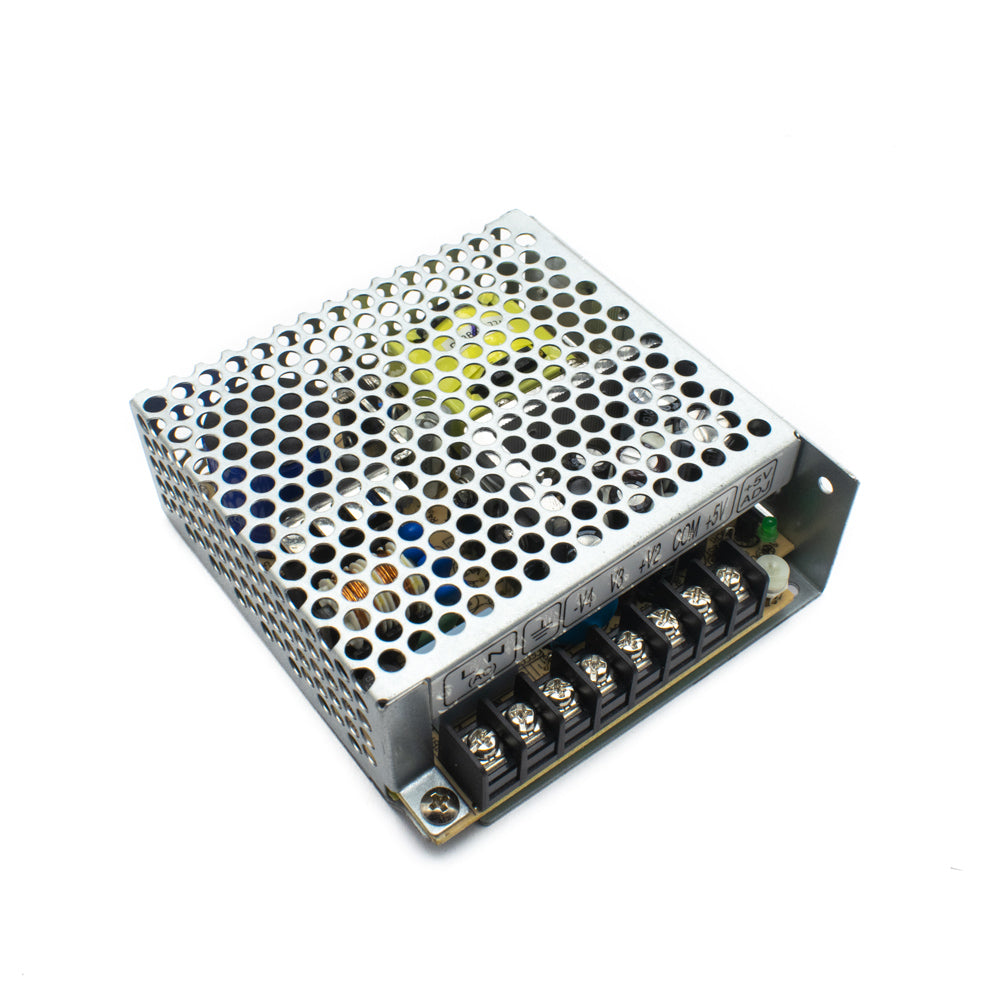

RQ-50B series is a 50W quad-output enclosed type power supply with 36mm of low profile design. The AC input is 88~264VAC which could be directly supplied from the house supplied voltage. The output Voltages from SMPS will be +5V, +12V,-5V, -12V. The SMPS has high efficiency up to 74%, the design is of metallic mesh case which enhances the heat dissipation of RQ-50B that the whole series operates from -25,°C through +70,°C. RQ-50B has complete protection functions and 5G antivibration capability; it complies with international safety regulations such as UL62368-1, TUV BS EN/EN62368-1. RQ-50B series can be used for many purposes with the best performance from it.

Pinout

Pin No. Pin name Description
1,2 AC/L&N Supplied AC Voltage (88 ~ 264VAC)
3 FG GND
4 -V4 DC OUTPUT -12V
5 V3 DC OUTPUT -5V
6 +V2 DC OUTPUT +12V
7 COM Negative for V1,V2,V3,V4
8 +5V(V1) DC OUTPUT +5V

,

Feature

  • Universal AC input/ Full range
  • Protections: Short circuit/ Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105,°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5-second
  • High operating temperature up to 70,°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus
  • Household appliances
Specifications
Model RQ-50B
Brand Meanwell
DC Voltage (through four voltage channel) +5V(V1) , +12V(V2) , -5V(V3) ,, -12V(V4)
Rated Current V1-5A, V2-1A, V3-0.5A,, V4-0.5A
Rated Power 50W
Ripple & Noise V1-80mVp-p , V2-120mVp-p , V3-100mVp-p ,, V4-150mVp-p
Voltage Adj. Range CH1(V1): 4.75 ~ 5.5V
Voltage Tolerance V1- ,±2.0% , V2- ,±6% , V3- ,±3.0% ,, V4- ,±3.0%
Line Regulation V1- ,±0.5% , V2- ,±1.5% , V3- ,±0.5% ,, V4- ,±0.5%
Load Regulation V1- ,±0.5% , V2- ,±3.0% , V3- ,±1.0% ,, V4- ,±1.0%
Setup, Rise Time 500ms, 20ms/230VAC,  ,  ,  ,  1200ms, 30ms/115VAC at full load
Hold Up Time 60ms/230VAC,  ,  ,  ,  ,  10ms/115VAC at full load
Input Voltage Range 88 ~ 264VAC,  ,  ,  ,  ,  ,  ,  125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
Frequency Range 47 ~ 63Hz
Efficiency 74%
AC Current 1.3A/115VAC,  ,  ,  ,  ,  ,  0.8A/230VAC
Over Load 110 ~ 150% rated output power, Protection type : Hiccup mode, recovers automatically after fault condition is removed
    Working Temperature -25,°C to 70,°C
    Working Humidity 20~90% RH
    Dimensions(L*W*H) 99*97*36mm
    Country of Origin China
