Meanwell RD35A (5V,12V) 35W Dual Output Switching Power Supply

Meanwell RD35A (5V,12V) 35W Dual Output Switching Power Supply

Rs. 2,066.25
Rs. 2,562.15 Rs. 2,066.25
Sale Sold out
Taxes included. Shipping calculated at checkout.

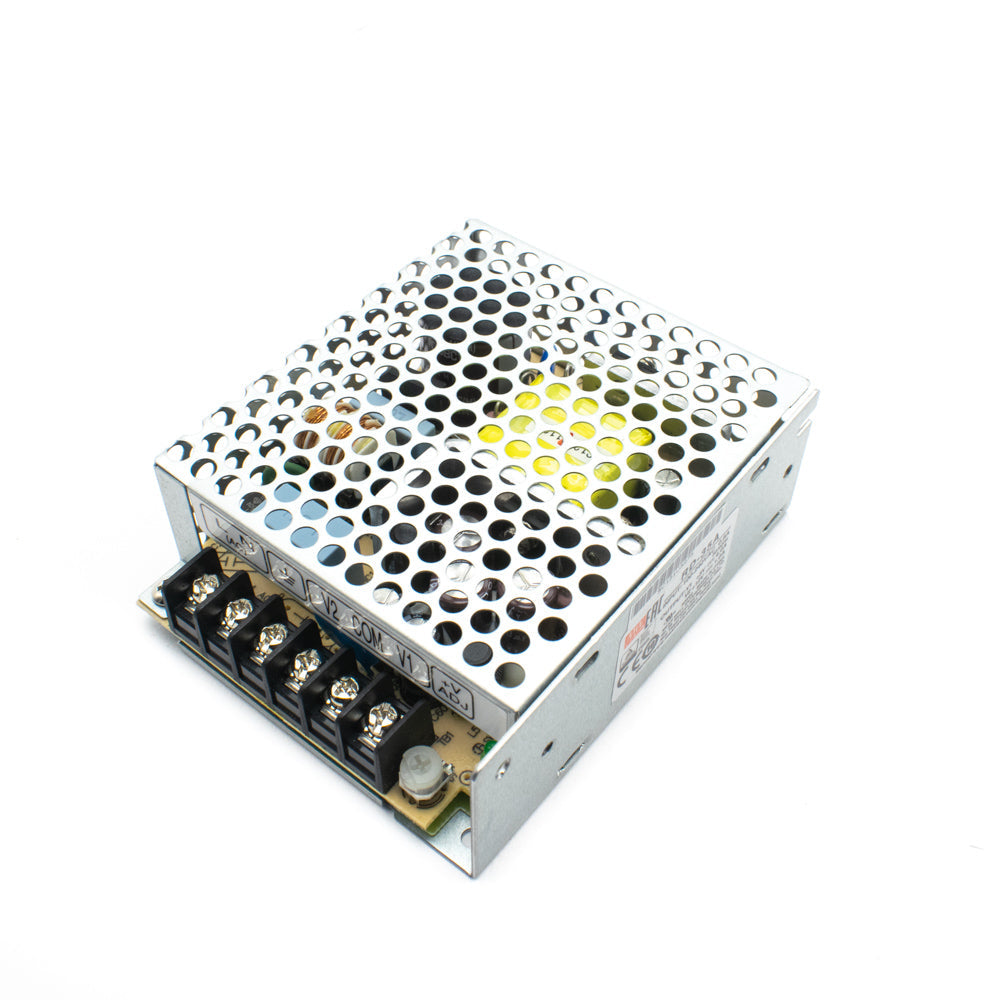

RD-35A series is a 35W Dual-output enclosed type power supply with 36mm of low profile design. The AC input is 88~264VAC which could be directly supplied from the house supplied voltage. The output Voltages from SMPS will be +5V, +12V. The SMPS has high efficiency up to 79%, the design is of metallic mesh case which enhances the heat dissipation of RD-35A that the whole series operates from -25,°C through +70,°C. RD-35A has complete protection functions and 5G antivibration capability; it complies with international safety regulations such as UL62368-1, TUV BS EN/EN62368-1. RD-35A series can be used for many purposes with the best performance from it.

Pinout

Pin No. Pin name Description
1,2 AC/L&N Supplied AC Voltage (88 ~ 264VAC)
3 FG GND
4 V2(+V) DC OUTPUT +12V
5 COM Negative for DC Outputs
6 V1(+5V) DC OUTPUT +5V

,

Feature

  • Universal AC input/ Full range
  • Protections: Short circuit/ Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105,°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5-second
  • High operating temperature up to 70,°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus
  • Household appliances
Specifications
Model RD-35A
Brand Meanwell
DC Voltage (through two voltage channel) +5V(V1) , +12V(V2),
Rated Current V1-4A, V2-1A
Rated Power 32W
Ripple & Noise V1-80mVp-p , V2-120mVp-p
Voltage Adj. Range CH1(V1): 4.75 ~ 5.5V
Voltage Tolerance V1- ,±2.0% , V2- ,±6.0%,
Line Regulation V1- ,±0.5% , V2- ,±1.5%,
Load Regulation V1- ,±0.5% , V2- ,±3.0%,
Setup, Rise Time 500ms, 30ms/230VAC,  ,  ,  ,  1200ms, 30ms/115VAC at full load
Hold Up Time 80ms/230VAC,  ,  ,  ,  ,  16ms/115VAC at full load
Input Voltage Range 88 ~ 264VAC,  ,  ,  ,  ,  ,  ,  125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
Frequency Range 47 ~ 63Hz
Efficiency 79%
AC Current 0.8A/115VAC,  ,  ,  ,  ,  ,  0.55A/230VAC
Over Load

110 ~ 150% rated output power,

Protection type : Hiccup mode, recovers automatically after fault condition is removed
    Working Temperature -25,°C to 70,°C
    Working Humidity 20~90% RH
    Dimensions(L*W*H) 99*82*36mm,
    Country of Origin China
