MB10F Bridge Rectifier (Pack of 10)

MB10F Bridge Rectifier (Pack of 10)

Rs. 100.00
Rs. 140.00 Rs. 100.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

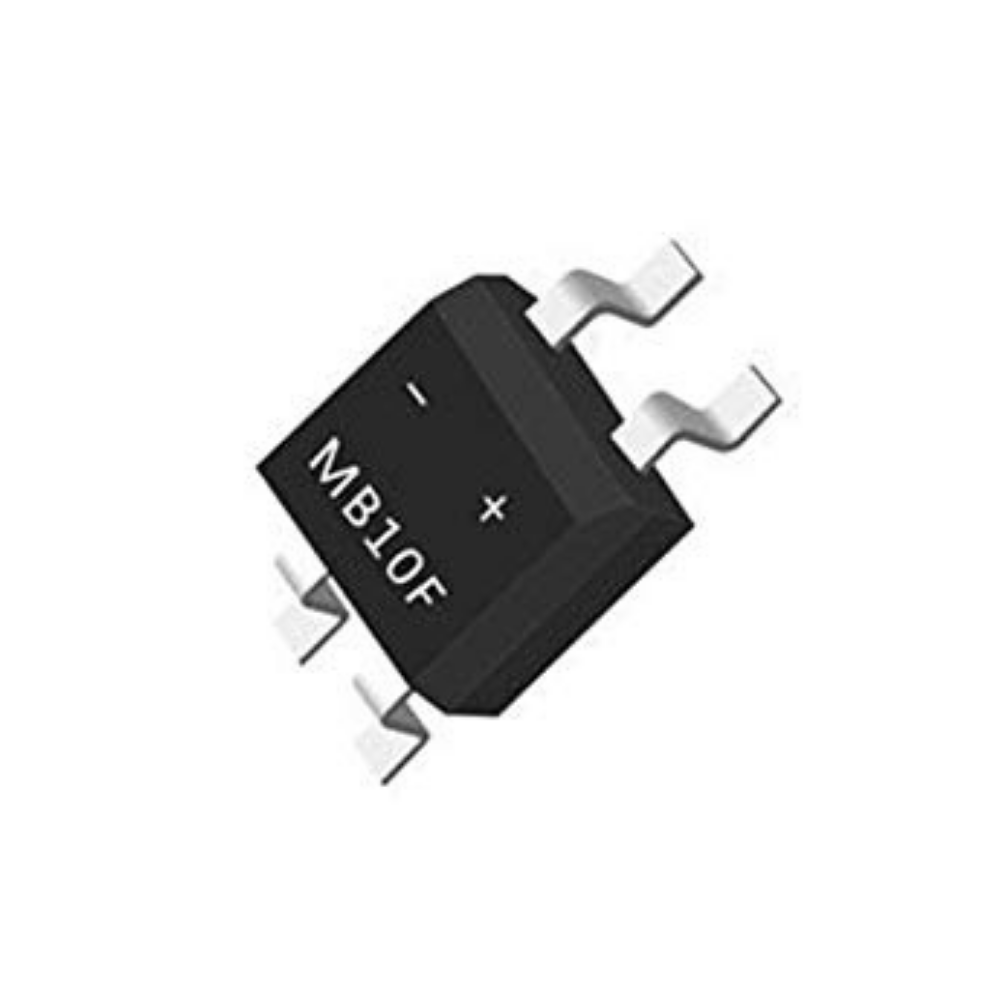

The MB10F is a bridge rectifier diode in a small surface-mount package and is commonly used for single-phase applications. The maximum input AC voltage of this IC is 700V hence, can be used for a broad range of applications. The maximum DC current that this IC can handle is 800mA. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.1V. It has high efficiency and a high surge current capability of 30A. If you are looking for a compact IC for rectification application this can be a good choice.

PINOUT

Pin Number

Pin Name

Pin Description

1

Positive

Positive of Rectified Output

2

AC Input

AC Input

3

Negative

Negative of Rectified Output

4

AC Input

Ac Input



Features

  • Glass Passivated Die Construction

  • Miniature Package Saves Space on PC Boards
  • Reliable Robust Construction
  • Forward Current (IF): 800mA
  • Ideal for SMT Manufacturing
  • Maximum Forward Voltage (VF): 1.1V (@800mA)
  • Max Surge Current: 30A
  • Lead-Free Finish; RoHS Compliant
  • Halogen and Antimony Free. “Green” Device
Specifications

Input Voltage

200-1000V

Rated Current

0.5-0.8A

Maximum DC reverse current

5.0uA

Operating Temperature Range:

-55°C to + 150°C

Dimensions

6.7mm x 4.6mm x 1.5mm
Country of Origin China
