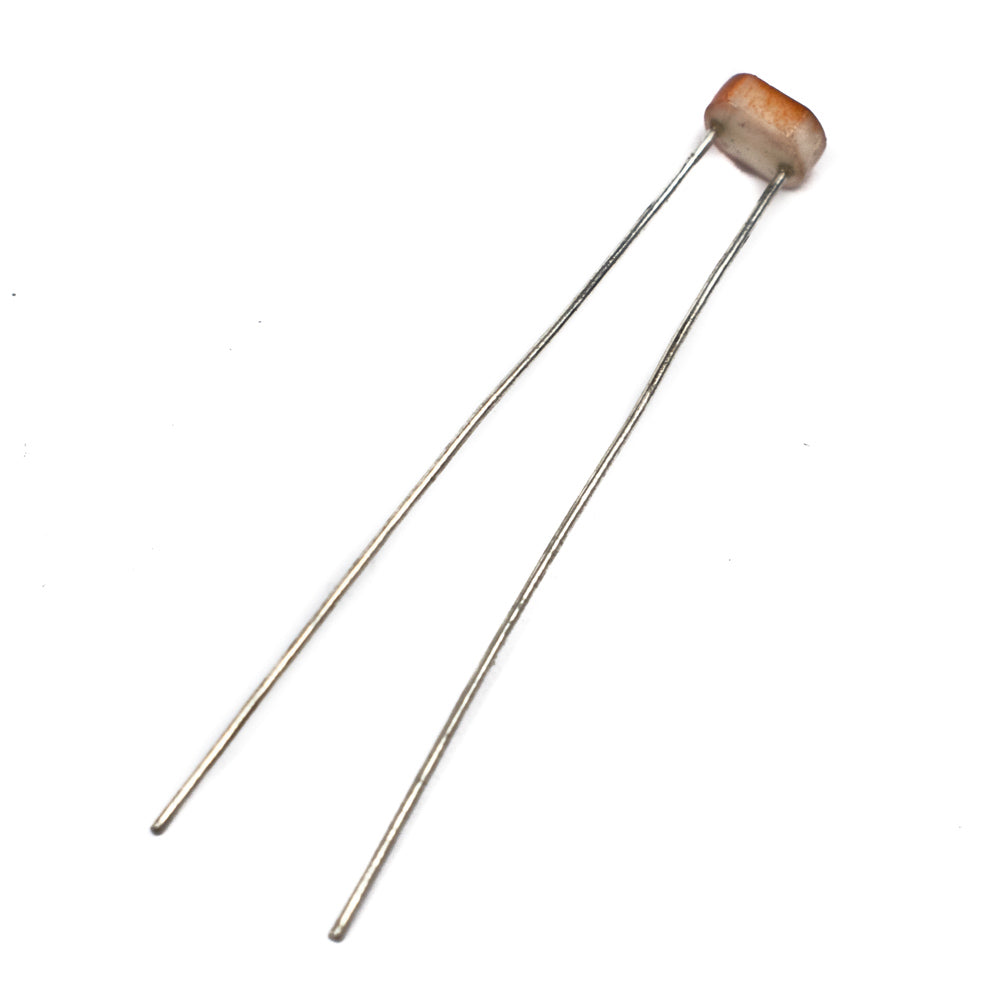

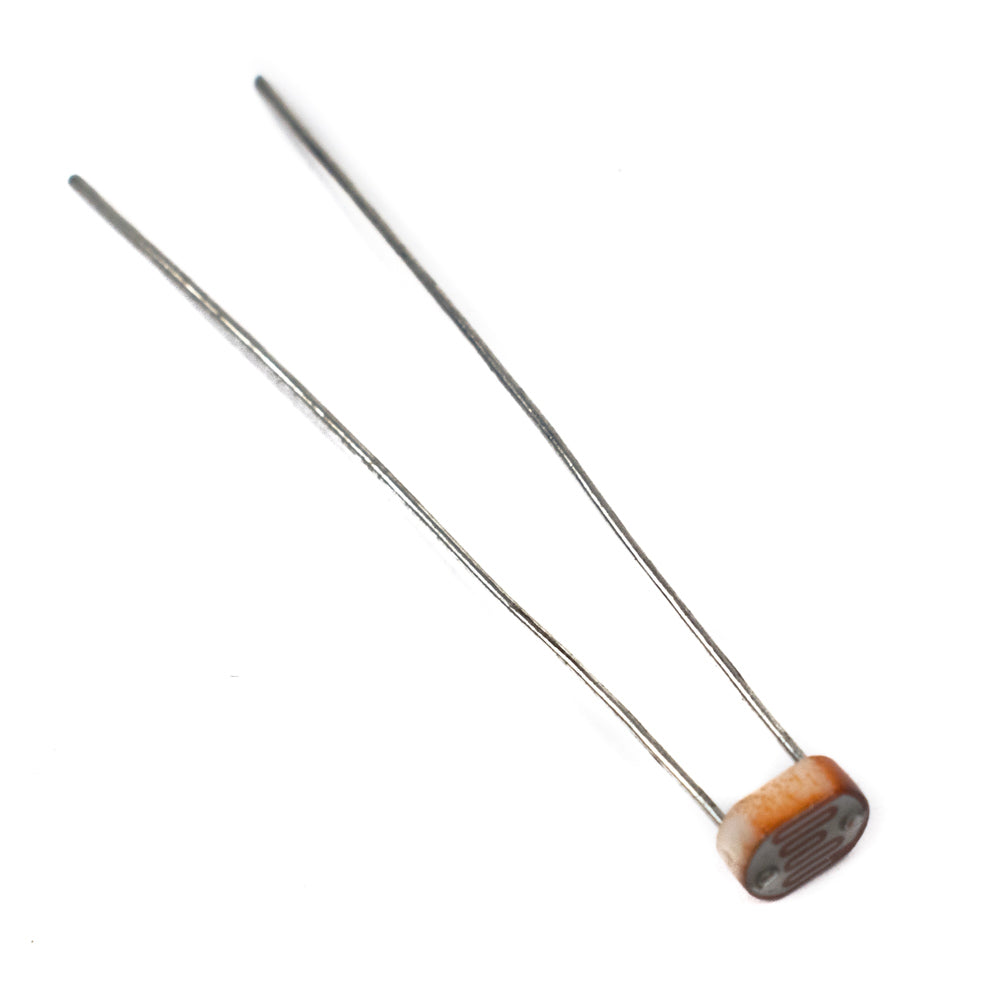

Light Dependent Resistor (LDR) 5mm (Pack of 100)
Light Dependent Resistor (LDR) 5mm (Pack of 100)
Regular price
Rs. 900.00
Regular price
Rs. 1,200.00
Sale price
Rs. 900.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Out of stock
Light Dependent Resistor is a special type of resistor used for the detection of light. As it is a type of resistor hence it doesn’t have any polarity and can be connected in any direction. LDR provides high resistance of several Mega Ohm in the absence of light but as the light starts striking on its surface the resistance offered by the LDR gradually decreases to a few Ohm. It is widely used in smart street lights, automatic headlight dimmers, automatic rearview mirrors, etc.
Specifications:
| Diameter | 5 mm |
| Max Voltage | 150 volts |
| Max Power | 100 mW |
| Light resistance(10 lux) | 5-10 kohm |
| Dark Resistance | >100 kohm |
| Operating Temperature | -30° to 70° C |
| Number of Pins | 2 |
| Country of Origin | China |
