KY-036 Metal Touch Sensor Module (Pack of 2)

Product Title: KY-036 Metal Touch Sensor Module

Product URL: https://www.electratraders.com/products/ky-036-metal-touch-sensor-module

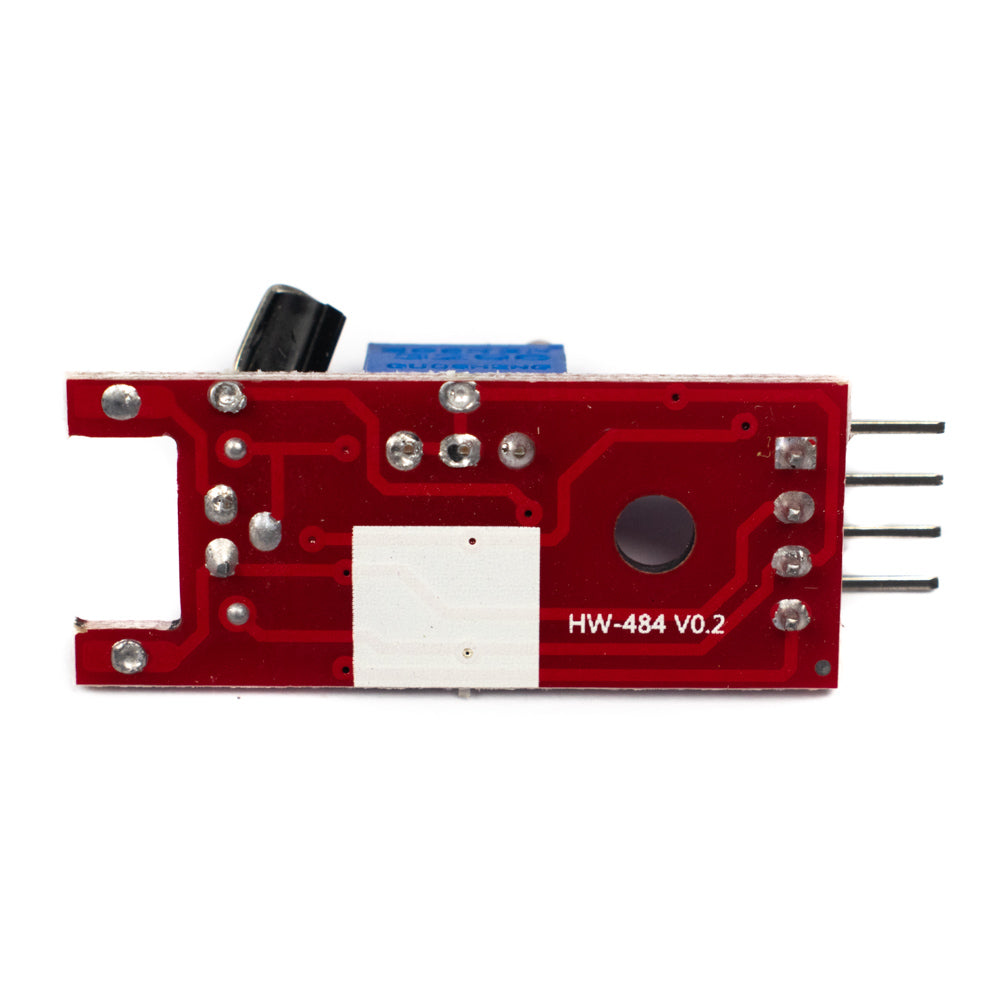

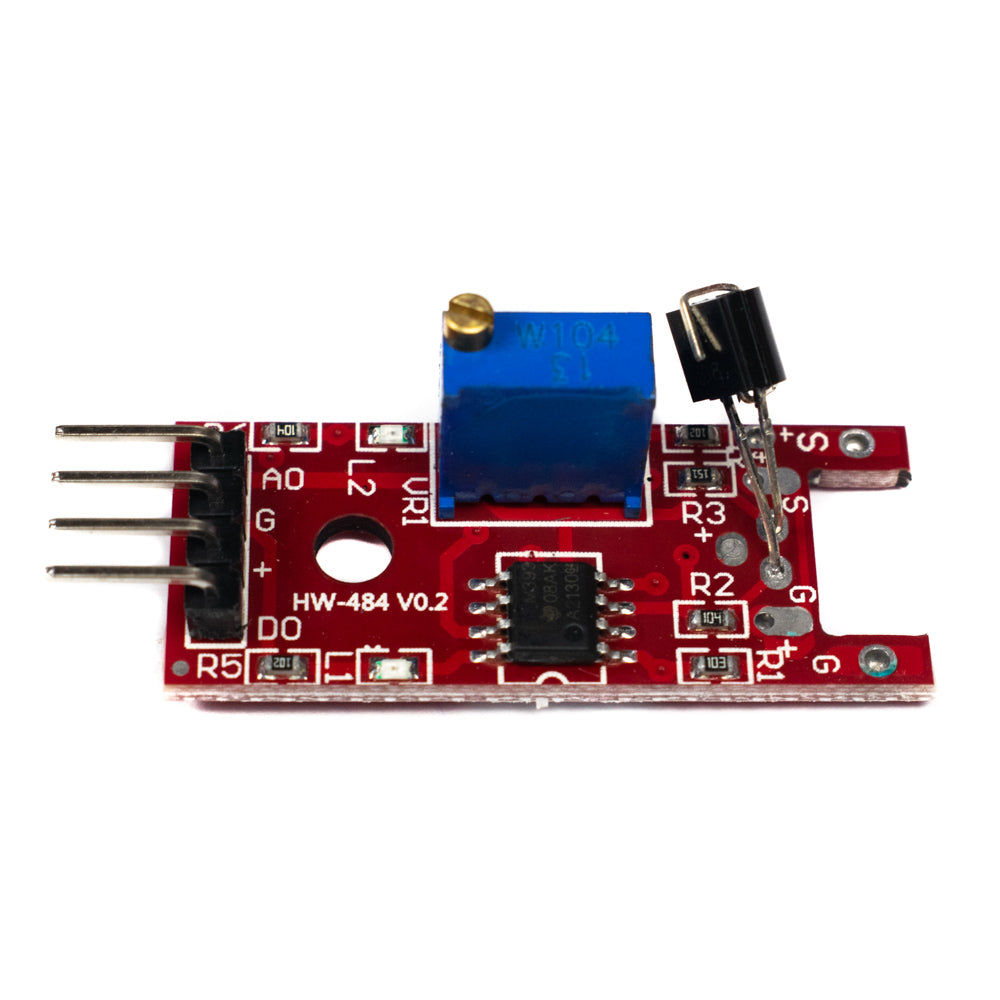

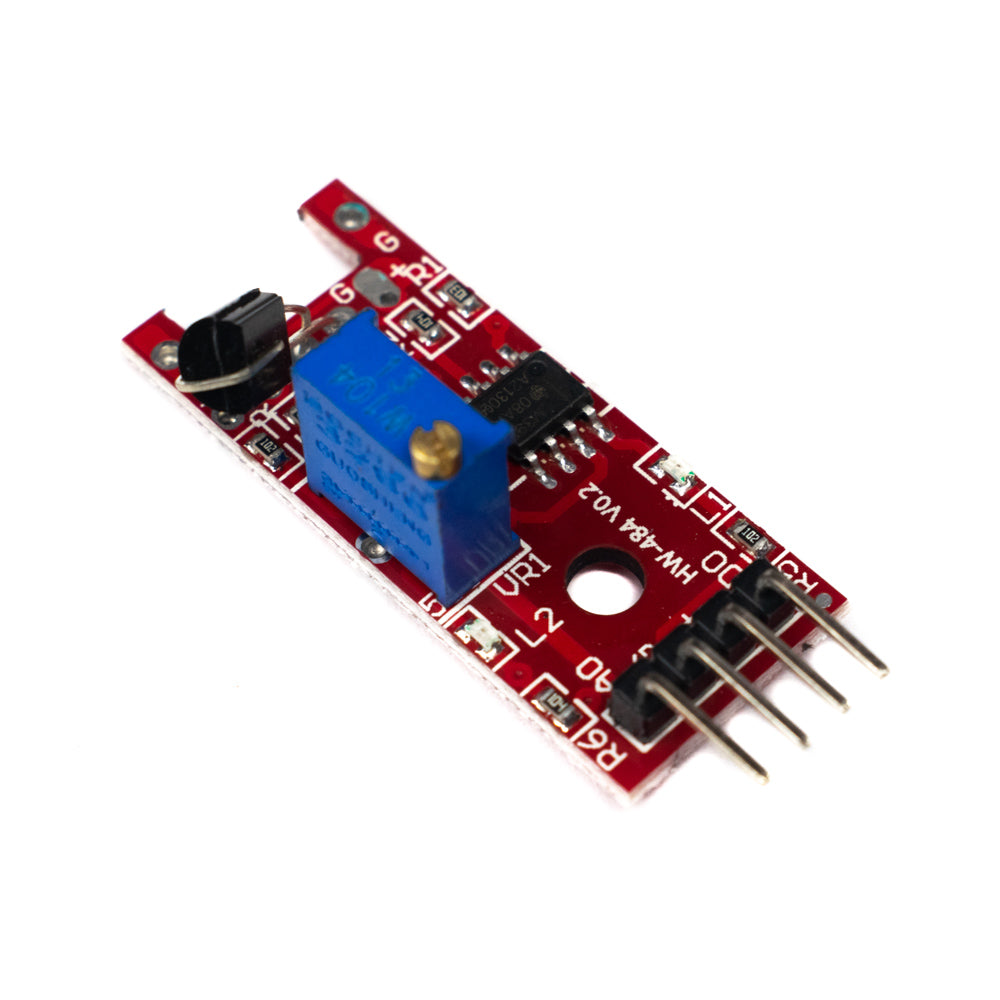

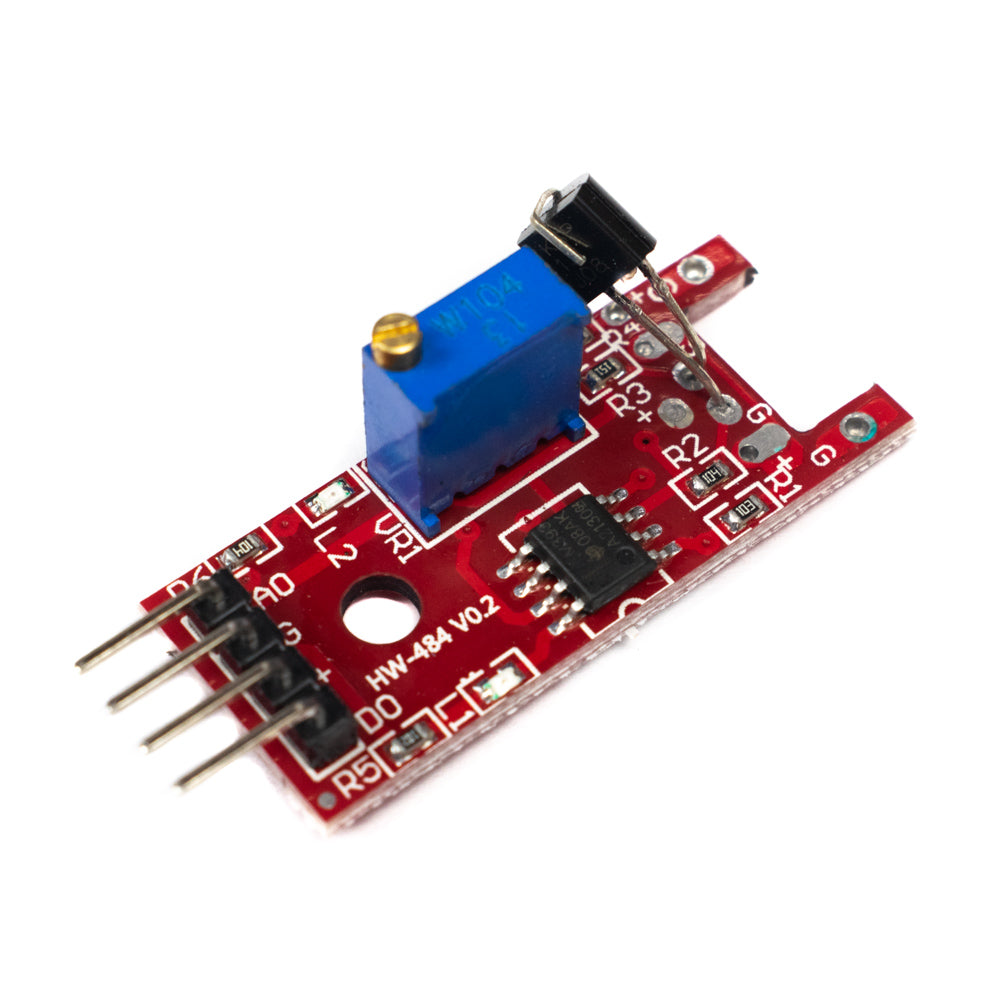

Description: The KY-036 is a unique metal touch sensor module that utilizes a floating lead of Darlington transistor to detect touch. It features two LEDs on the PCB, one for power indication and the other to illuminate when touch is detected.

Features:

1. Main chip: LM393
2. Working voltage: DC 5V
3. Single-channel signal output
4. Low-level output signal used for human body touch sensor alarm
5. Adjustable sensitivity
6. Pin Connector to board: 4 Pins

Specifications:

1. Operating Voltage: 5V DC
2. Main Chip: LM393
3. Number of Pin: 4
4. PCB Colour: Red
5. Adjustable: Yes
6. Size: 43x16x15mm
