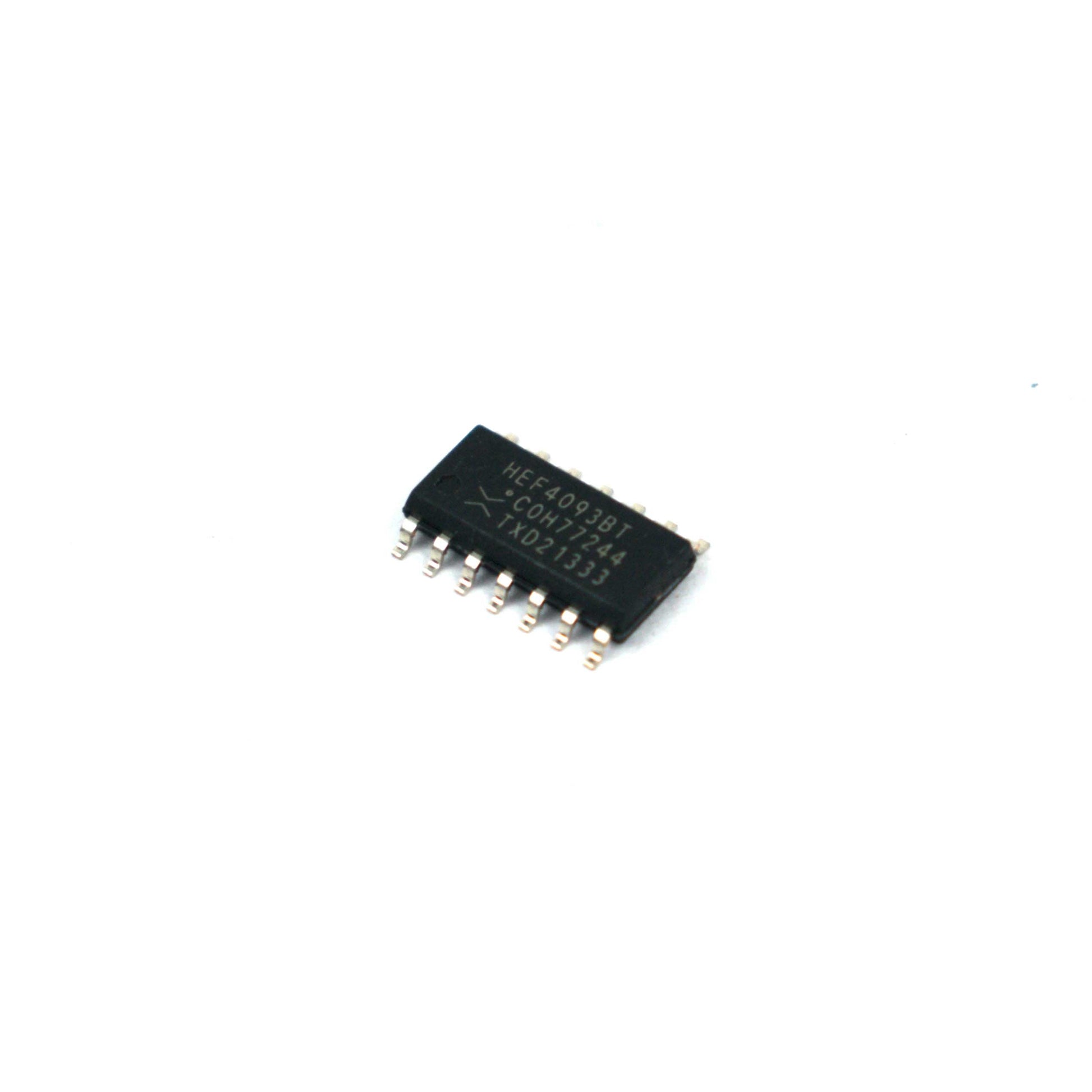

HEF4093BT NEXPERIA Quad 2-Input NAND Gate SO14(Pair of 2)

HEF4093BT NEXPERIA - Quad 2-Input NAND Gate with Schmitt Trigger Input

Introducing the HEF4093BT NEXPERIA - a revolutionary quad 2-input NAND gate that features a Schmitt trigger input. This surface mount (SMD) active component comes in a compact plastic small outline package with 14 leads and a body width of 3.9mm SO14. The inputs are equipped with clamp diodes, allowing for the use of current-limiting resistors to interface with voltages greater than VDD.

The Schmitt trigger inputs of the HEF4093BT NEXPERIA convert jitter-free, slowly changing signals into sharply defined output signals. This results in improved noise immunity and reliable performance. With fully static operation and a wide supply voltage range of 3.0 to 15.0 V, this CMOS low power dissipation component is perfect for a variety of applications.

The HEF4093BT NEXPERIA also boasts standardized symmetrical output characteristics and complies with JEDEC standard JESD 13-B. It is ideal for use in wave and pulse shapers, astable and monostable multivibrators, and more.

Specifications:

1. Model: HEF4093BT
2. Brand: NEXPERIA
3. Mounting Type: SMD
4. No. of Pin: 14
5. Supply Voltage (VCC): 3-15V
6. Ambient Temperature Range: -40~125°C
7. Package: SO14
8. Input Clamping Current: ±10mA
9. Country of Origin: China
