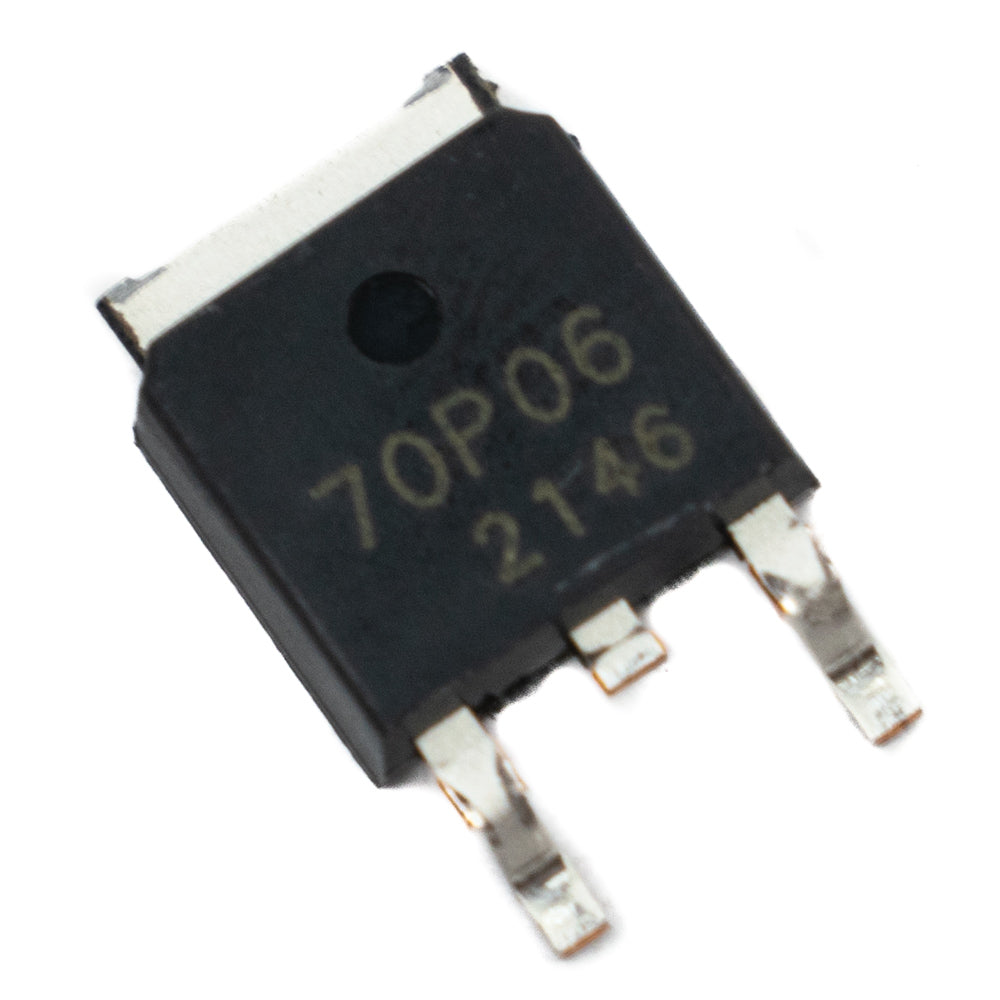

Doingter DOD70P06 60V 70A P-Channel MOSFET (PACK OF 5)

Product Title: P-Channel MOSFET by Doingter

This P-Channel MOSFET by Doingter stands out from other MOSFETs on the market due to its advanced trench technology and design. With a low gate charge and excellent RDS(on), it is perfect for various low voltage applications.

Features:

1. VDS=60V, ID=70A, RDS(ON)<10mΩ @VGS=10V
2. Low gate charge
3. Green device available
4. Advanced high cell density trench technology for ultra RDS(ON)
5. Excellent package for good heat dissipation

Specification:

1. Model: DOD70P06
2. Brand: Doingter
3. Drain-Source Voltage (VDS): 60V
4. Gate-Source Voltage (VGS): ±20V
5. Continuous Drain Current: 70A
6. Pulsed Drain Current: 200A
7. Operating Temperature: -55°C~175°C
8. Package: TO-252
9. Quantity: 5
10. Country of Origin: China
