X9C103S Digital Potentiometer Board Module

Product Title: Digital Potentiometer Board Module

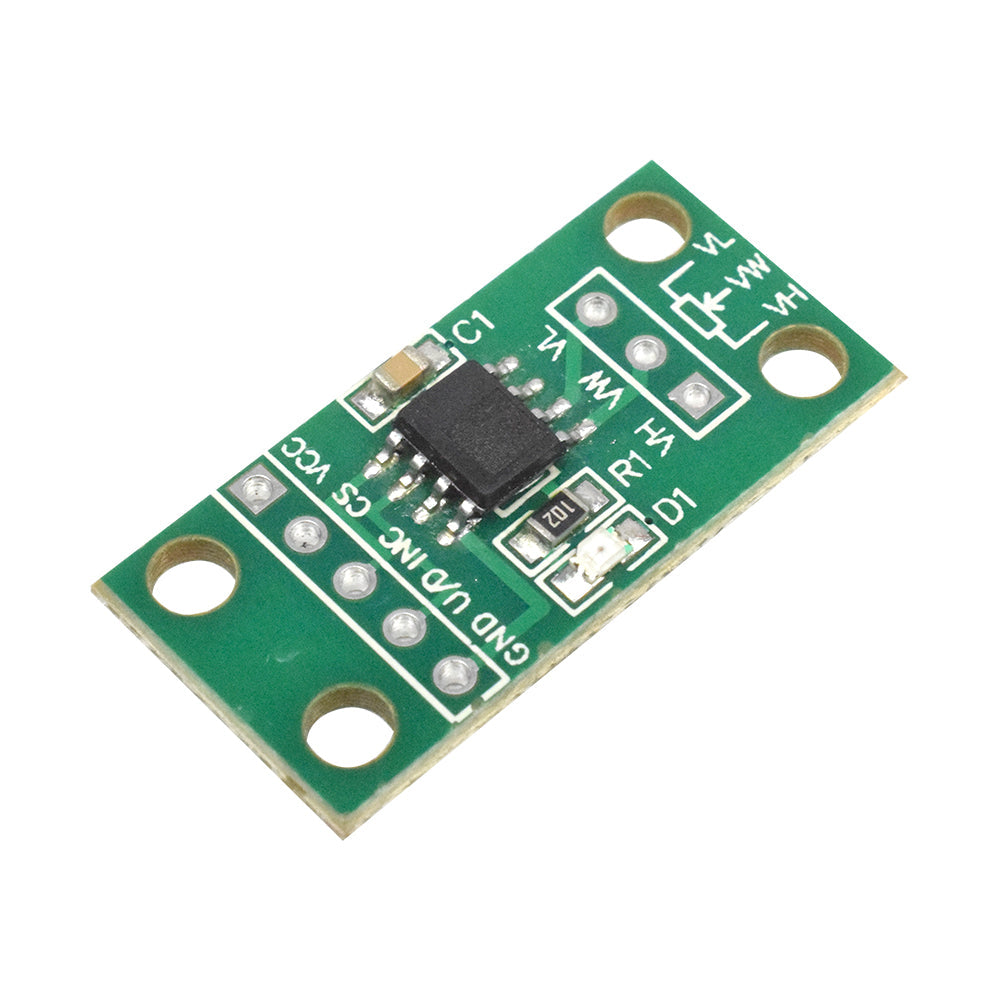

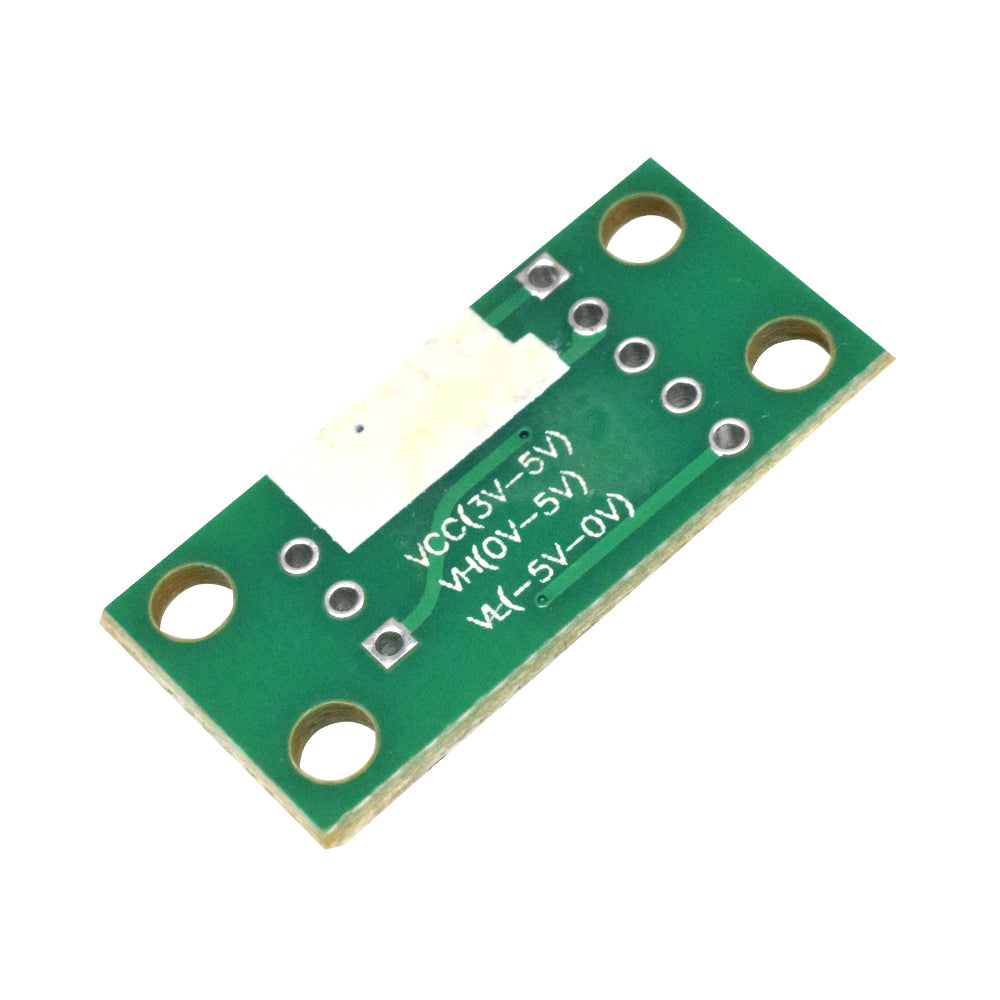

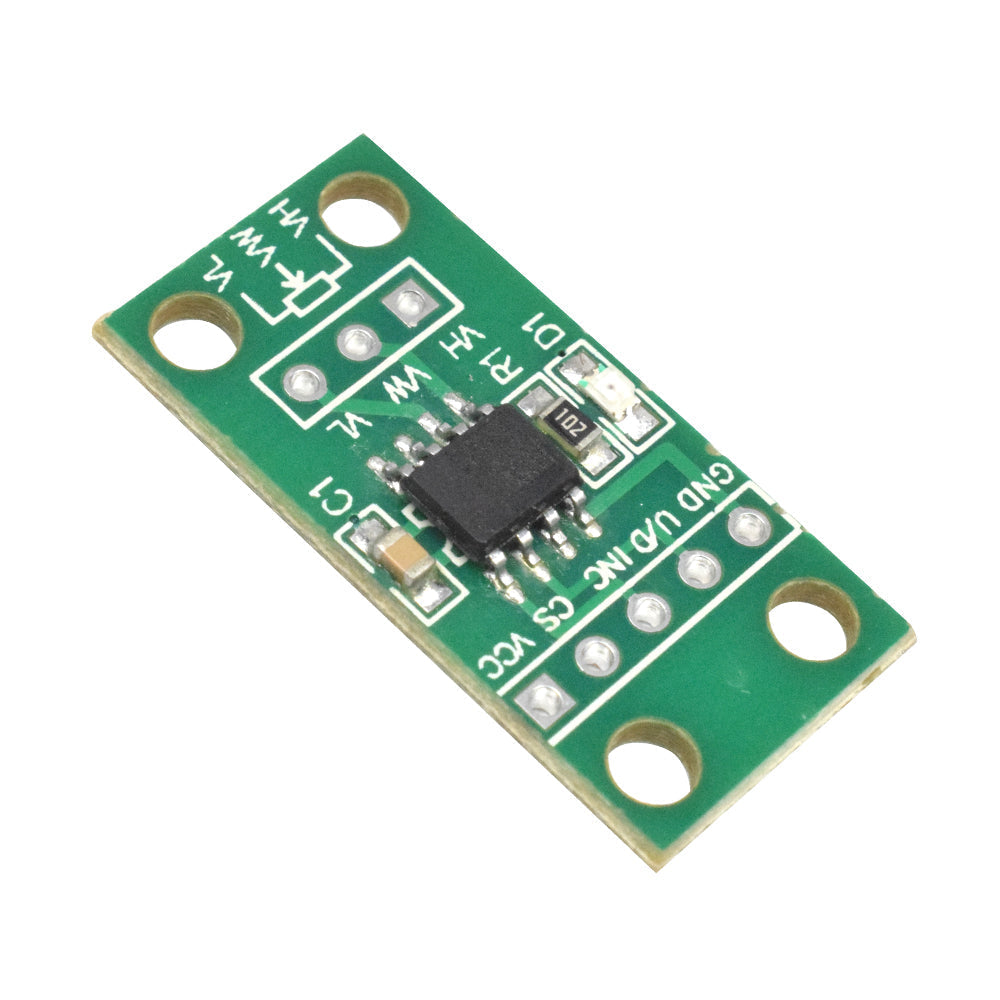

This Digital Potentiometer Board Module is a unique and innovative product that offers a digital solution to controlling resistance. It consists of a resistor array, wiper switches, a control section, and non-volatile memory, making it a versatile and efficient tool for various applications.

The module has a three-pin output that can replace a traditional mechanical potentiometer, allowing you to vary its resistance digitally. It also has the ability to store the current position in non-volatile memory, ensuring that it resumes from the same position after a power-off.

One of the standout features of this digital potentiometer is its simple 3-pin interface, making it easy to use and control. It has a supply voltage of 3V-5V and a PCB board size of 27.4x13.4mm, making it compact and suitable for various projects.

Whether you need to control a voltage splitter with digital signals or adjust the speed of a DC motor, this Potentiometer is the perfect solution. It has a 10K span potentiometer and is made in China, ensuring high-quality and reliable performance.

Specifications:

1. Input Supply Voltage (VCC): 3V-5V
2. Type: Digital Potentiometer
3. VH (0V-5V)
4. VL (-5V-0)
5. No. of Pins: 08
6. Potentiometer: 10K
7. PCB Size: 27.4x13.4mm
8. Country of Origin: China
