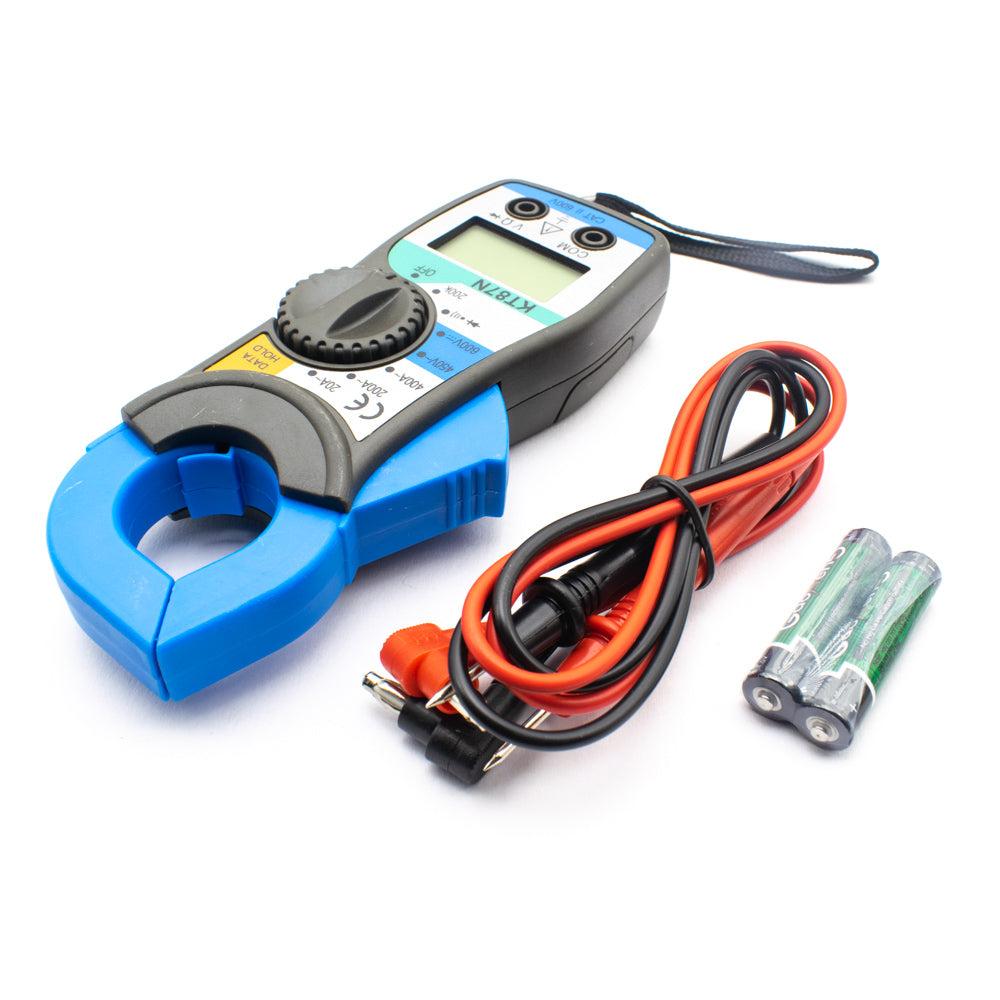

Digital Clamp Meter - Model KT87A
Hotline Order:
Mon - Sat: 10AM - 07PM
+91 8929620302
This digital multimeter is a test tool used to measure two or more electrical values principally voltage (volts), current (amps), and resistance (ohms). MT-87 Digital Clamp Meter Electronic Tester Pocket Clamping Meter for Measuring AC/DC Voltage, AC Current, Resistance, Data Hold & Overload Protection in Portable Mini MT87. It has a rugged design, is easy to hold in the operator’s hand, and is convenient to use. The meter display is a liquid crystal assembly providing a readable display in all light conditions. The decimal point is automatically positioned, and the polarity sign (minus) is lighted for negative DC measurements.
The face of a digital multimeter typically includes three components:
- Display: Where measurement readouts can be viewed.
- Dial (or rotary switch): For selecting primary measurement values (volts, amps, ohms).
- Input jacks: Where test leads are inserted.
Features:
- Digits LCD with a max reading of 1999 Counts (Digital Multimeter)
- Data hold for easy reading
- Low battery indication
- Overload protection
- DC/AC Voltage measurement（AC Current measurement)
- Diode Function
- Buzzer
- Max LCD Display
Specifications
| DC Voltage | 600V，±1.0% |
| AC Voltage | 450V，±1.2% |
| AC Current | 20-200-400A，±2.0% |
| Resistance(ohm) | 200KΩ，±1.0% |
| Max Display | 1999 Counts |
| Battery Type | 2 x 1.5V (AAA Battery) |
| Size(L x W x H) | 15.00mm x 7.00mm x 3.00mm |
| Country of Origin | China |
