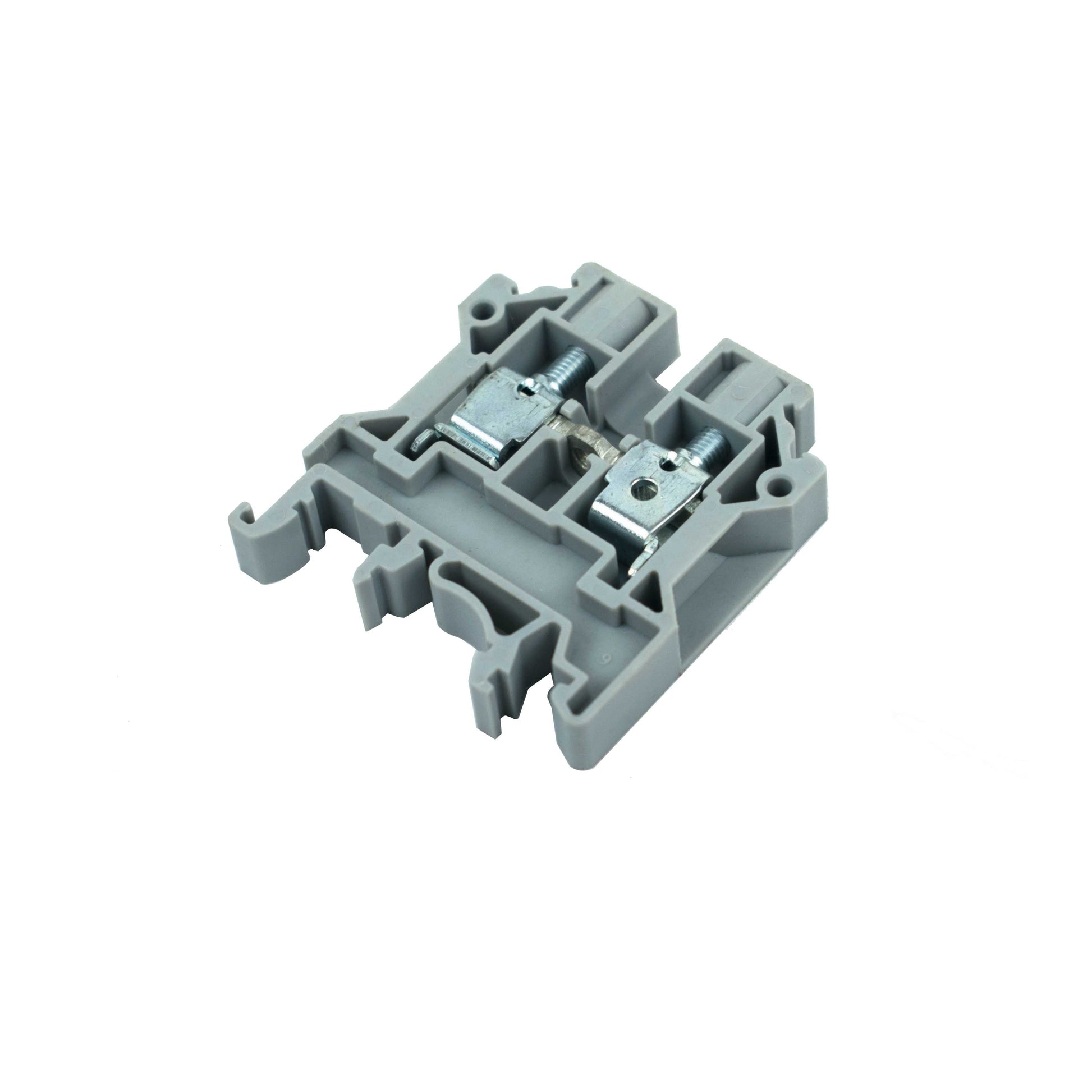

Connectwell CTS6U 6sq. mm Feed Through Screw Clamp Terminal(Pair of 2)

Product Title: 6 sq. mm Feed Through Screw Clamp Terminal

Product URL: https://www.electratraders.com/products/connectwell-cts6u-6sq-mm-feed-through-screw-clamp-terminal

Description:

The 6 sq. mm Feed Through Terminal Blocks are the most versatile terminals for control, automation, instrumentation, and power distribution applications. What sets them apart is their specially designed flexible foot that allows for easy mounting and dismounting from the Din rail with the use of a screwdriver. These Terminal Blocks also have marker-holding recesses for circuit identification and can be cross-connected using shorting links, sleeves, and screws.

In the field of electrical engineering and panel building, the need to feed through power, signal, and data is a common requirement. The distinguishing features of these terminal blocks are their insulating material, connection system, and layout. They can join one or more conductors together or connect them on the same potential, with one or more isolated connection levels.

Specifications:

1. Rated Voltage: 1000 V
2. Rated Current: 41 A
3. Tightening Torque: 0.8 Nm
4. Housing Material: Polyamide
5. Product Function: Feed Through
6. Wire Entry Orientation: Side Entry
7. Mounting Possibility: DIN32/DIN 35/DIN 35-15 Rail
8. Screw Size: M3.5
9. Operated by: Screwdriver
10. Rated Surge Voltage: 8 KV
11. Pollution Degree: 3
12. Quantity: 5 Pieces
13. Dimensions:
14. Height with DIN 32 rail: 52.8 mm
15. Height with DIN 35 x 15 mm rail: 55.5 mm
16. Height with DIN 35 x 7.5 mm rail: 47.8 mm
17. Length: 43 mm
