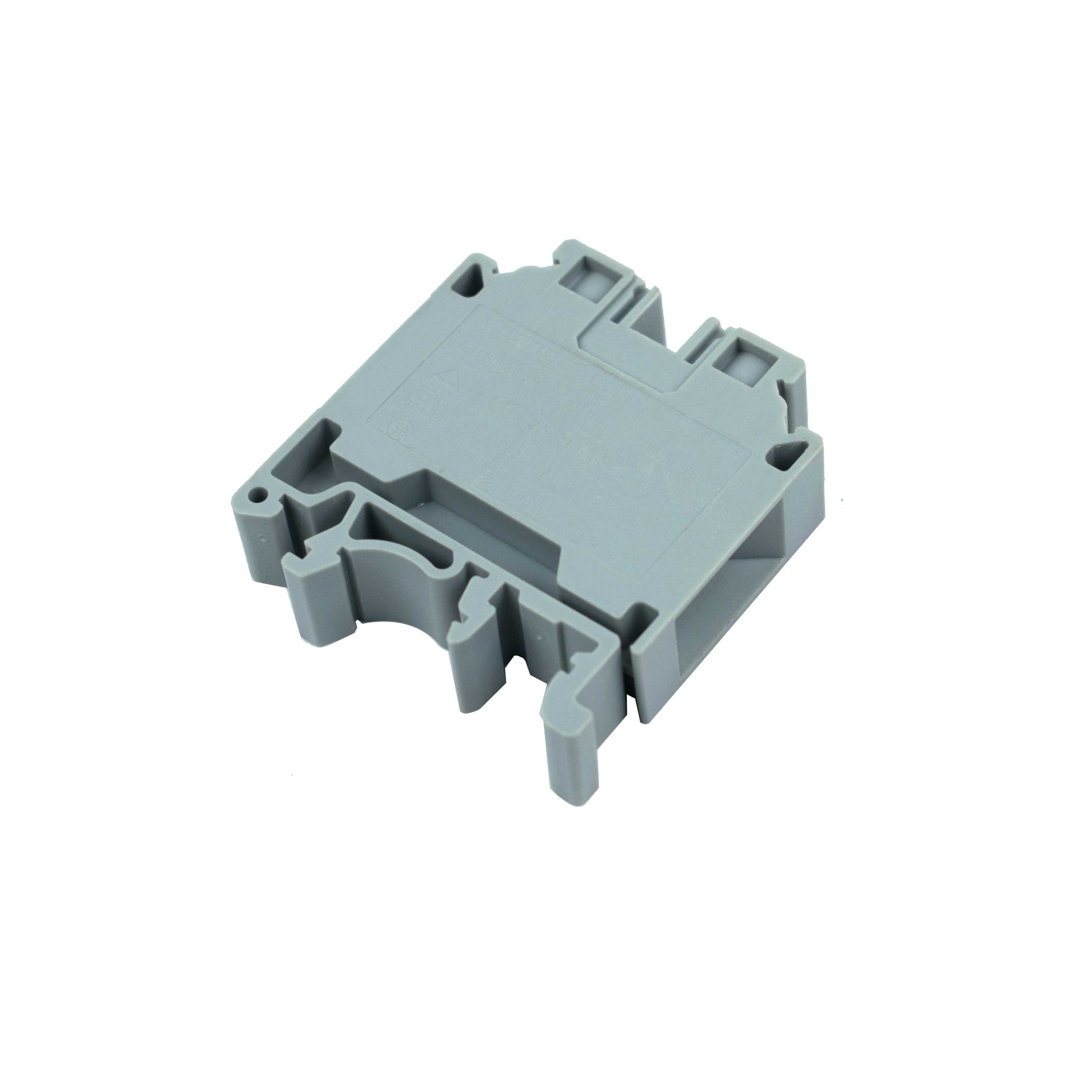

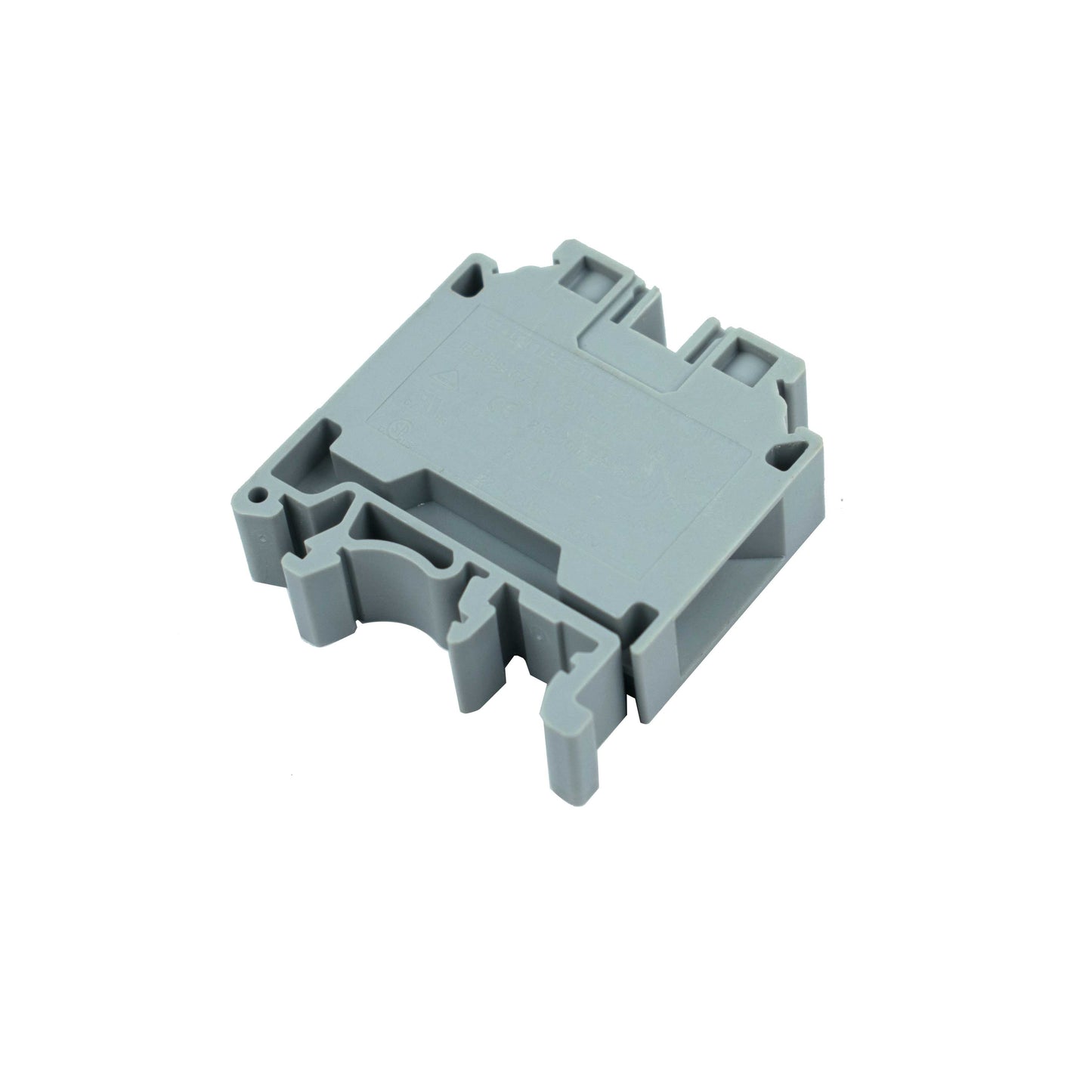

Connectwell CTS16U 16sq. mm Feed Through Screw Clamp Terminal (Pack of 2)

Product Title: Connectwell CTS16U 16sq.mm Feed Through Screw Clamp Terminal

The Connectwell CTS16U 16sq.mm Feed Through Screw Clamp Terminal is a must-have for any electrical engineering and panel building project. This versatile terminal block allows for the easy feed-through of power, signal, and data, making it an essential component in any electrical system.

One of the key features of this terminal block is its high-quality insulating material, ensuring safe and reliable connections. The connection system and layout of the terminal blocks also make it easy to join and connect one or more conductors. With one or more connection levels, these terminal blocks can be isolated or on the same potential, making them suitable for a variety of applications.

The 16sq.mm feed through terminal blocks are the most versatile option for control, automation, measurement, and power distribution. The flexible foot with a unique design allows for easy mounting and unmounting from the Din Rail using a screwdriver. These terminal blocks also have marker holding holes for circuit identification and can be used to create cross connections using shorting links, sleeves, and screws.

Specifications:

1. Rated Voltage: 1000 V
2. Rated Current: 76 A
3. Tightening Torque: 1.2 Nm
4. Housing Material: Polyamide
5. Product Function: Feed Through
6. Wire Entry Orientation: Side Entry
7. Mounting Possibility: DIN32/DIN 35/DIN 35-15 Rail
8. Screw Size: M4
9. Rated Surge Voltage: 8 KV
10. Pollution Degree: 3
11. Dimensions:
12. Height with DIN 32 rail: 52.8 mm
13. Height with DIN 35 x 15 mm rail: 55.5 mm
14. Height with DIN 35 x 7.5 mm rail: 47.8 mm
15. Length: 43 mm
16. Width (Thickness):
