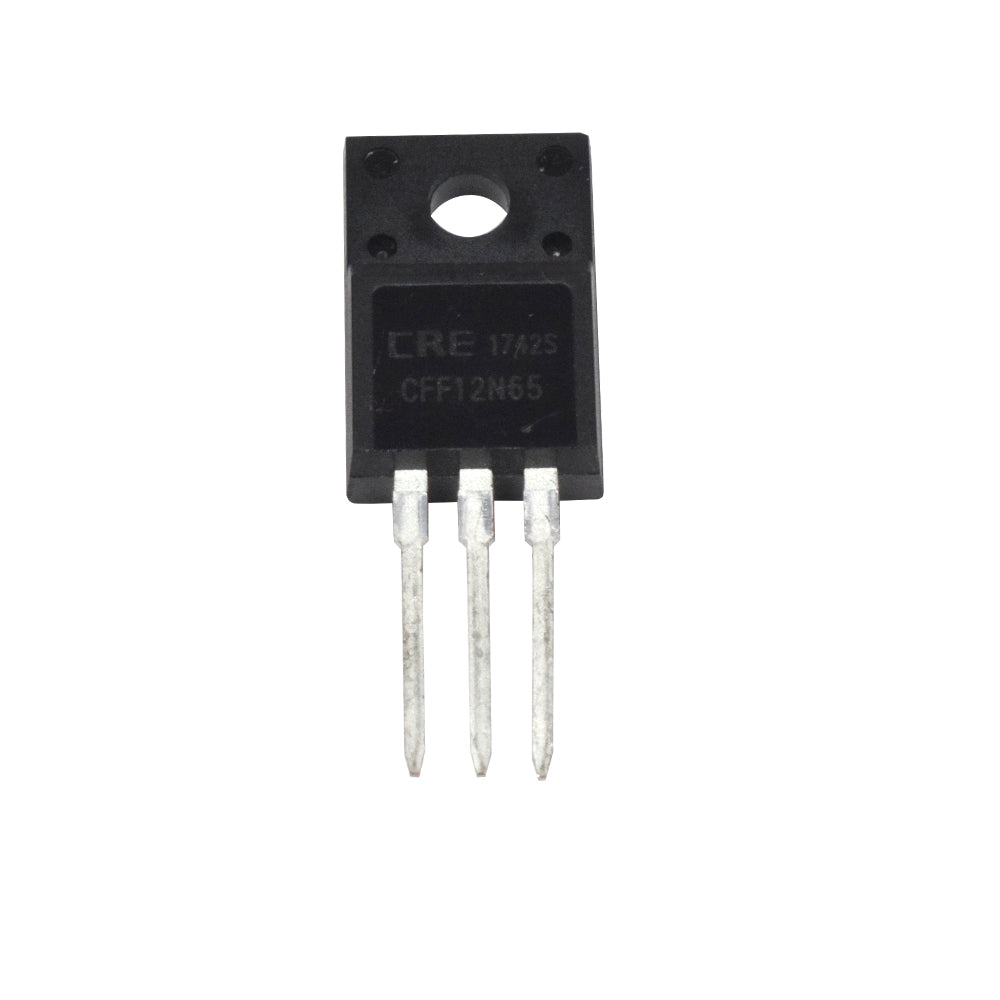

CFF12N65 12A,650V N channel MOSFET(Pack of 3)

CFF12N65 12A 650V N-Channel MOSFET Pack of 3

The CFF12N65 is a powerful and efficient N-channel MOSFET that utilizes Silicon's cutting-edge F-Cell TM structure VDMOS technology. This unique technology allows for reduced on-state resistance, improved switching performance, and the ability to withstand high energy pulses in both avalanche and commutation modes. These features make it a popular choice for use in AC-DC power supplies, DC-DC converters, and H-bridge PWM motor drivers.

Features:

1. Designed for switching operations
2. Maximum reverse voltage of 650V
3. Maximum forward current of 12A
4. Low leakage current
5. Improved dv/dT
6. 100% avalanche energy rated

Specifications:

1. Model: CFF12N65
2. Type: MOSFET
3. Package: TO-220-FL
4. Reverse Voltage: 650V
5. Max Drain Current: 12A
6. Drain Current Pulsed: 48A
7. Total Power Dissipation: 210W
8. Operating and Storage Temperature Range: -55°C to 150°C
9. Country of Origin: China
