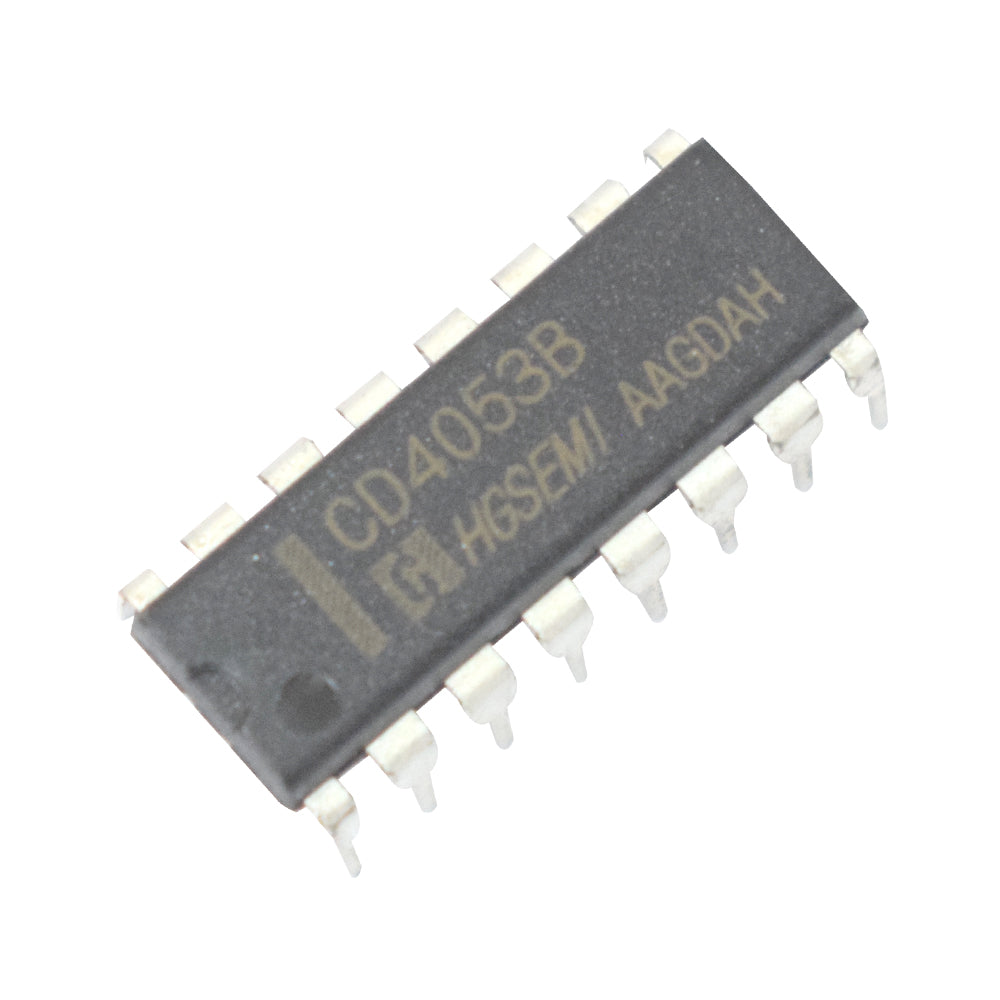

CD4053B 16DIP 2 Channel Multiplexer (Pack of 2)

The CD4053B is a triple 2-Channel multiplexer with an inhibit input in addition to three independent digital control inputs (A, B, and C). One of two channels coupled in a single-pole, double-throw design is chosen by each control input.

Applications:

Features:

• High OFF Resistance, Channel Leakage of
• Very Low Quiescent Power Dissipation Under All Digital-Control Input and Supply Conditions, 0.2μW (Typ) atVDD-VSS= VDD-VEE= 10V
• Binary Address Decoding on Chip
• 5V, 10V, and 15V Parametric Ratings
• 100% Tested for Quiescent Current at 20V
• Maximum Input Current of 1μA at 18V Over Full Package Temperature Range,         100nA at 18V and 25C

Specifications

• Model	CD4053B
  Type	IC
  Package	16DIP
  Voltage	-0.5-20V
  DC input Current	-+10mA
  No of Pins	16
  Max lead temperature	265 ° C
  Operating Temperature	55 to 125° C
  Country of Origin	China
