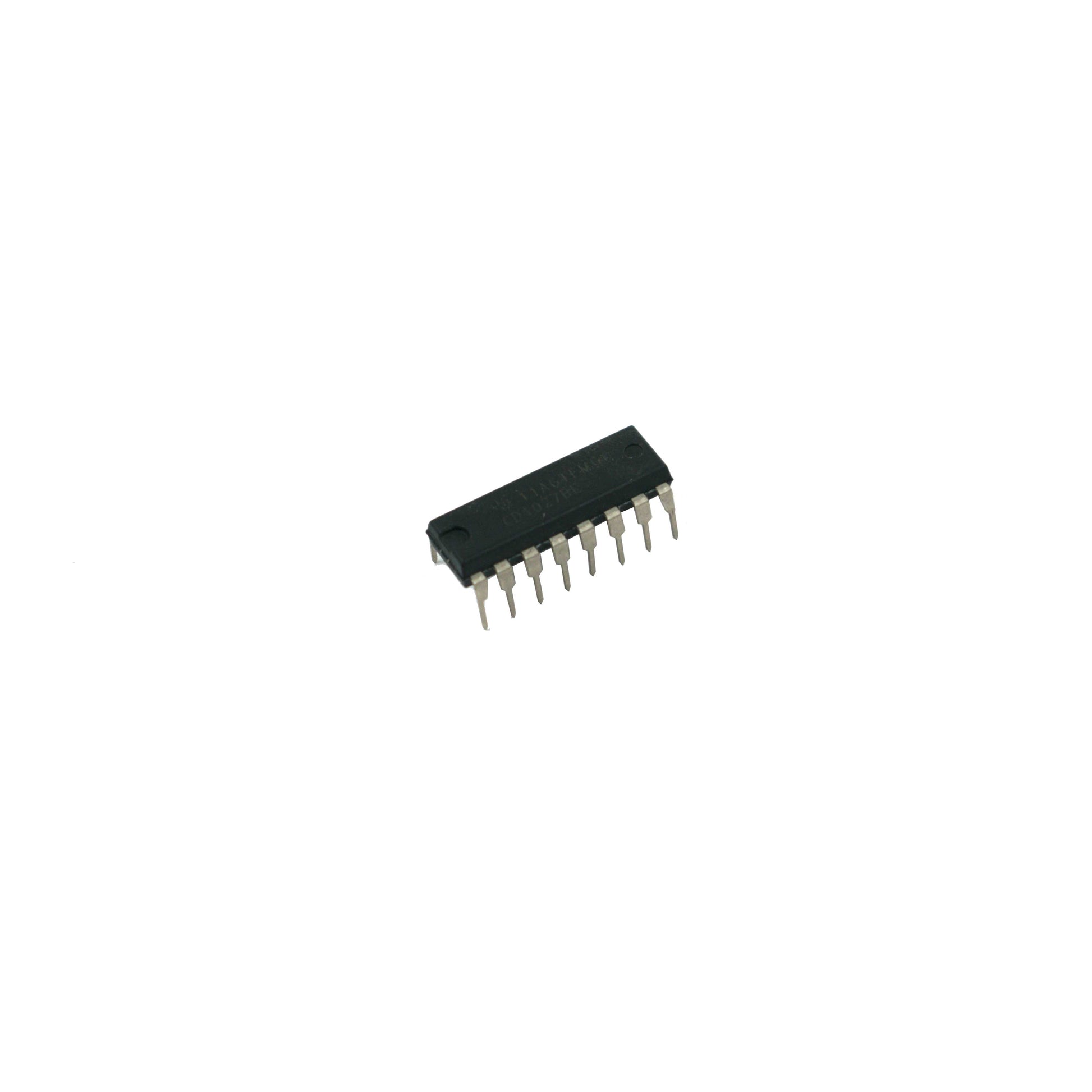

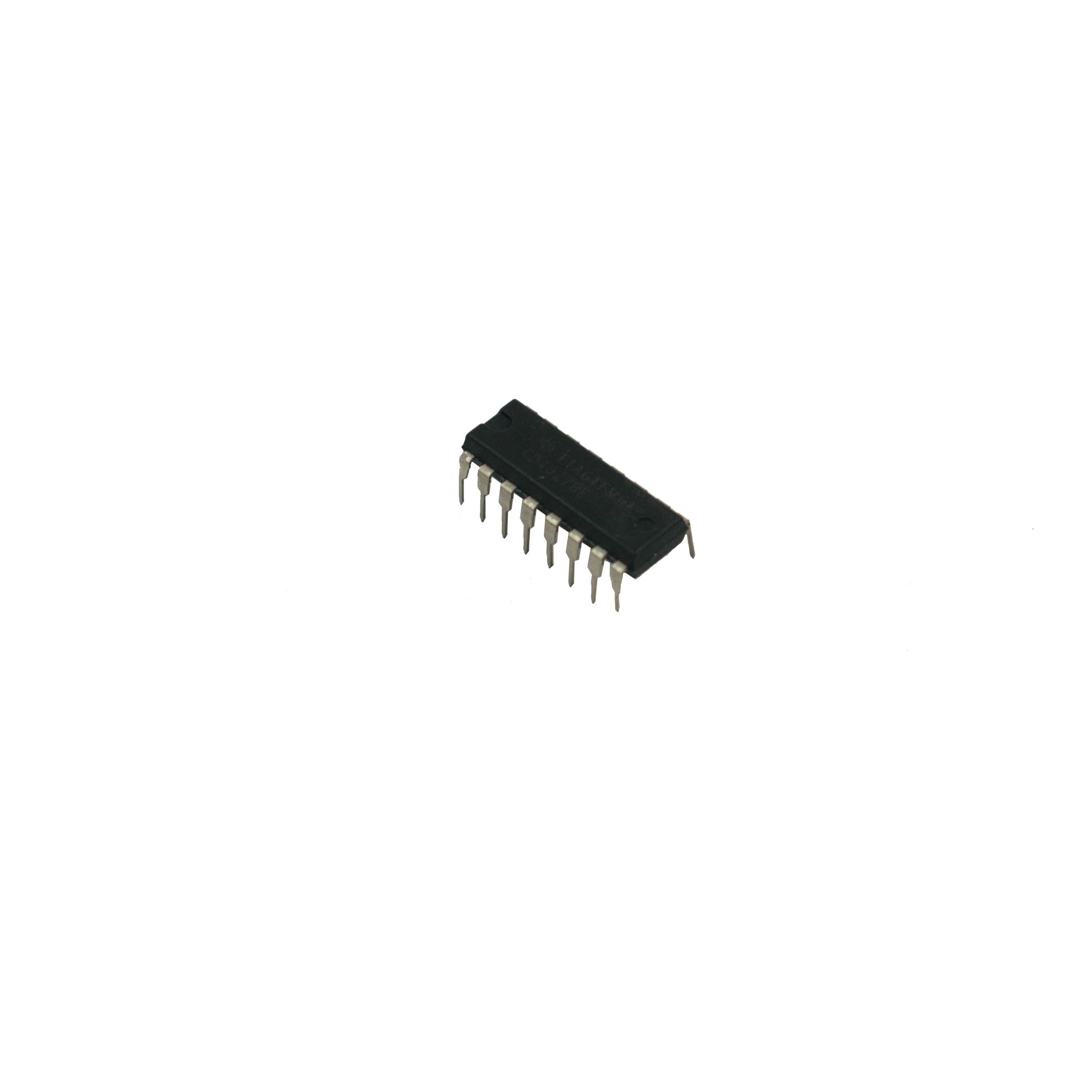

CD4013 Dual D-Flip-Flop IC(Pair of 5)

CD4013 Dual D Flip-Flop IC

The CD4013 is a versatile and reliable integrated circuit that is perfect for a variety of electronic projects. This monolithic complementary MOS (CMOS) chip features two independent D-type flip-flops with asynchronous set/reset inputs, allowing for easy and precise control of your circuit. With a high-voltage rating of 20V and a clock frequency of up to 24 MHz, this dual D flip-flop is capable of handling a wide range of applications. Its standardized symmetrical output characteristics and balanced outputs make it a breeze to integrate into your designs. Plus, with a maximum input current of only 1µA, this chip is incredibly energy efficient. Made in China, this high-quality IC is sure to impress.

Features:

1. High-Voltage Type (20V Rating)
2. Asynchronous Set-Reset Capability
3. Static Flip-Flop Operation
4. Retains State Indefinitely With Clock Level Either 'High' Or 'Low'
5. Medium-Speed Operation- 16 MHz (Typ.) Clock Toggle Rate at 10V
6. Standardized Symmetrical Output Characteristics
7. 100% Tested for Quiescent Current at 20V
8. Maximum Input Current Of 1-µA at 18 V Over Full Package Temperature Range

Specifications:

1. Part number: CD4013
2. Input type: Standard CMOS
3. Output type: Push-Pull
4. Operating Voltage: 3V-18V DC
5. Channels: 2
6. Clock Frequency (Max): 24 MHz
7. ICC: 600uA
8. IOL (Max): 6.8mA
9. IOH (Max): -6.8mA
10. Features: Balanced outputs, Standard speed (tpd > 50ns), Positive input clamp diode
11. Package: PDIP 14
12. Country of Origin: China
