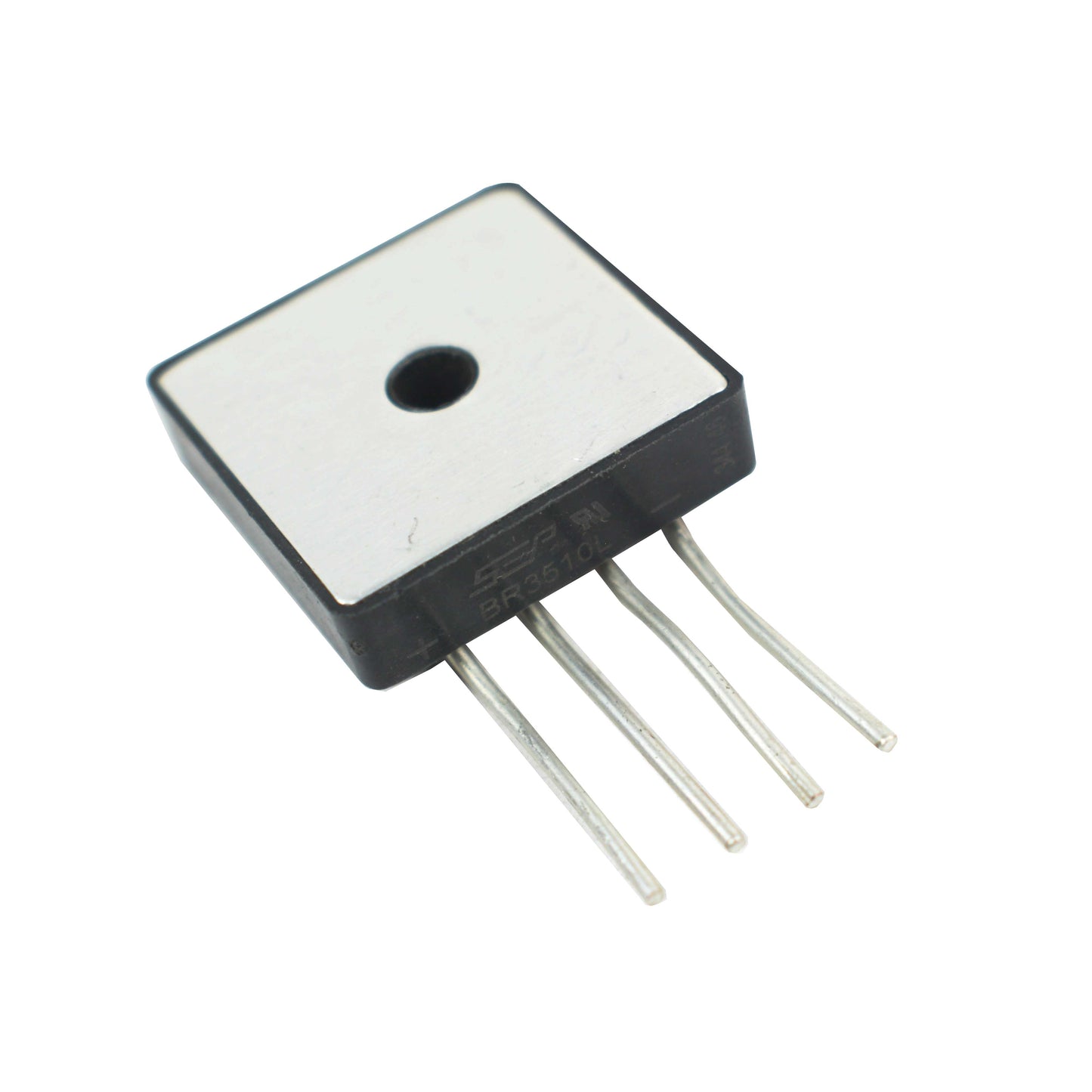

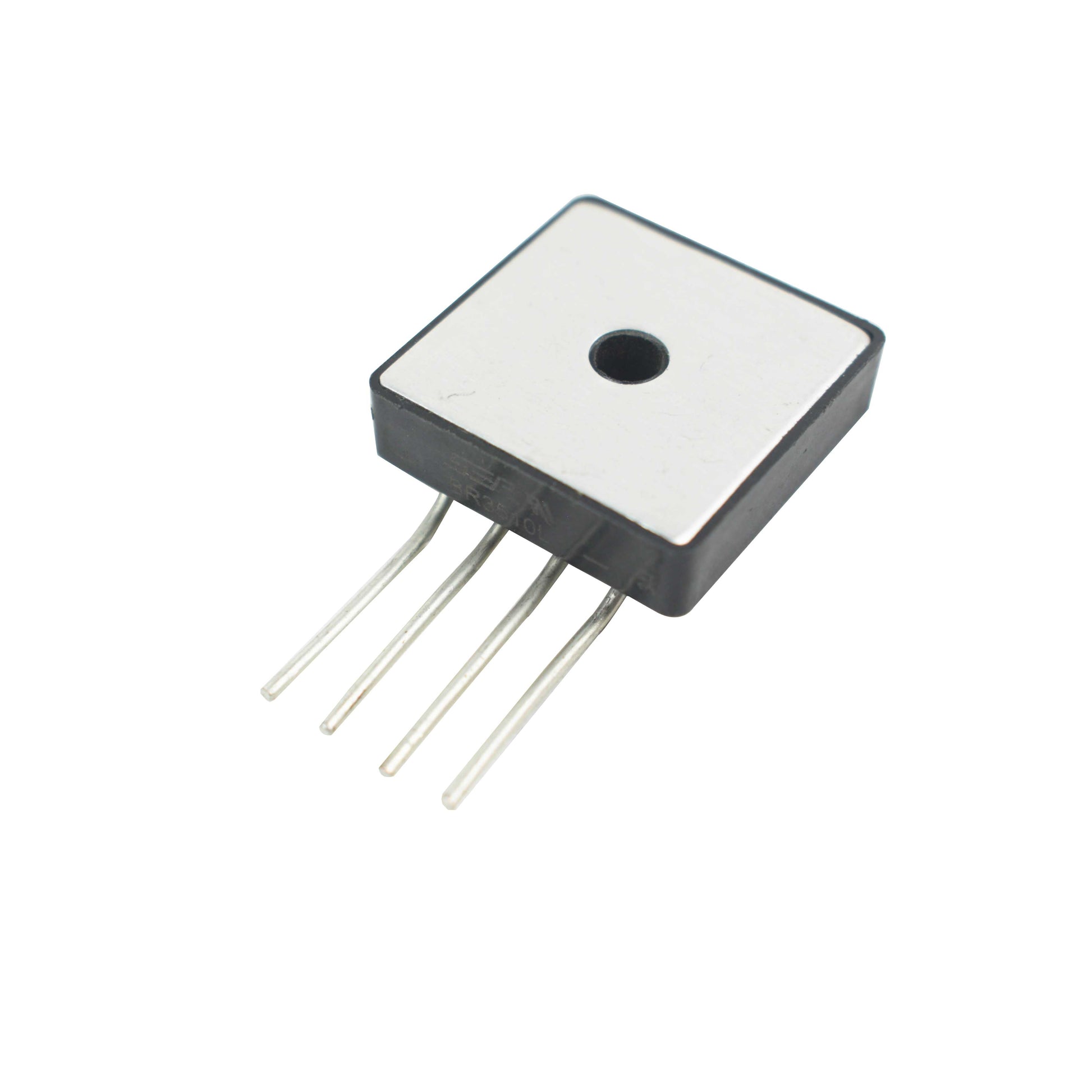

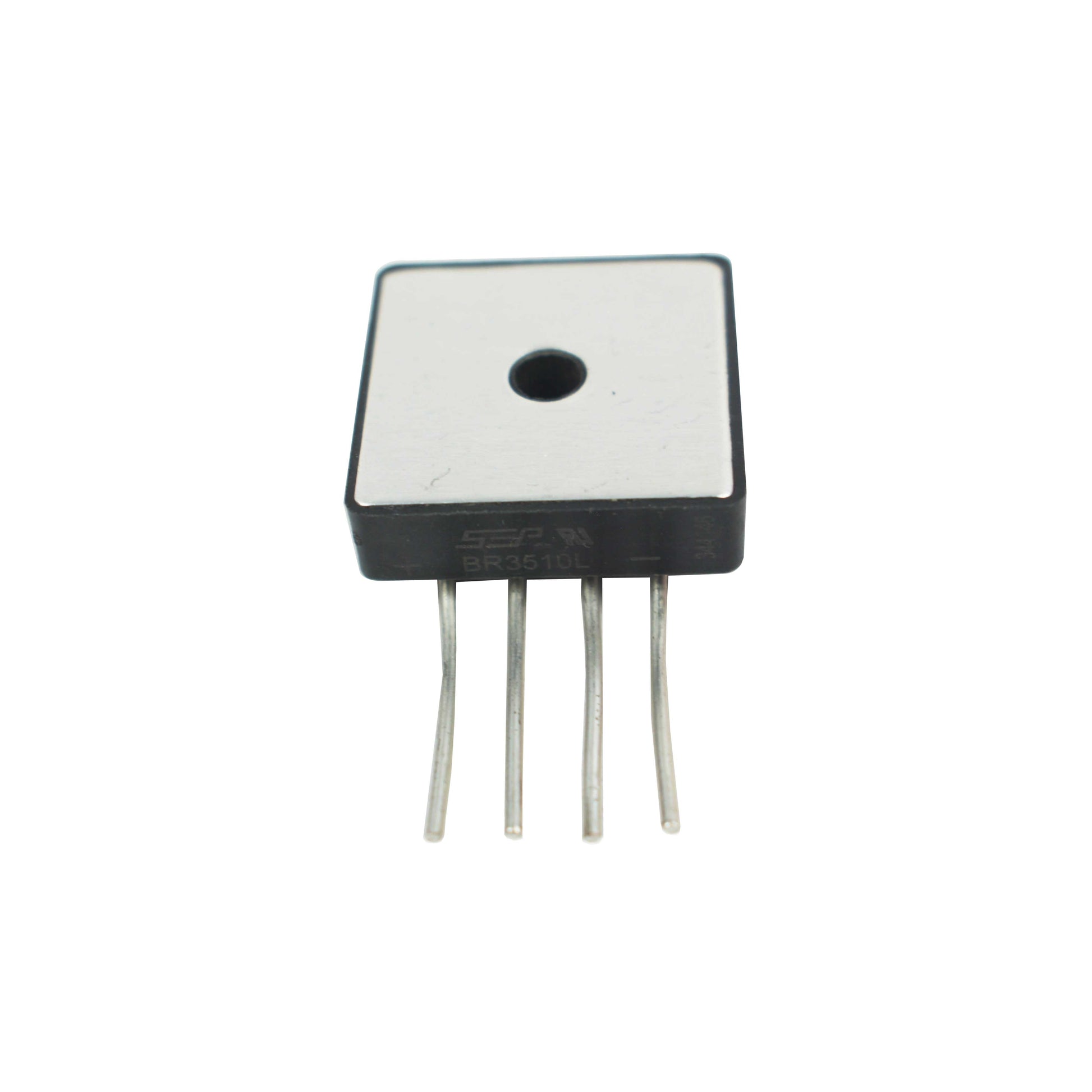

BR3510L 1000V, 35A Single-Phase Silicon Bridge Rectifier

Product Title: BR3510L 1000V 35A Single Phase Silicon Bridge Rectifier

The BR3510 is a highly versatile bridge rectifier diode designed for single-phase applications. With a maximum AC voltage withstand of 700V and a maximum DC current handling of 35A, this IC is suitable for a wide range of applications. Its reverse breakdown voltage of 1000V and low forward voltage drop of 1V make it a unique and efficient choice for rectification purposes.

One of the standout features of the BR3510 is its high surge current capability of 400A, making it a reliable and durable option for demanding applications. Its compact size and universal faston terminals also make it a convenient choice for various projects. Additionally, the IC boasts a superior thermal design and a ¼' hole thru for #8 screw, ensuring optimal performance and ease of use.

Specifications:

1. Model: BR3510
2. Type: Bridge rectifier diode
3. Working Peak Reverse Voltage: 1000V
4. RMS Reverse Voltage: 700V
5. Average Forward Rectified Output Current: 35A
6. Peak Reverse Current at 25°C: 10µA
7. Operating and Storage Temperature Range: -55°C to 150°C
8. Country of Origin: China
