Bi-Colour LED 5mm ( Red & Yellow Green) Common Cathode White Diffused Lens (Pack of 100)
Free Shipping
For all orders over ₹ 1999
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Hotline Order:
Mon - Sat: 10AM - 07PM
+91 8929620302

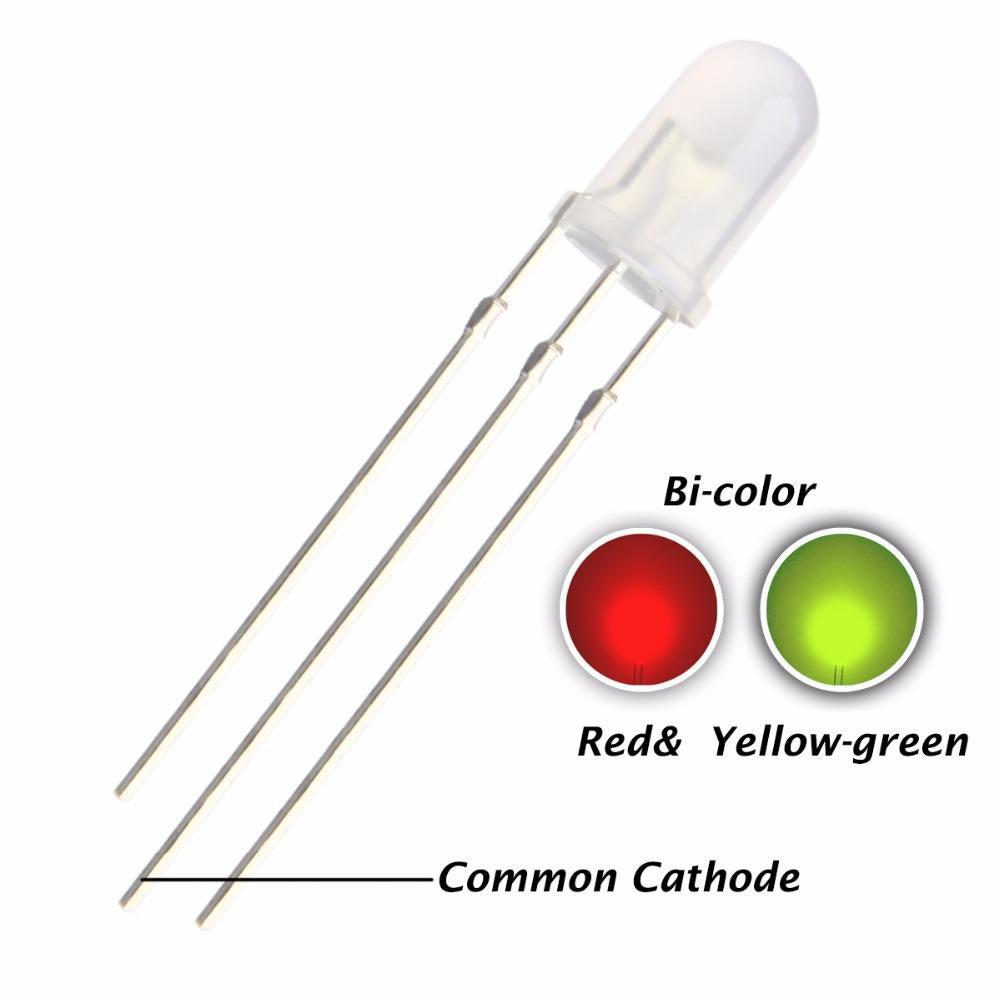

There are three legs on a Bi-Color LED. It has the ability to emit light in two different colours. Bi-Colour LEDs are classified as either Common Cathode or Common Anode. This is a common cathode Bi-Colour LED. It means that the Cathode for both the colour of LED is common, and the colour of LED can be controlled using the anode. This LED emits two colours Red & Yellow Green
 |  |
Specification
| Type | Common Cathode |
| LED Diameter | 5mm |
| LED Colour | Red/ Yellow Green |
| Forward Voltage | 2.0V |
| Forward Current | 20mA |
| Lens Colour | White Diffused |
| Max. Reverse Voltage | 5.0V DC |
| Max. Reverse Current | 30mA |
| Operating Temperature | -40°C~80°C |
| Country of Origin | China |
Add your review
Your email address will not be published. Required fields are marked *
Please login to write review!
Looks like there are no reviews yet.
