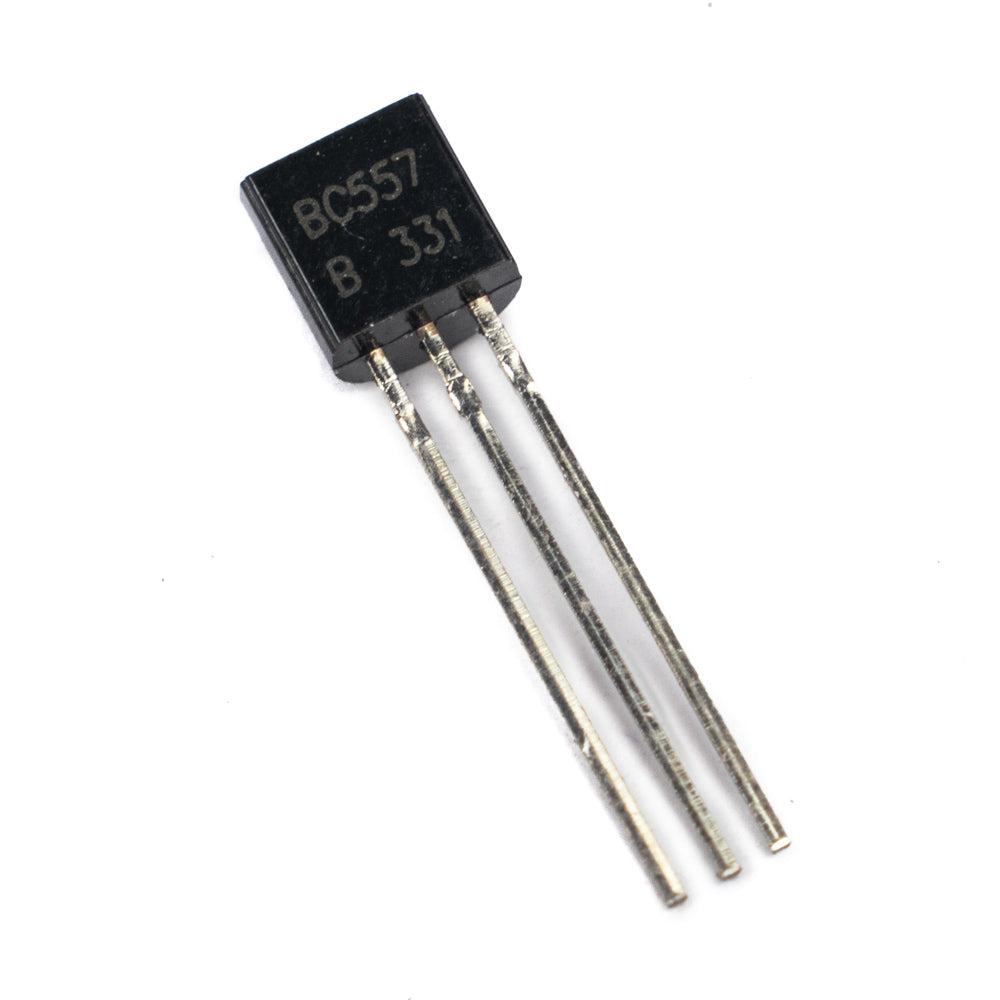

BC557 PNP General Purpose Transistor 45V 100mA TO-92 Package (Pack of 100)
Free Shipping
For all orders over ₹ 1999
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
Hotline Order:
Mon - Sat: 10AM - 07PM
+91 8929620302
The BC557 is a general-purpose transistor that may be utilised in electrical circuits as an amplifier or a switch. This transistor's hFE ratings vary from 125 to 800, making it perfect for use as an amplifier in electrical circuits such as audio signal amplification. The PNP transistor is a type of transistor in which one n-type material is doped with two p-type materials. It is a device that is controlled by the current. Both the emitter and collector currents were controlled by the small amount of base current.
Features
- Its used in portable radios
- Its mounting style is through hole
- Its Continuous Collector Current -100mA
Specifications:
| Part Number | BC557 |
| Transistor Polarity | PNP |
| Collector-Base Voltage | -50V |
| Collector Emitter Voltage | -45V |
| Continuous Collector Current | -100mA |
| Maximum DC Current Gain | 800 |
| Power Dissipation | 500mW |
| Package Type | To-92 |
| Country of Origin | China |
