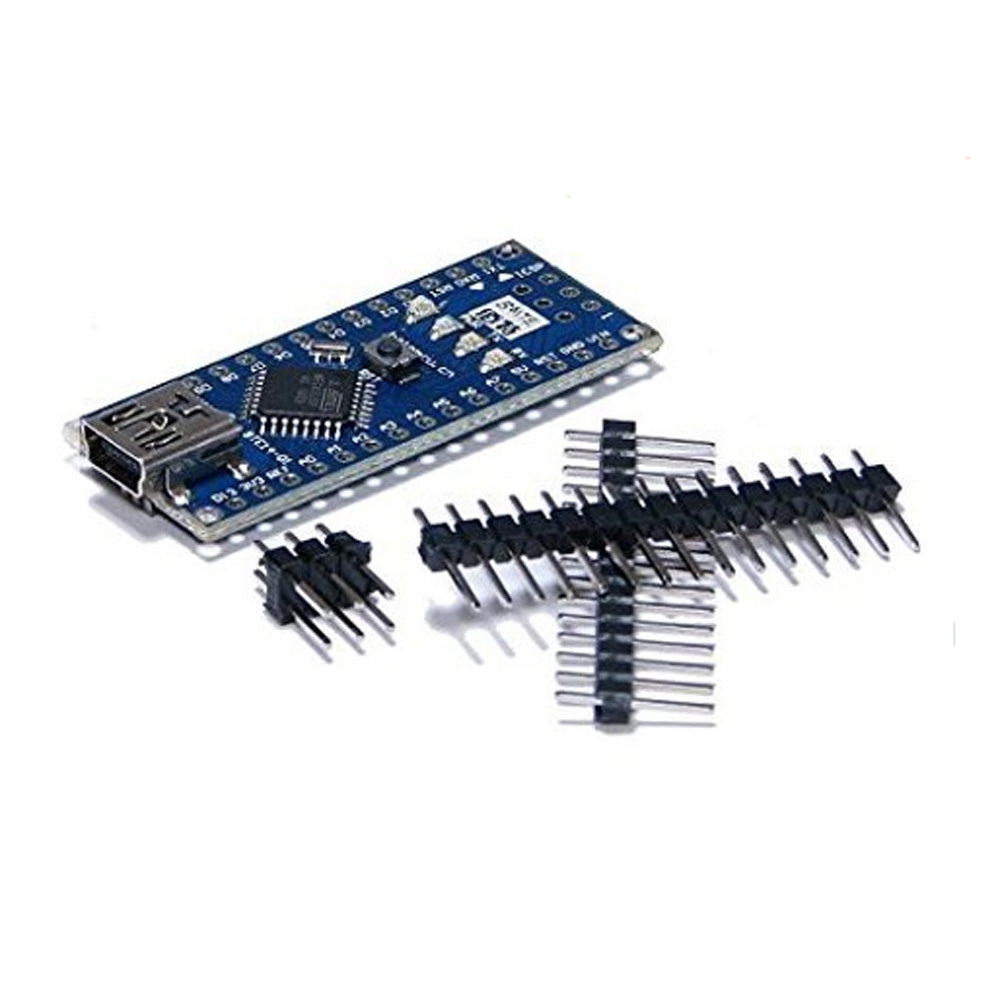

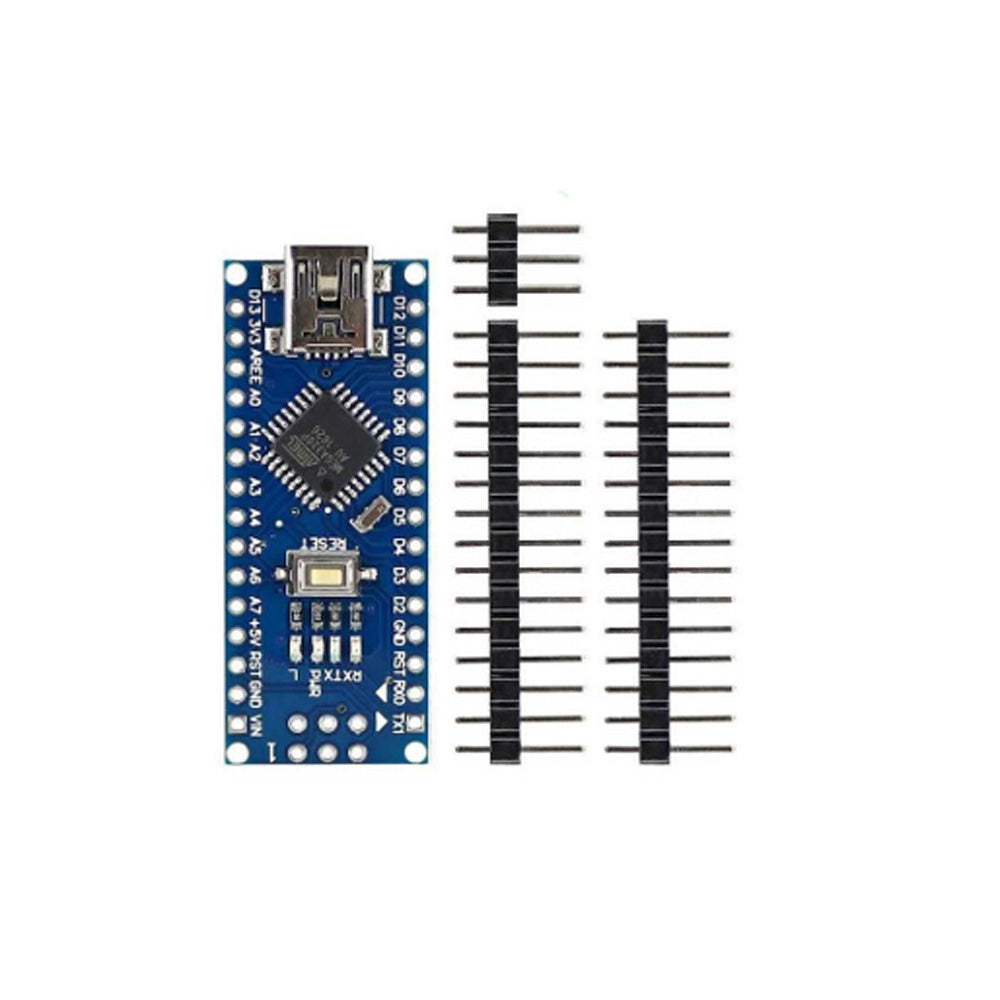

Arduino Nano R3 Atmega328P (Pin Unsoldered)

Arduino Nano R3 Atmega328P (Pin Unsoldered)

Rs. 364.00
Rs. 393.40 Rs. 364.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Explore the Arduino Nano R3 - a compact, breadboard-friendly board with ATmega328P microcontroller. Perfect for beginners and DIY electronics projects. Shop!


Pin Configuration


D0 (Rx) & D1 (Tx) Used to receive and transmit TTL serial data
D2 & D3 These pins can be configured to trigger an interrupt on a low value, a rising or falling edge, or a change in value
D3, D5, D6, D9, D10, D11 Provide 8-bit PWM output with the analog Write function
D11 (MOSI), D12 (MISO) & D13 (SCK) These pins support SPI communication
A4 (SDA) & A5 (SCL) Support I2C (TWI) communication using the Wire library
AREF Reference voltage for the analog inputs
Reset Bring this line LOW to reset the microcontroller

Features

  • Automatic reset during program download
  • Power OK blue LED
  • Green (TX), red (RX), and orange (L) LED
  • Auto-sensing/switching power input
  • Small mini-B USB for programming and serial monitor
  • ICSP header for direct program download
  • Standard 0.1” spacing DIP (breadboard friendly)
  • Manual reset switch
Specifications
Microcontroller Atmel ATmega328P
Operating Voltage (logic level) 5 V
Input Voltage (recommended) 7-12 V
Input Voltage (limits) 6-20 V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
Country of Origin China
