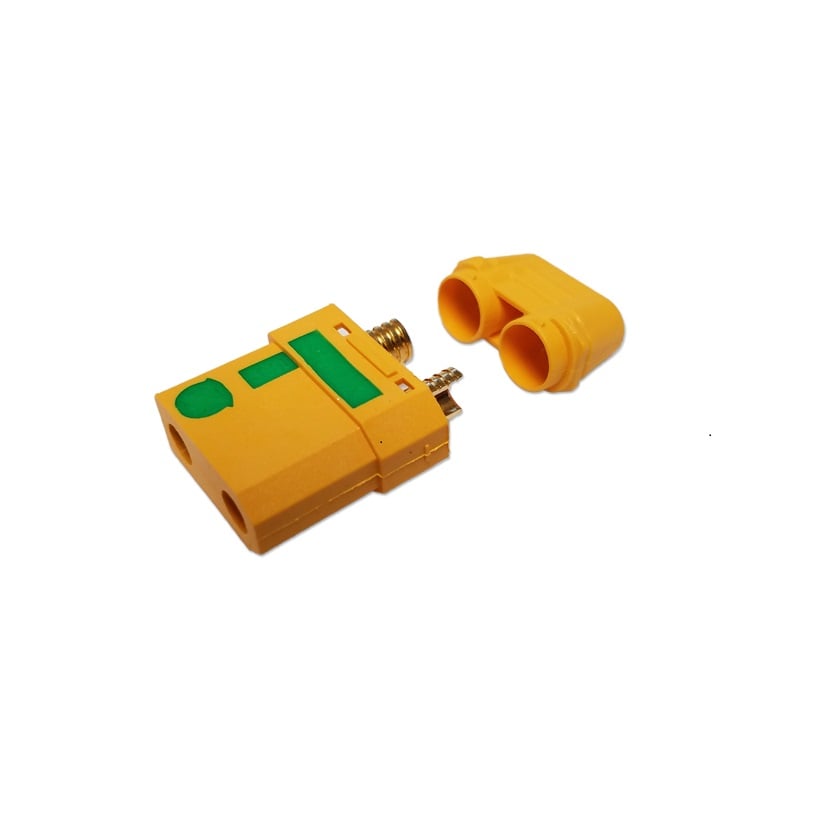

XT90S Anti Spark Connector with Housing-Female

Product Title: Amass XT90-S Anti-Spark Connector with Housing Female

Product URL: https://www.electratraders.com/products/amass-xt90s-anti-spark-connector-with-housing-female

This reliable connector is designed to provide protection against shorting and reverse polarity. Its housing shape and semicircular solder terminals make it easy to install wires, while its ability to accept up to 8AWG wires and sustain 90A+ continuous current make it a versatile choice for various applications. The XT90-S contact material is made of brass with a gold flash plating, ensuring a strong and reliable connection. With a rated operating voltage of 500VDC and a current handling capacity of 90A, this connector is suitable for high-power applications. Its compact size of 49 x 21 x 10mm and lightweight design of only 10g make it easy to incorporate into any project. The UL94V-0 flammability rating and operating temperature range of -20 to 120°C make it a safe and durable choice. Available in a vibrant yellow color, this connector is a must-have for any electrical project.

Connector Type: XT90-S

Contact Positions: 2

Gender: Female

Metal Connector Size: 4.5mm

Allowed Wire Size (AWG): 14 ~ 8

Rated Operating Voltage (VDC): 500

Current Handling Capacity (A): 90

No. of Contact Points: 2

Contact Material: Brass

Contact Plating: Gold flash

Metal Connector Size (mm): 4.5

Operating Temperature (°C): -20 to 120

Flammability Rating: UL94V-0

Color: Yellow

Dimensions (mm) LxWxH:
