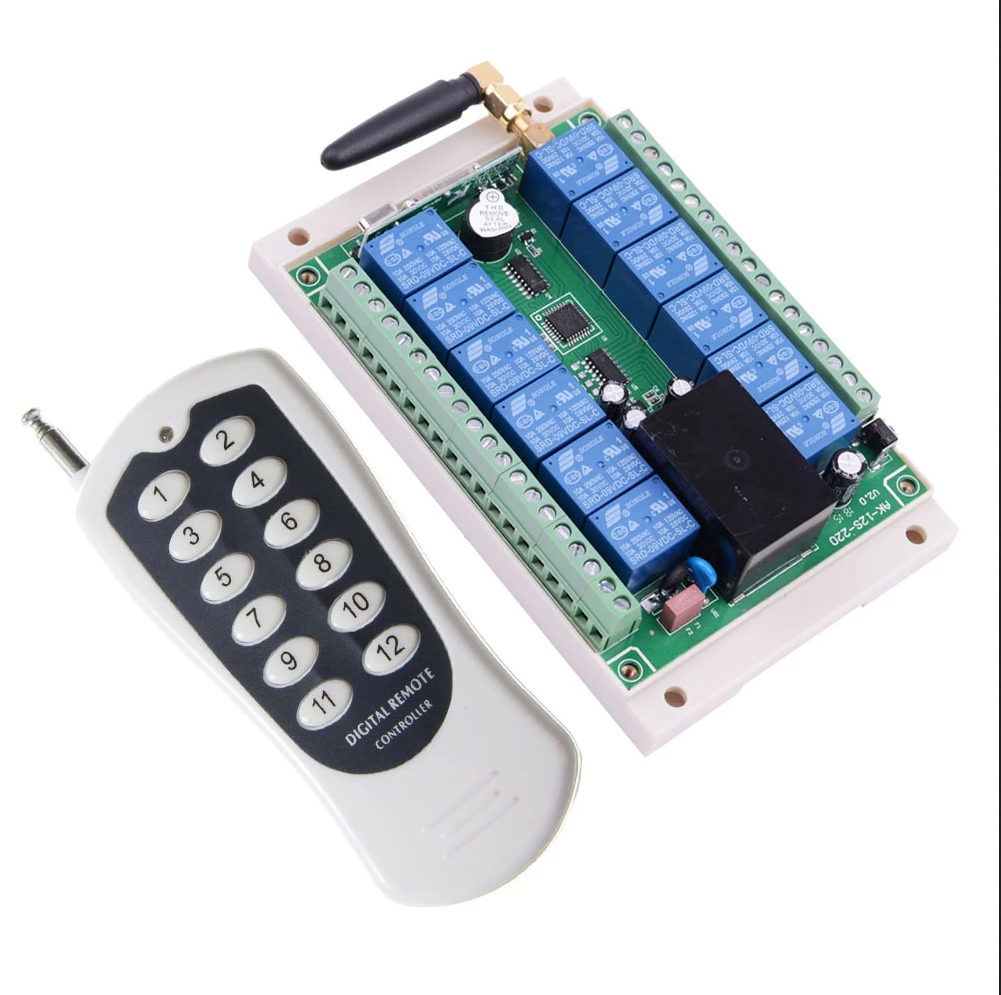

AC 110V 220V 250V 12 CH Remote Control Lighting Switch 12 channel 10A Relay 220V Receiver Industrial level 12 button Transmitter

It's a, AC 110V 220V 250V 12 CH Remote Control Lighting Switch 12 channel 10A Relay 220V Receiver Industrial level 12 button Transmitter.

Specification,

• Model: AK-12F
• Operation Voltage:, DC12V
• Operation Current: ≤35mA
• Operation frequency: 315/144MHz(optional)
• Transmission power: >30mW
• Transmission distance:, 1000m(in empty environment)
• Frequency deviation: ,±0.2MHz
• Transmission rate:, 3-6K
• Encoding chip: PT2262/EV1527/HCS301
• Size: 97*50*14.7mm
• Weight: 0.26kg

Controller:

• Working voltage: AC220V
• Working temperature: -40,°C ~+80,°C
• Receive sensitivity: ≥-105dBm
• Operating frequency: 315/433MHz (optional)
• Output Current: ≤3A
• Weight: 0.55KG
• Size:, circuit board: 122*87*17mm; with case: 144.8*91*40 mm
