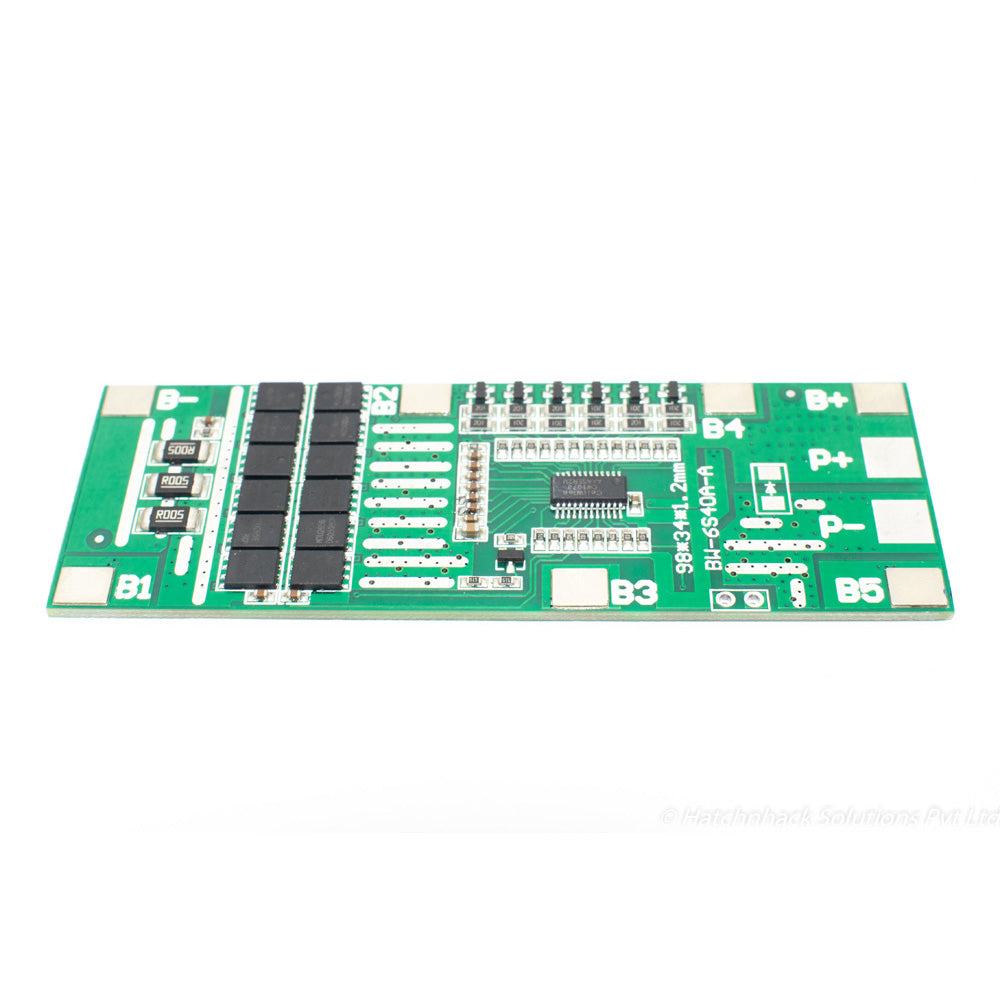

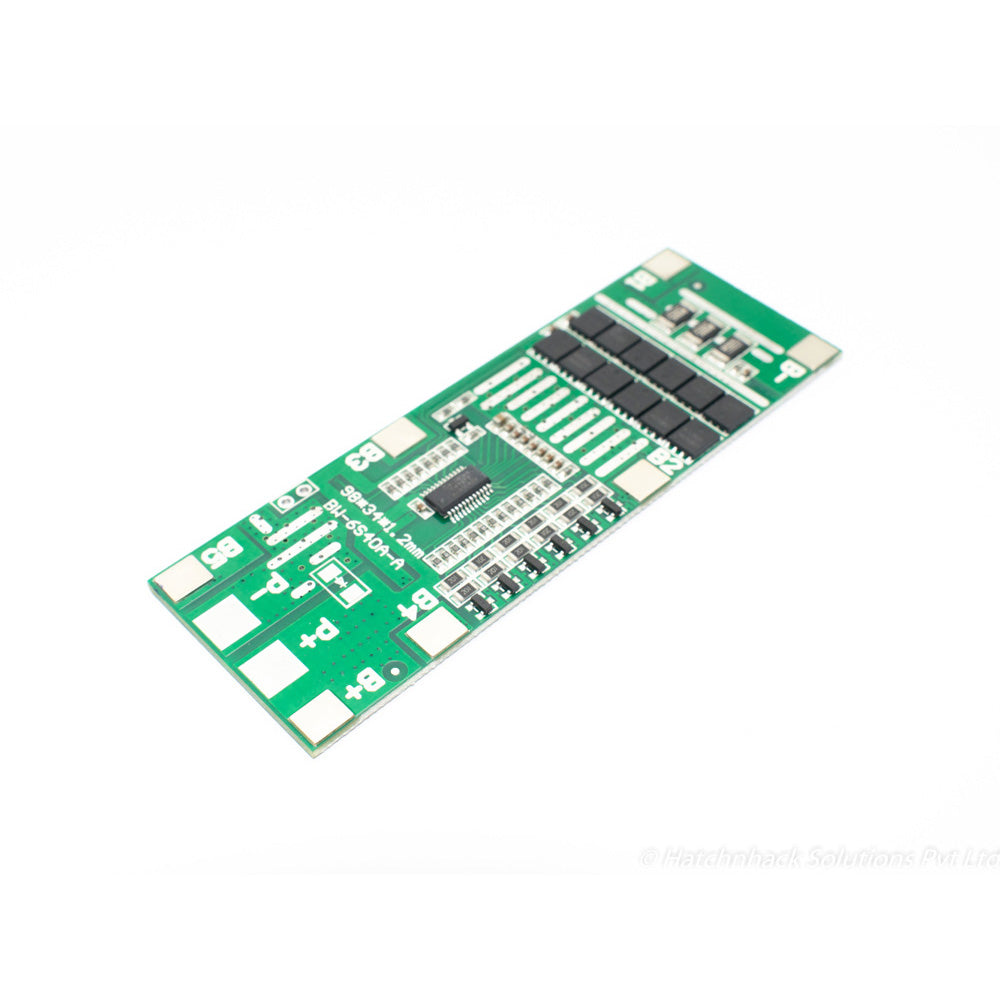

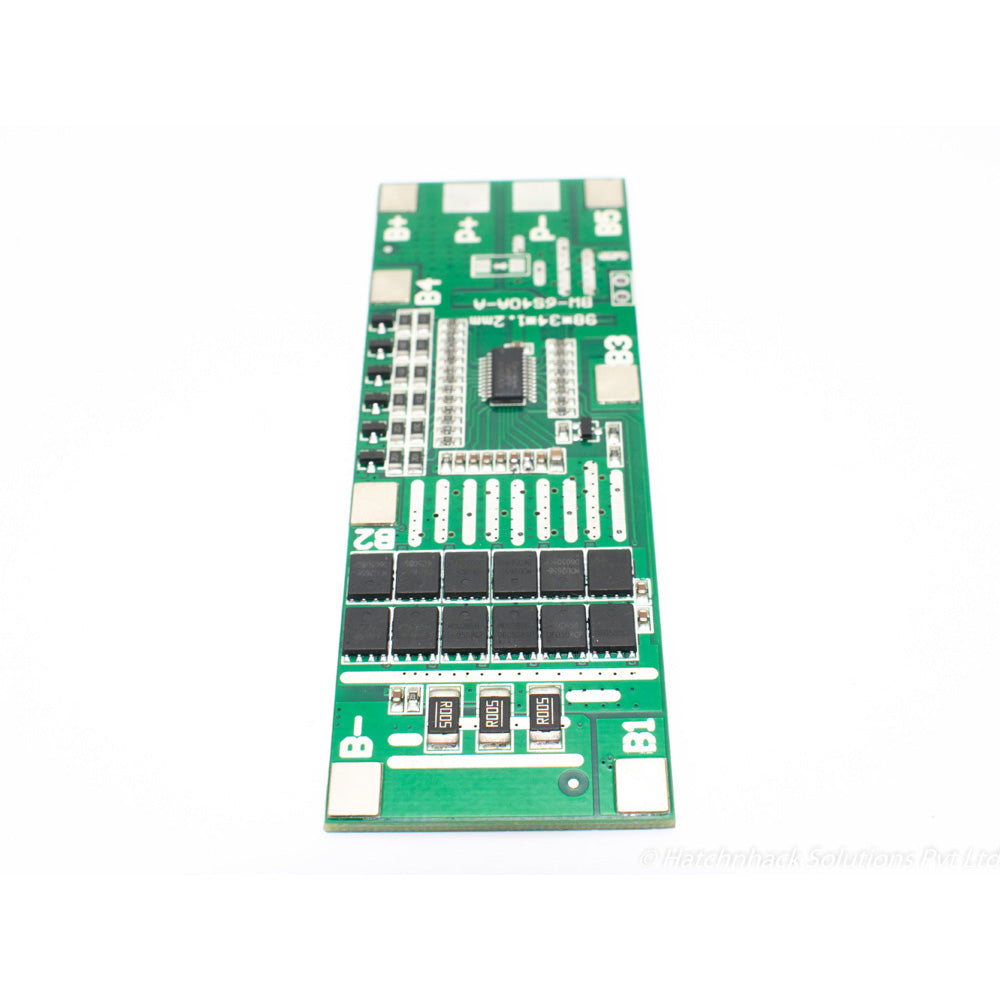

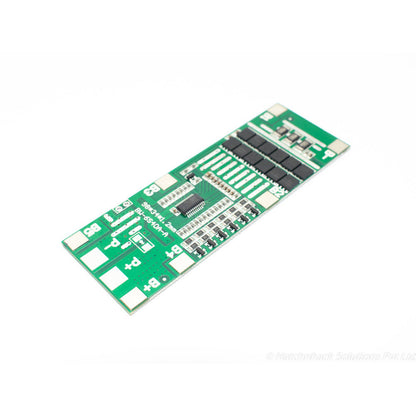

6S 40A 18650 Lithium Battery Protection Board (BMS)
6S 40A 18650 Lithium Battery Protection Board (BMS)
Regular price
Rs. 770.00
Regular price
Rs. 847.00
Sale price
Rs. 770.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
This 6S 40A 18650 Lithium Battery Protection Board has protection against short circuit, over-charge and over-discharge. It is designed to monitor the status of batteries, control charging and discharging. This module can be connected to 6 batteries for charging/discharging. The maximum current for the module is 40A.
It is best suitable for nominal voltage 3.6V, 3.7V lithium battery(Including 18650,26650, lithium polymer batteries).
Specifications
| Battery Support | Max 6 Cells |
| Model | BW-6S40A-A |
| Maximum Working Current | 40A |
| Maximum Continuous Discharge Current | 40A |
| Maximum Instantaneous Discharge current | 70A |
| Charging Voltage | 25.5V |
| Overcharge Detection Voltage | 4.25±0.025V |
| Overcharge Release voltage |
4.15±0.05V |
| Over-discharge detection voltage |
2.7 ± 0.1V |
| Overcurrent protection current |
75±5A |
| Dimension (LxW) | 98x34 (mm) |
| Country of Origin | China |
