4S 14.8V 100A with Balance Charging Li-ion 18650 battery BMS Protection
4S 14.8V 100A with Balance Charging Li-ion 18650 battery BMS Protection
Regular price
Rs. 893.20
Regular price
Rs. 982.80
Sale price
Rs. 893.20
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

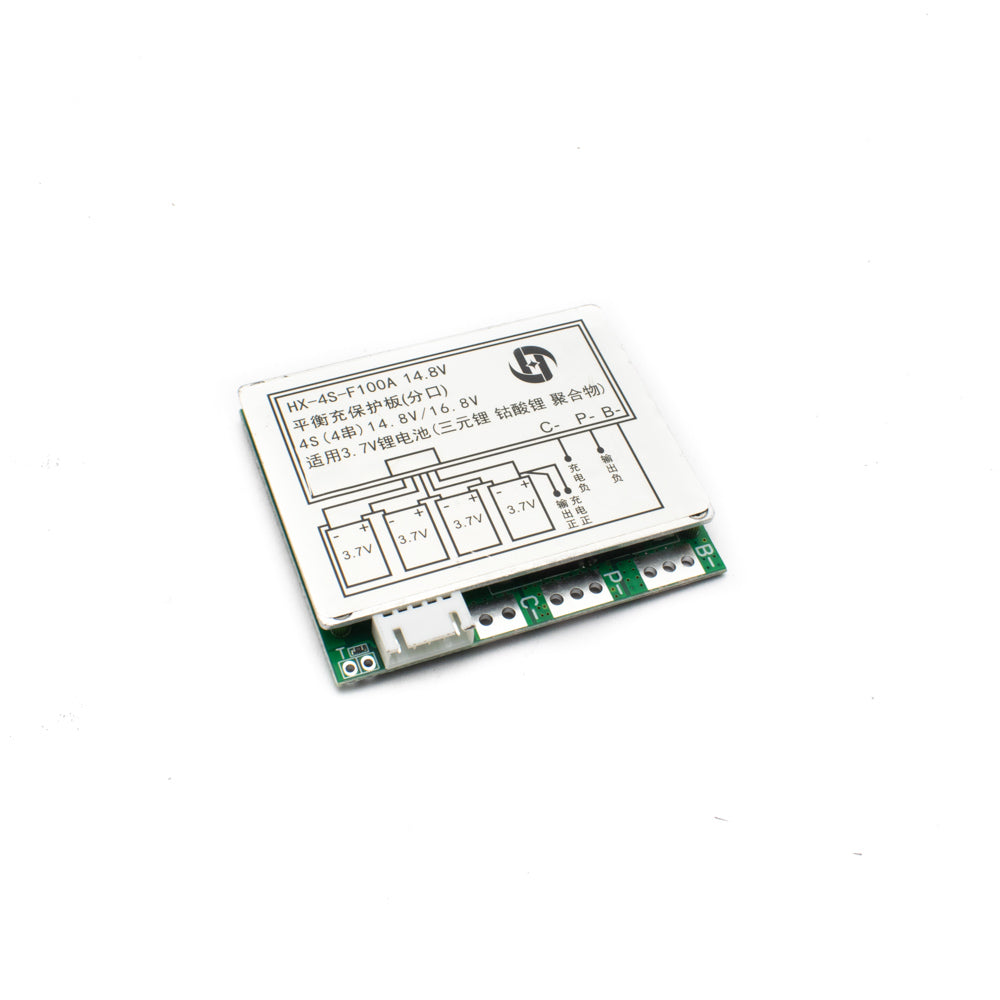

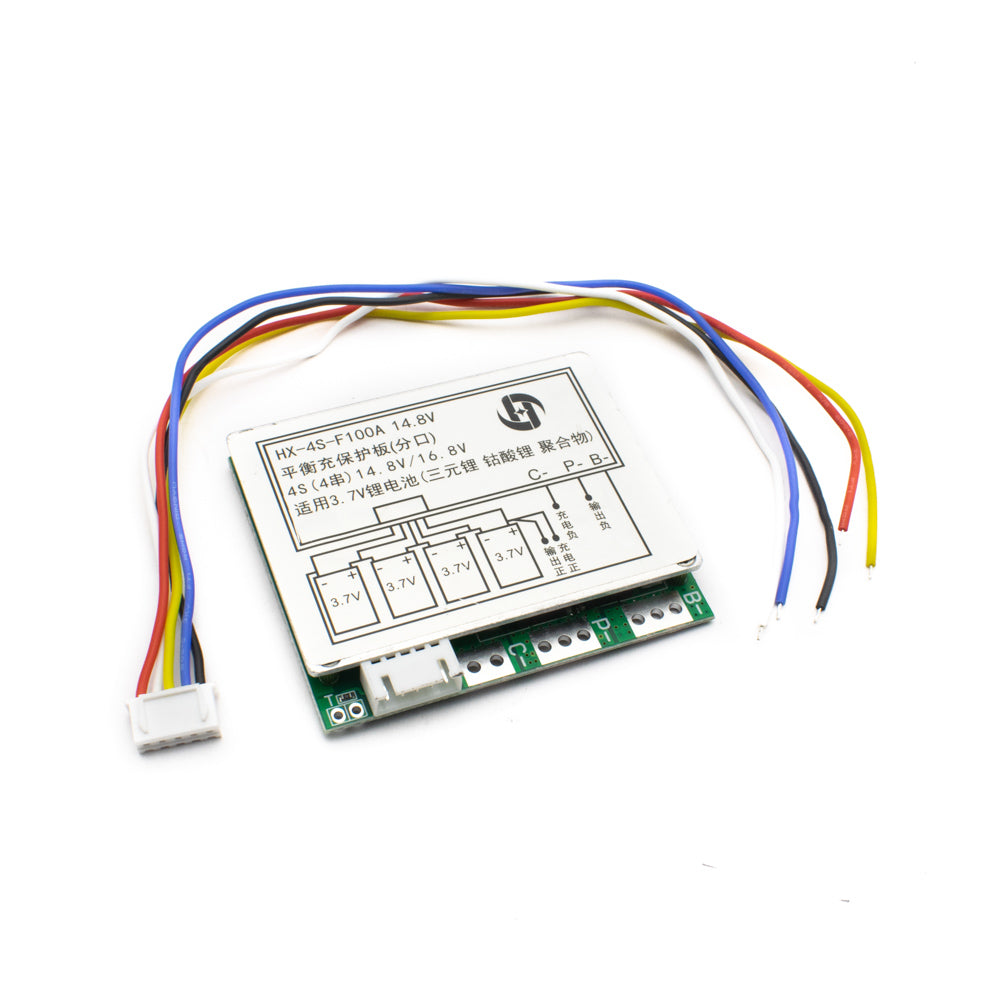

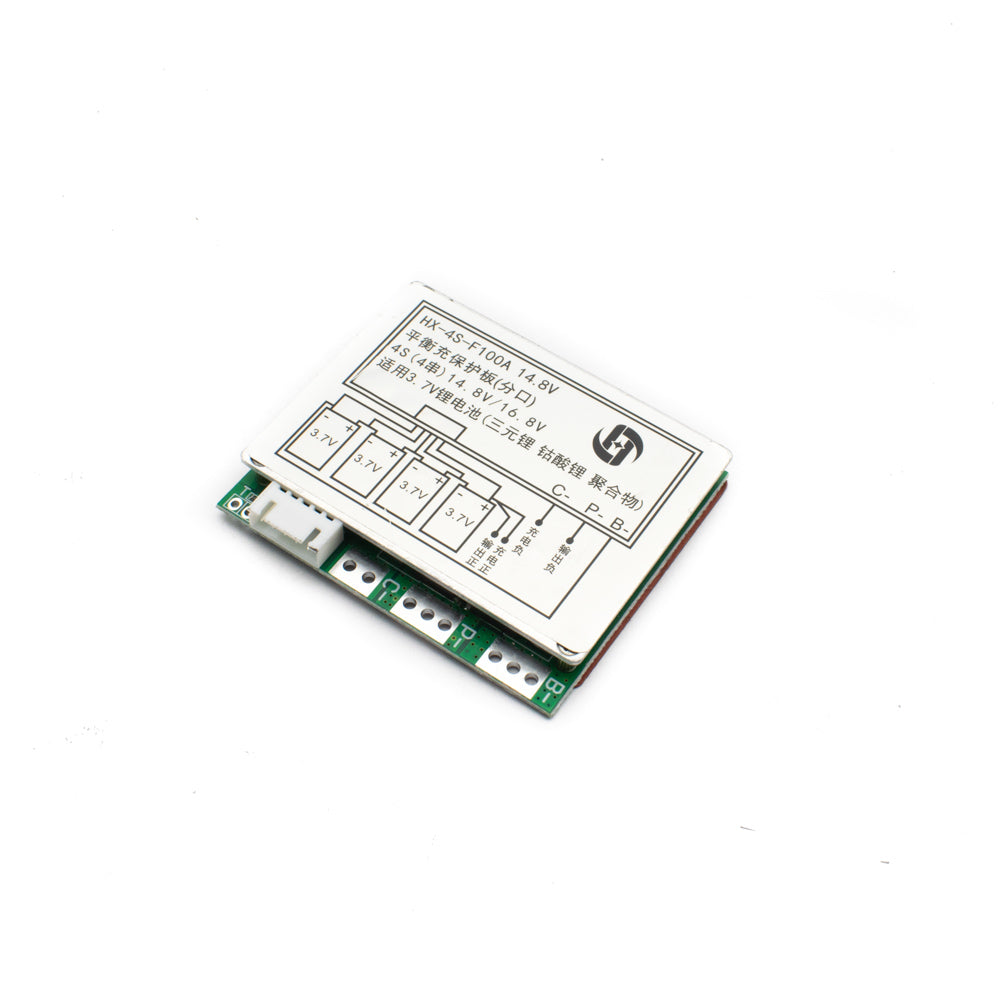

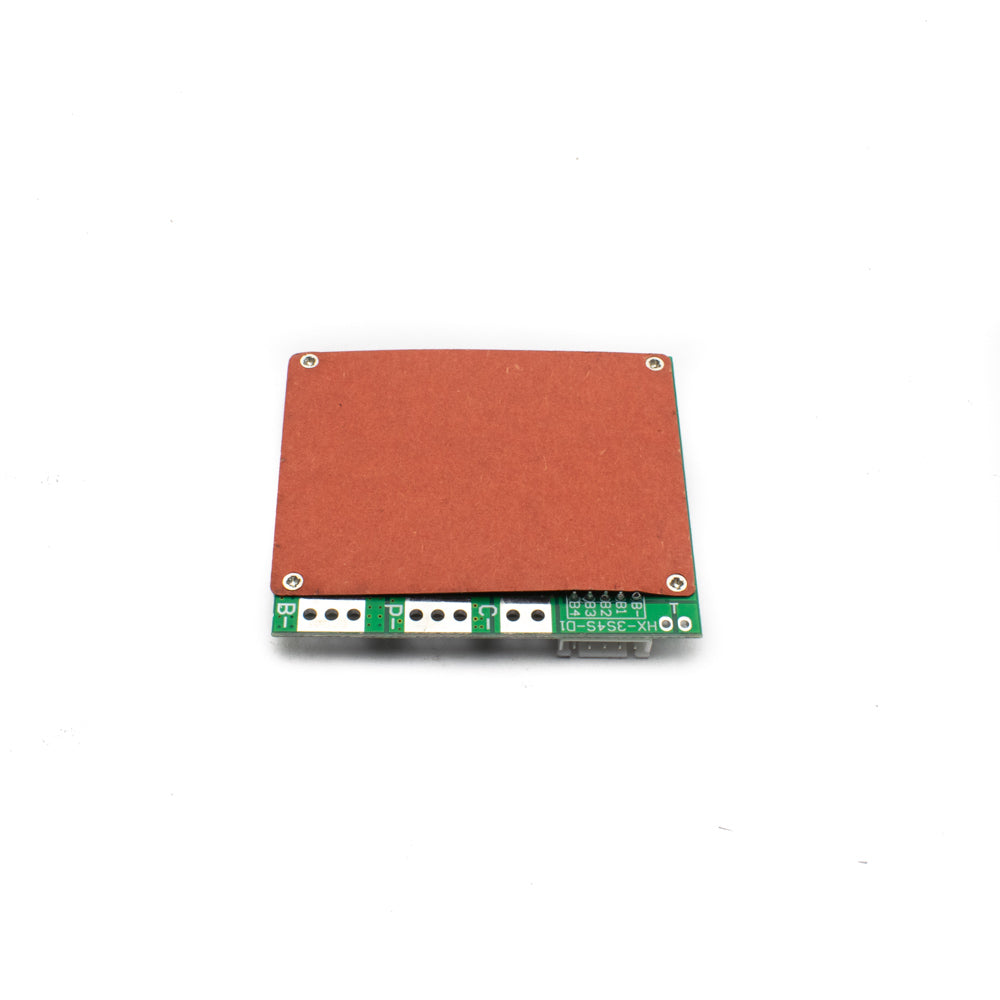

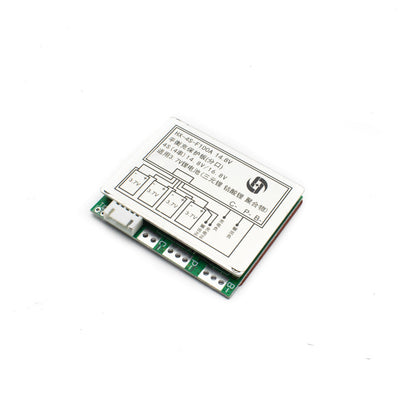

This battery management system (BMS) is a four-string 16.8V Li-ion battery protection board with a balance charging capability. Overcharge protection, over-discharge protection, over current protection, short circuit protection, and temperature protection are all included in this BMS.
Overcharge voltage range: 4.25V±0.05V, upper working current: 100A, upper limit instantaneous current: 120A, overpressure voltage range: 2.5V±0.05V.
Specifications
| Model | HX-4S-F100A |
| Max. Working Current | 100A |
| Max. Instantaneous Current | 120A |
| Over Voltage Range | 4.25V±0.05V |
| Overpressure Voltage Range | 2.5V±0.05V |
| Charging Voltage | 16.8V |
| Charging Current | 10A |
| Short-Circuit Protection | Yes, 250µs delay recovery |
| Size | 70x60x8mm |
| Country of Origin | China |
