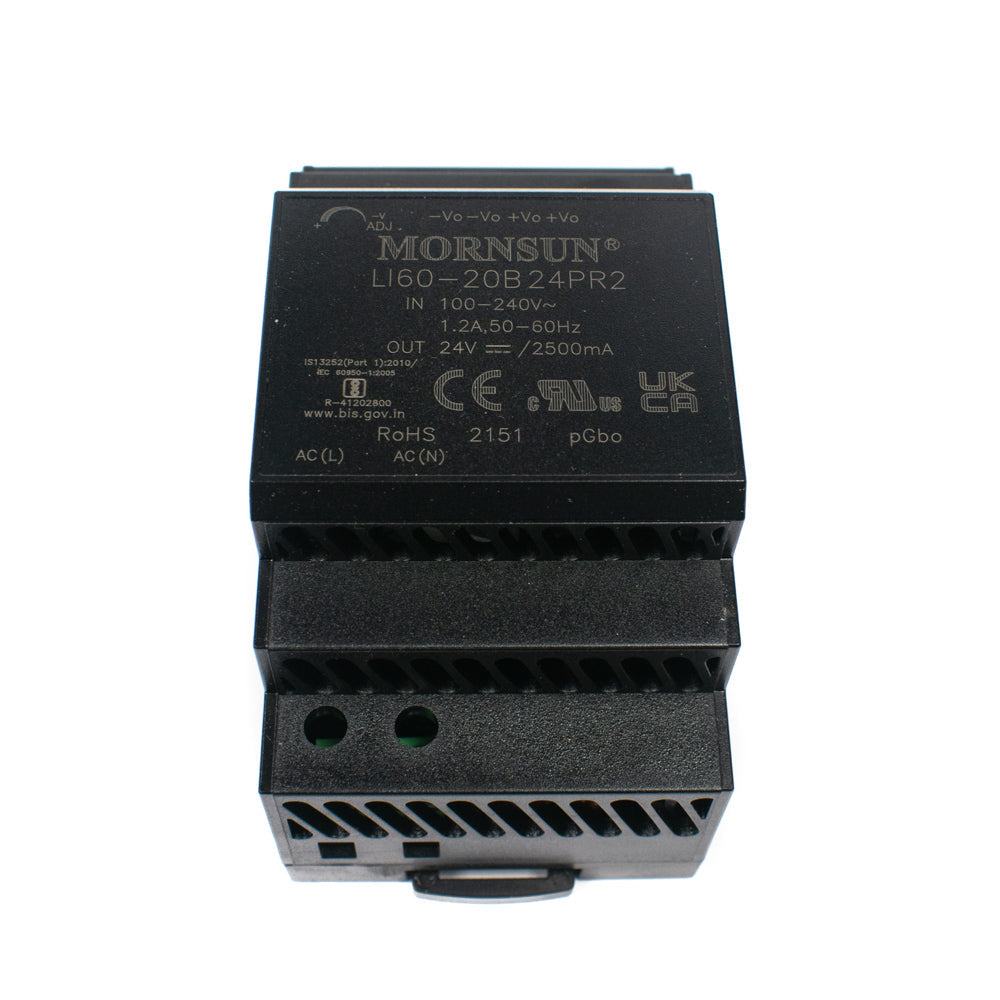

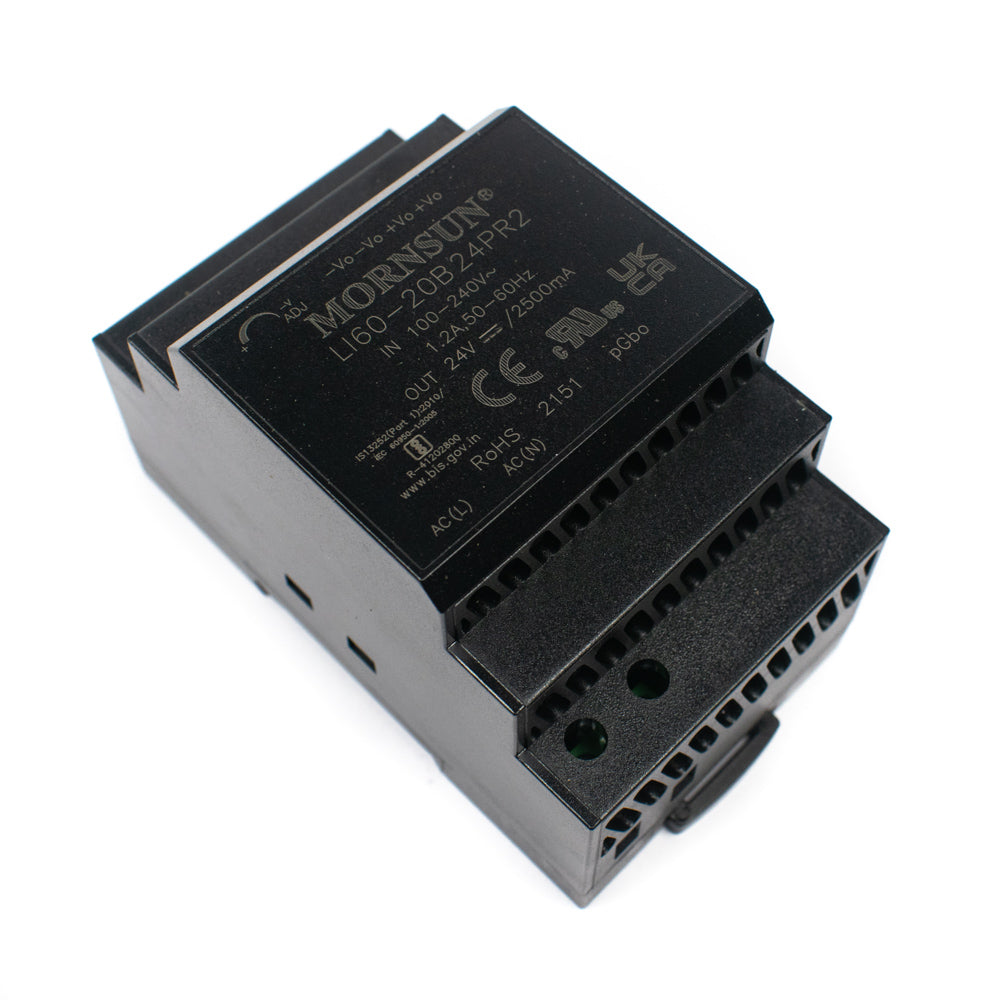

24V 2.5A Mornsun Power Supply (LI60-20B24PR2)

Product Title: LI60-20BxxPR2 Mornsun Power Supply

Description: The LI60-20BxxPR2 is a unique AC-DC series from Mornsun, designed for standard DIN-rail mounting. It offers a cost-effective and energy-efficient solution with high stability and immunity to noise. This product is compliant with international EMC and safety standards, making it a reliable choice for industrial control equipment and harsh environments. With a universal input voltage range of 85-264VAC or 120-370VDC, it can accept both AC and DC inputs. The compact design and low standby power consumption make it ideal for space-saving applications.

Features:

1. Universal 85-264VAC or 120-370VDC input voltage
2. Accepts AC or DC input (dual-use of same terminal)
3. Operating ambient temperature range: -40℃ to +70℃
4. High I/O isolation test voltage up to 4000VAC
5. Industrial product technology design
6. Over-voltage class III (Designed to meet EN61558-1 safety standards)
7. Low standby power consumption, high efficiency
8. Low ripple & noise
9. Output short circuit, over-current, over-voltage protection
10. Withstand 300VAC surge input for 5s
11. DIN rail TS35X7.5/ TS35X15 mountable

Specifications:

1. Brand: Mornsun
2. Model: LI60-20B24PR2
3. Output Voltage: 24V
4. Max. Current: 2.5A
5. Power: 60W
6. Adjustable Voltage Range: 21.6-29V
