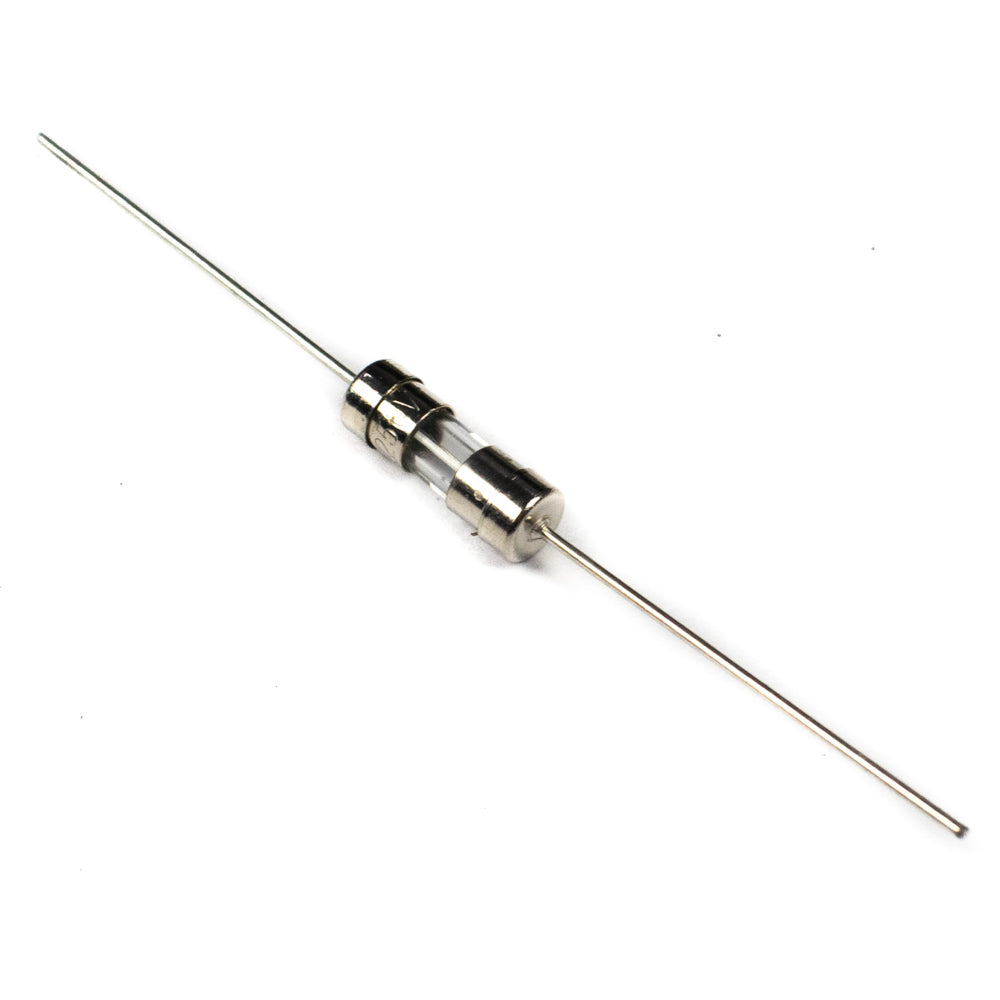

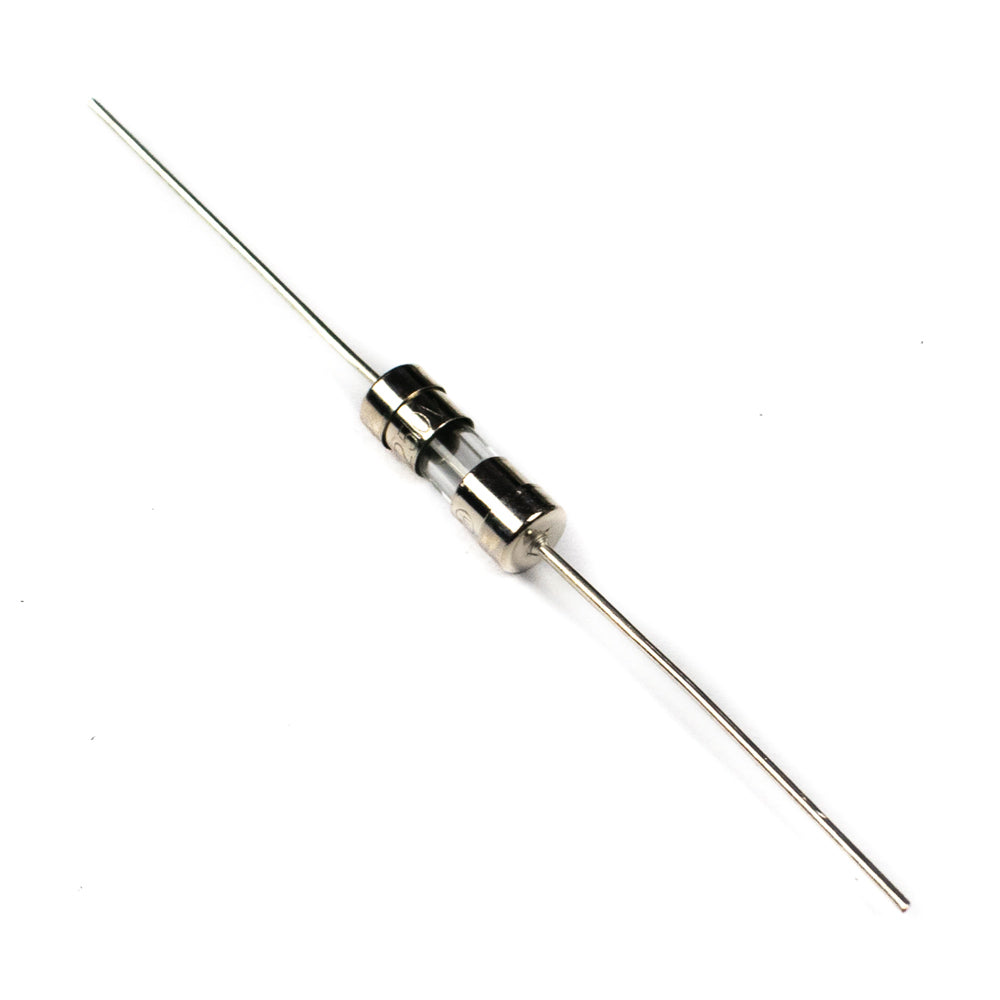

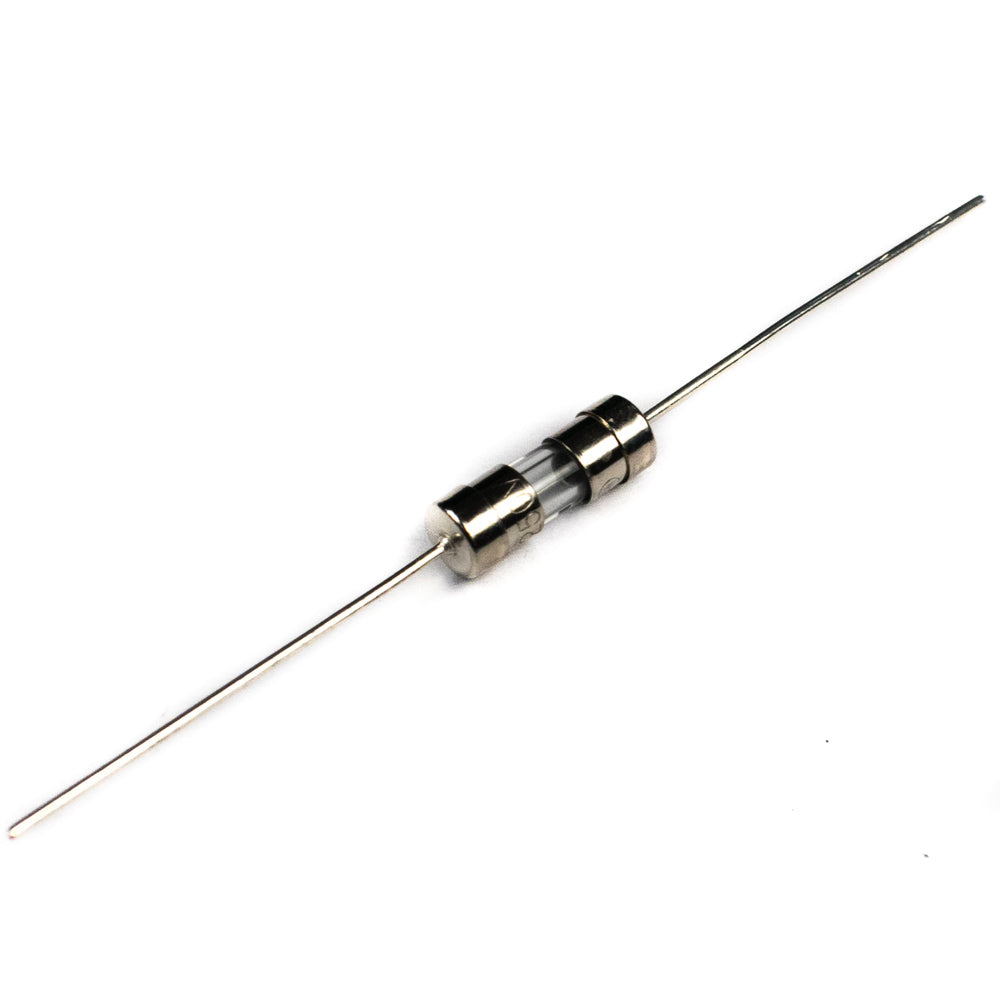

1A Miniature Glass Fuse 3.6x10mm (Pack of 100)
1A Miniature Glass Fuse 3.6x10mm (Pack of 100)
Regular price
Rs. 789.00
Regular price
Rs. 999.00
Sale price
Rs. 789.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Miniature Glass fuses are ideal for providing protection to devices or internal circuits from short circuits and overcurrent. They are deliberately weaker components which, when too much current is drawn, will blow. Once the fuse has blown it will need replacing in order to make the circuit complete and allow the flow of current.
specifications
| Rated Voltage | 250V AC |
| Rated Current | 1A |
| Breaking Capacity | 30A |
| Mounting | Through-hole |
| Material | Glass |
| Endcaps | Nickel-Plated Brass |
| Orientation | Axial Leads |
| Leads Material | Tin-plated Copper |
| Terminal Type | Ferrule |
| Size | 3.6x10mm |
| Country of Origin | China |
