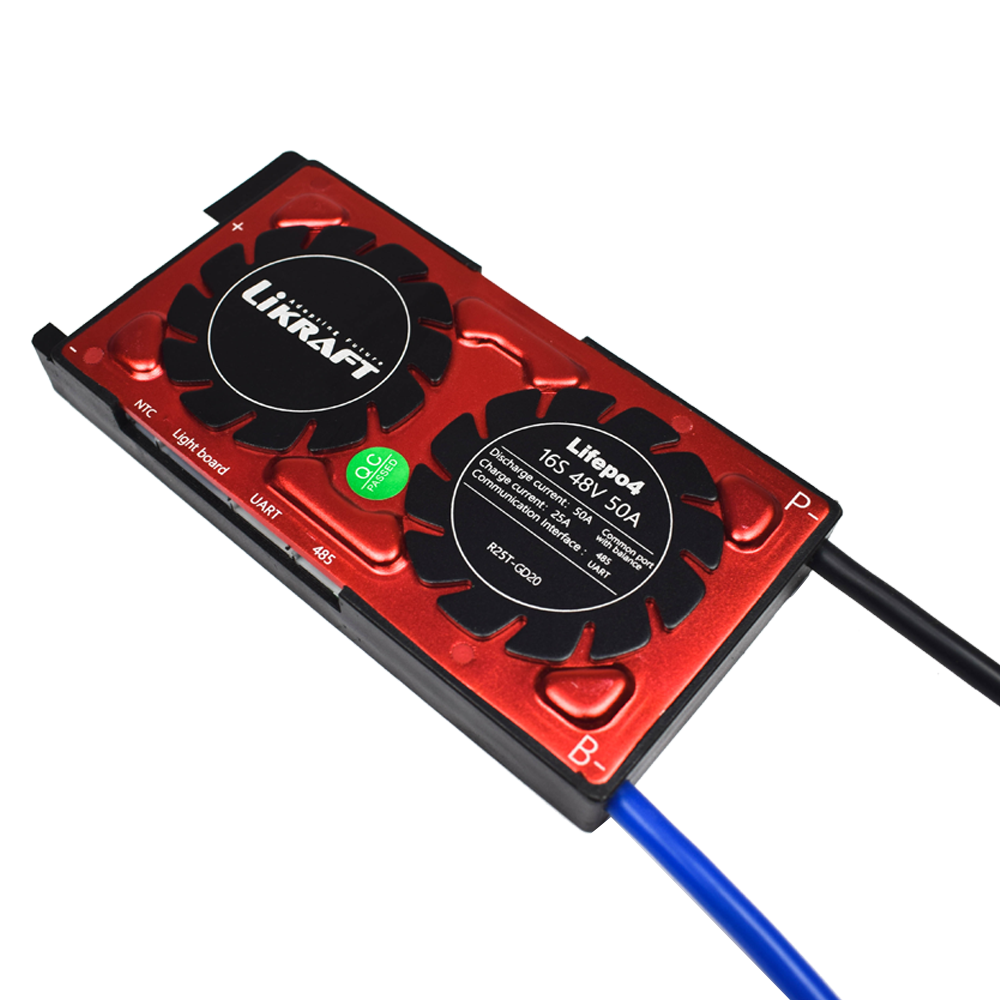

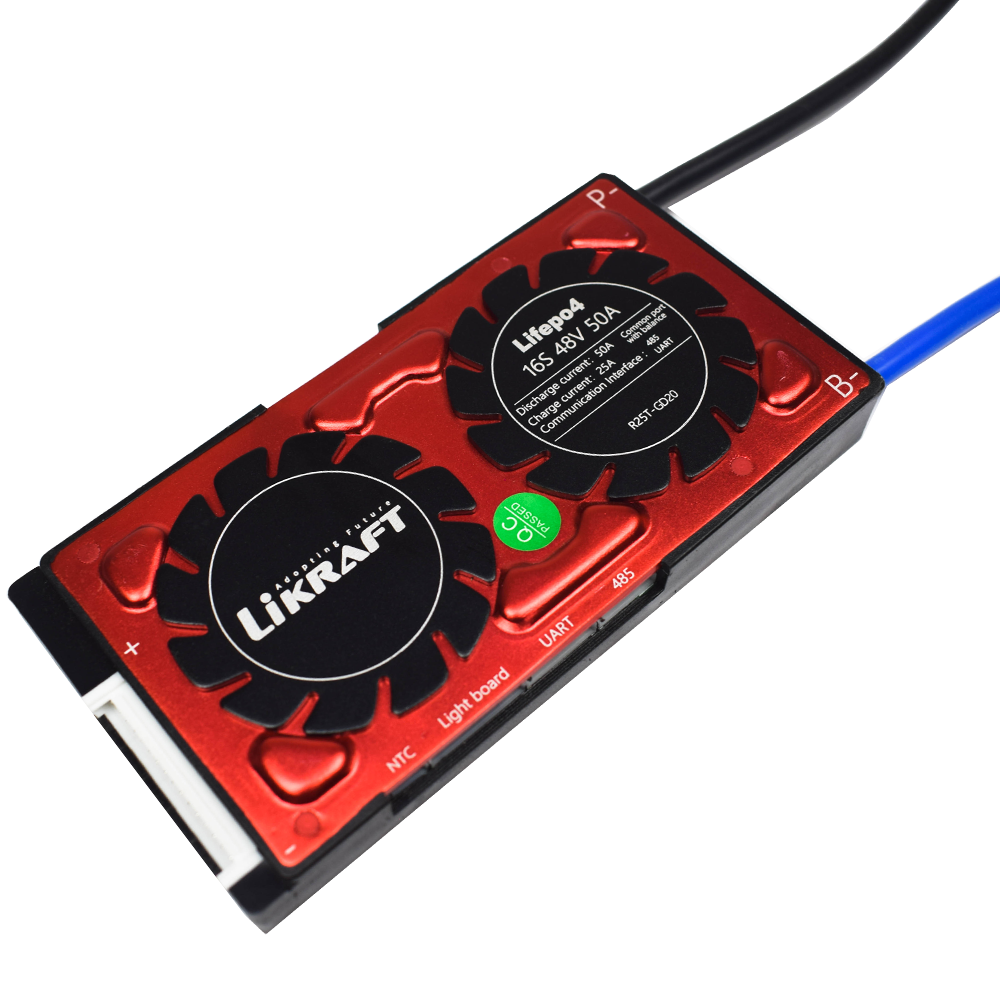

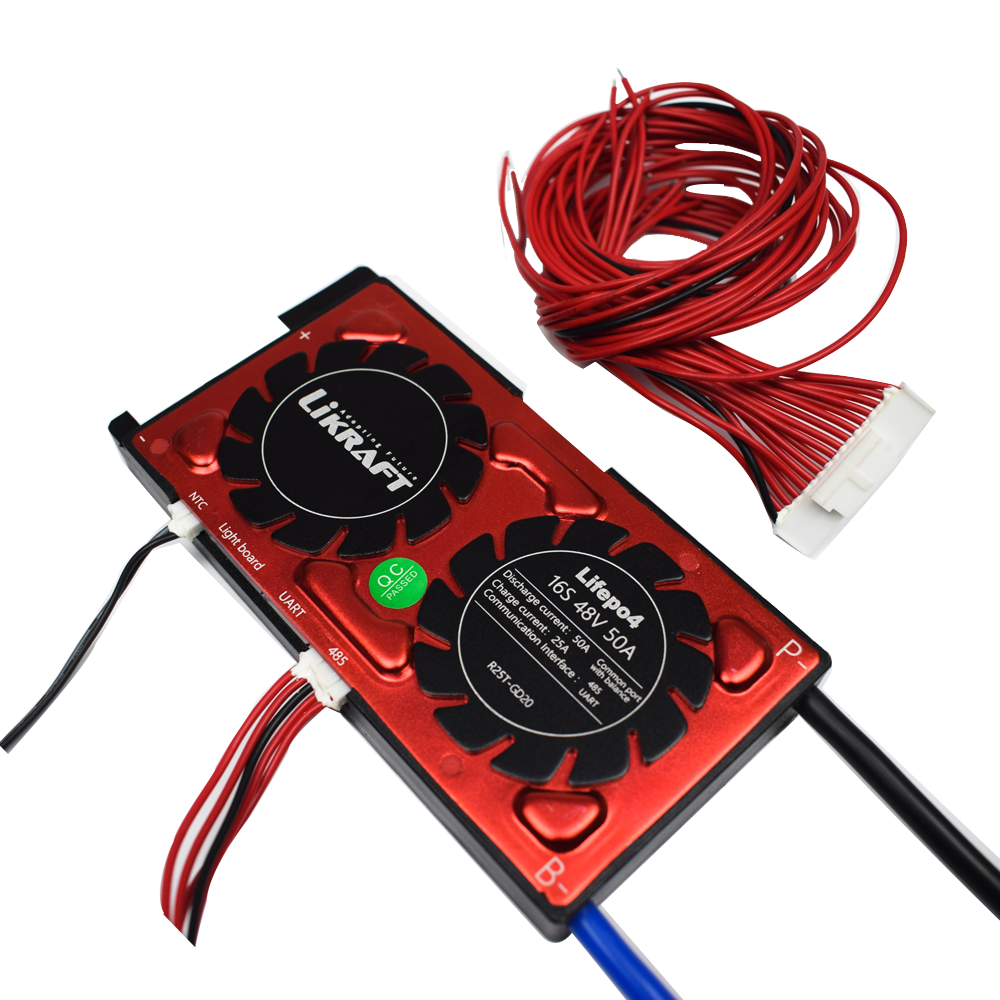

16S 48V 50A Lifepo4 Smart Battery Management System

Product Title: LIKRAFT Lifepo4 16S 48V 50A BMS

Product URL: https://www.electratraders.com/products/16s-48v-50a-lifepo4-smart-battery-management-system

Description:

Introducing the LIKRAFT Lifepo4 16S 48V 50A BMS - a battery management system that sets itself apart with its advanced features and intelligent design. This BMS is specifically designed to monitor battery status and control the charging and discharging process for up to 16 rechargeable batteries in series. It is equipped with overcharge, over-discharge, and short circuit protection, ensuring the safety of your batteries at all times.

The charge controller also has a maximum current limit of 50A and engages protection mode if the supplied voltage exceeds the permitted value. The Monitor port allows you to check the battery health status, and the BMS comes with RS-485 and UART communication protocols for easy communication.

But what truly sets this BMS apart is its focus on maximizing battery life. It has features such as overcharge and over-discharge protection, state of charge calculations, and intelligent battery balancing. The NTC port also allows for temperature measurement of the BMS, making it a comprehensive and efficient battery management system.

Applications:

1. Solar street lamps
2. Backup power
3. Energy storage
4. Electric vehicles

Specifications:

1. Model: R25T-GD20
2. Brand: Likraft
3. Type: Battery Management System
4. Discharge Current: 50A
5. Charge Current: 25A
6. Communication Interface: UART
7. Maximum Voltage: 48V
8. Dimensions: 127 x 65 x 17.7 mm
9. Country of Origin: China
