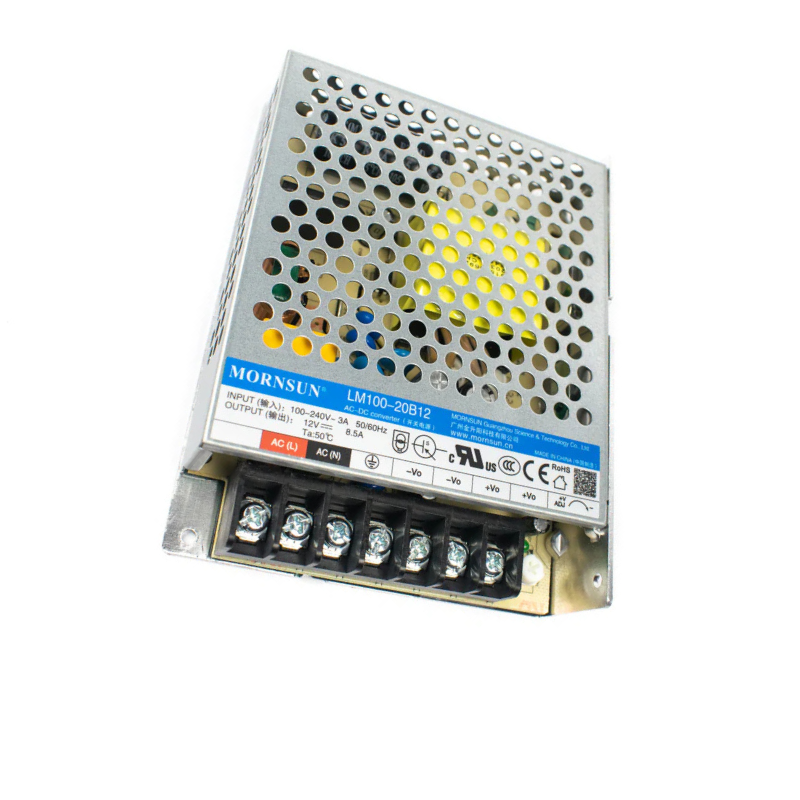

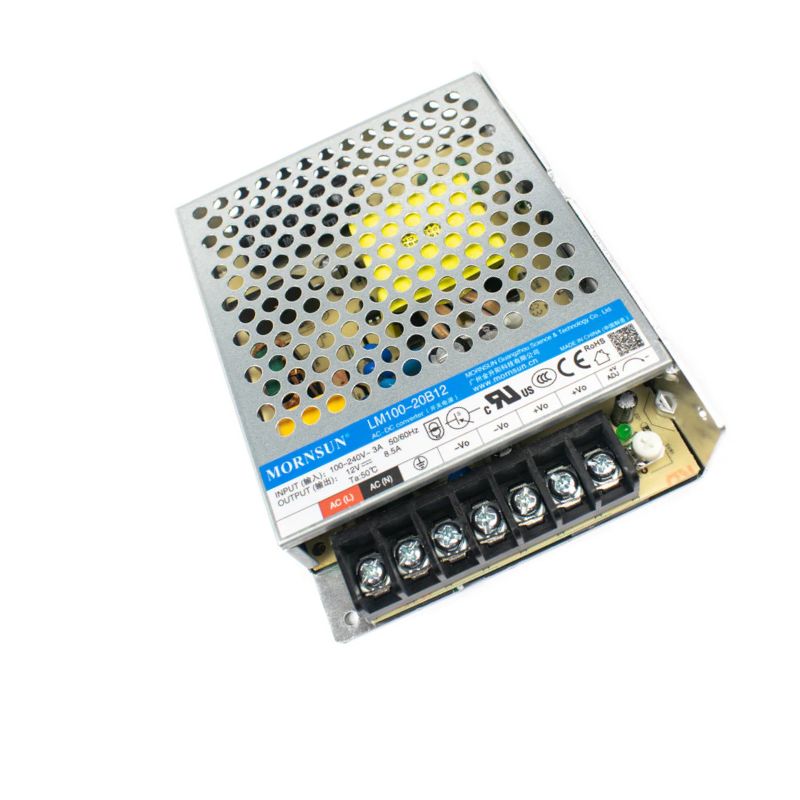

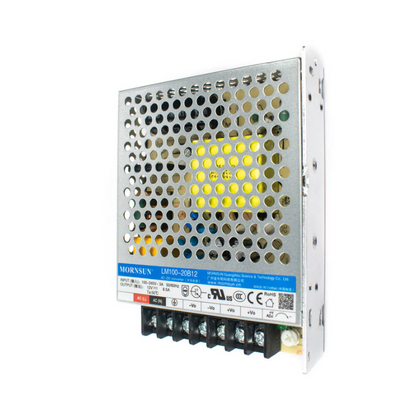

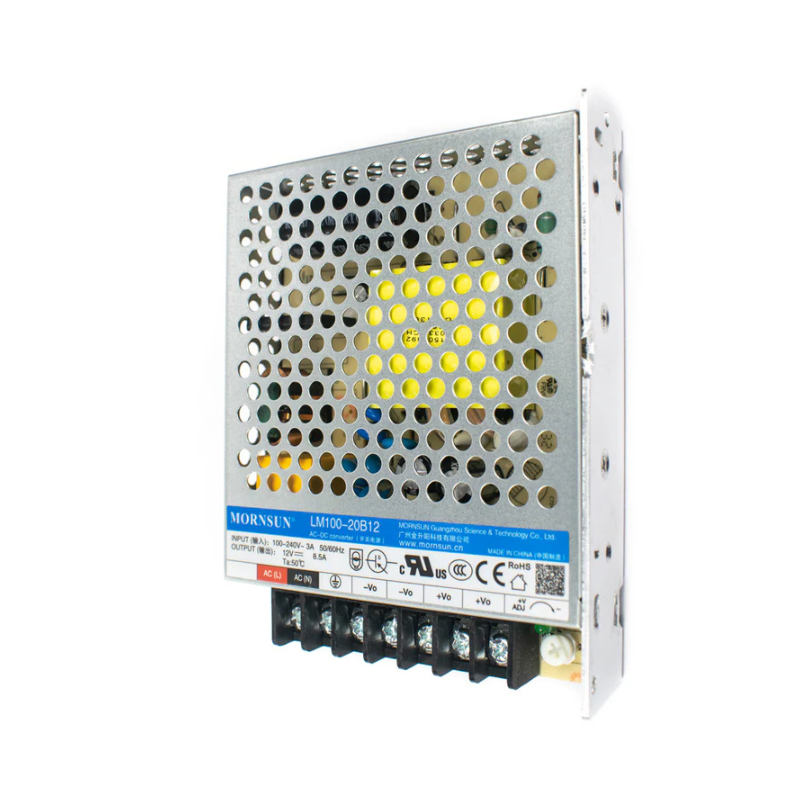

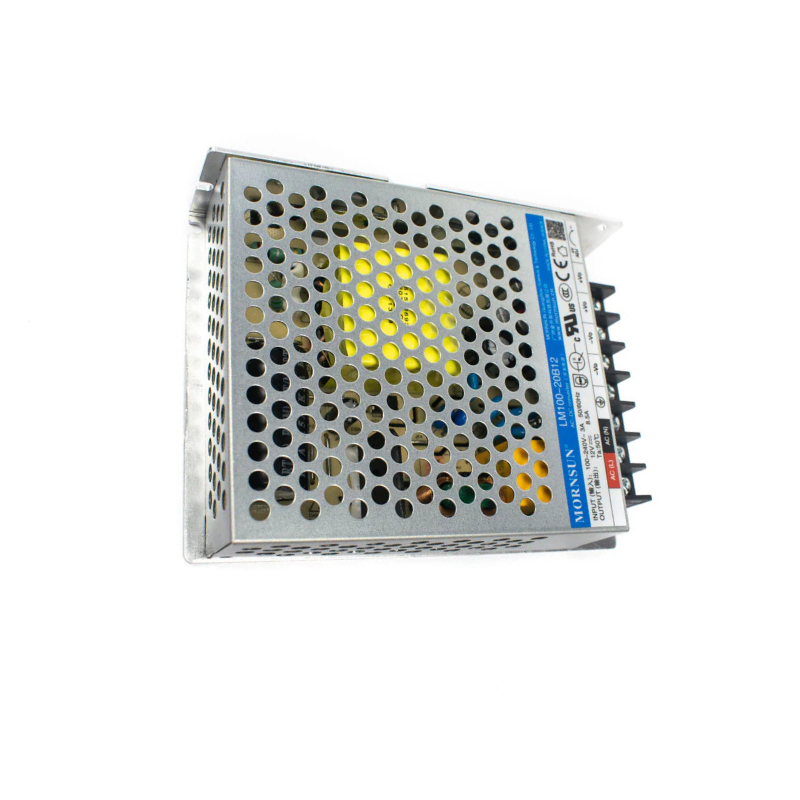

12V 8.5A Mornsun Power Supply (LM100-20B12)

One of Mornsun's enclosed AC-DC switching power supply is the LM100-20Bxx series. It is affordable, has a low no-load power consumption, is very reliable, efficient, and has universal AC input while also accepting DC input voltage. These converters are widely utilised in the fields of industrial, LED, street light control, power, security, telecommunications, smart homes, etc. They have outstanding EMC performance and satisfy IEC/EN61000-4, CISPR32/EN55032, IEC/EN/UL62368, EN60335, GB4943, and EN61558 standards.

FEATURES

• Universal input voltage range: 85–264 VAC or 120–370 VDC
• Allows for both AC and DC input (using the same terminal for both).
• Temperature range for operation: -30°C to +70°C
• High efficiency and low standby power consumption
• Test voltage for high I/O isolation up to 4000VAC
• Minimal noise and ripple
• Protection against output short circuits, over currents, and over voltages
• Class Ⅲ over-voltage (made to comply with EN61558)
• Working at elevations of up to 5000 meters

Specifications
