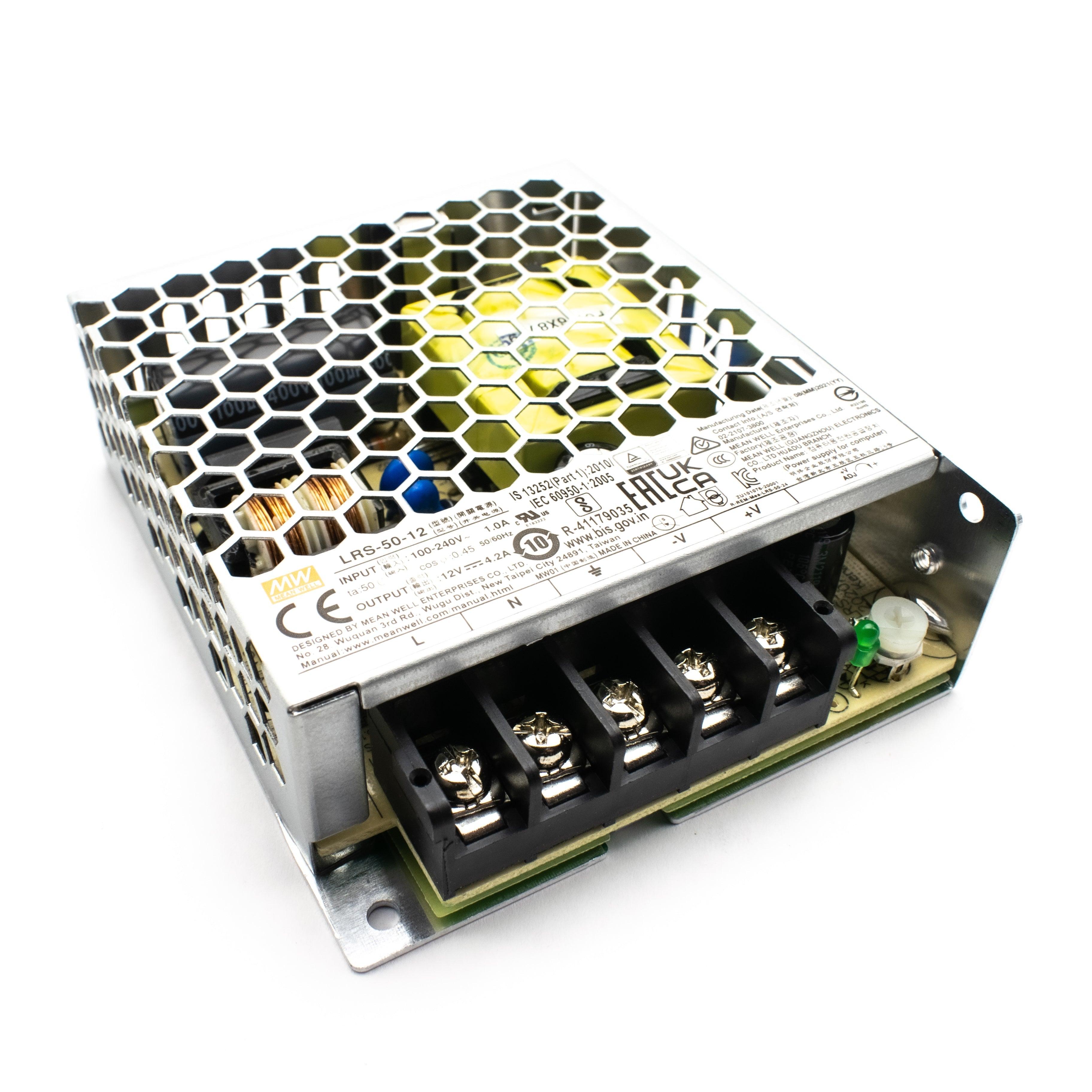

12V 50W Meanwell SMPS (LRS-50-12)

Product Title: Meanwell 12V 50W SMPS LRS-50-12

The Meanwell LRS-50 series is a unique 50W single-output enclosed type power supply with a low profile design of only 30mm. It has an AC input range of 85-264VAC, making it compatible with most household voltages. The output voltage is 12V, and the SMPS has an impressive efficiency of up to 86%. The metallic mesh case design allows for excellent heat dissipation, and the unit can operate in temperatures ranging from -30°C to 70°C without the need for a fan. With extremely low no-load power consumption and complete protection functions, the LRS-50 is compliant with international safety regulations and can be used for various purposes with optimal performance.

Pinout:

1. Pin No. 1,2: AC/L&N - Supplied AC Voltage (85 ~ 264VAC)
2. Pin No. 3: FG - GND
3. Pin No. 4: V- - DC OUTPUT -V
4. Pin No. 5: V+ - DC OUTPUT +V (12V)

Features:

1. Universal AC input/ Full range
2. Protections from Short circuit, Overload and Over-voltage
3. Cooling by free air convection
4. LED for indicating power on
5. 100% full load burn-in test
6. Withstand 300VAC surge input for 5 seconds
7. High operating temperature up to 70°C
8. Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16 for household appliances
9. Withstand 5G vibration test
10. No-load power consumption < 0.2W
