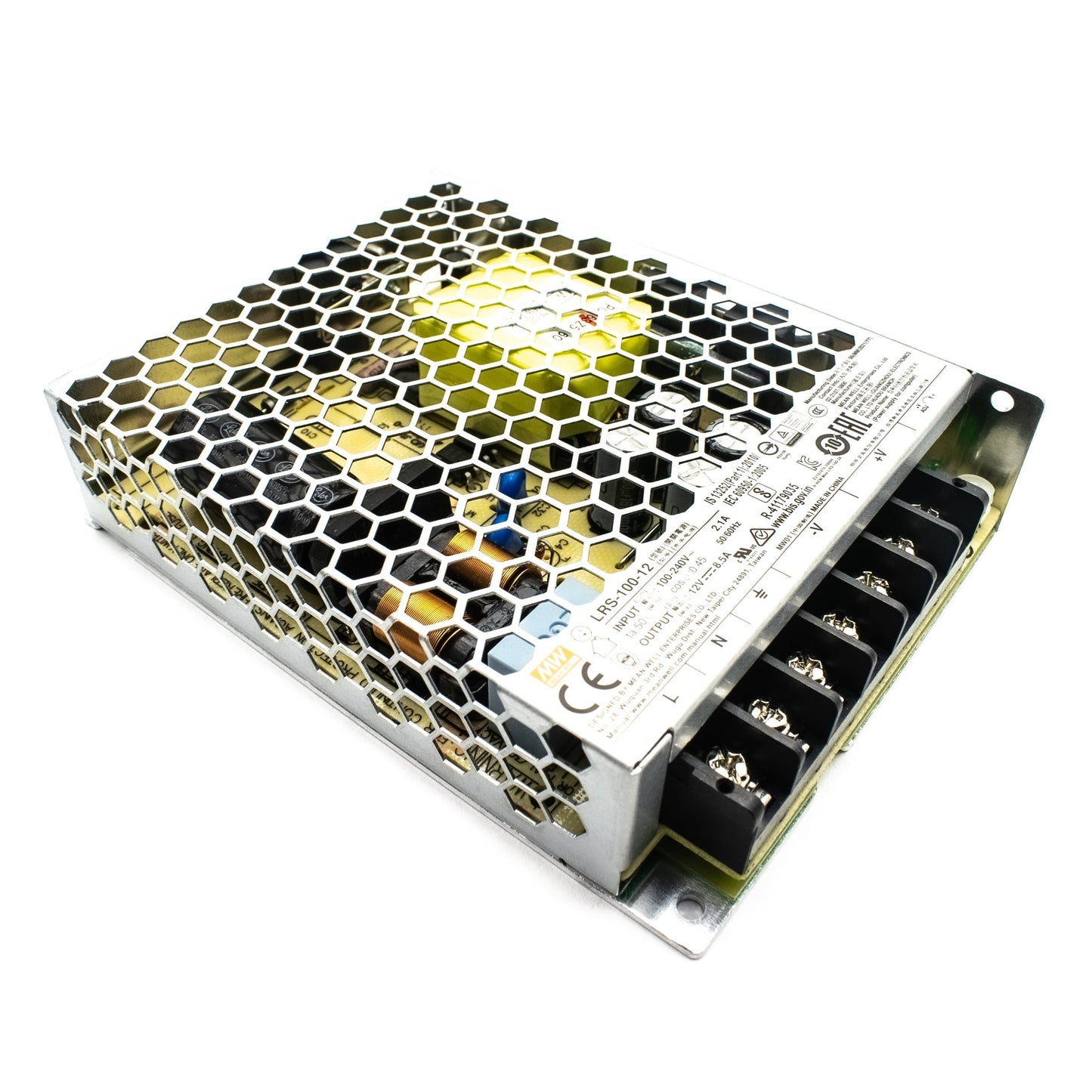

12V 102W Meanwell SMPS (LRS-100-12)

LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. The AC input is 85~264VAC which could be directly supplied from the house supplied voltage. The output from SMPS will be 12V. The SMPS has high efficiency up to 88%, the design is of a metallic mesh case which enhances the heat dissipation of LRS-100 that the whole series operates from -30,°C through 70,°C under air convection without a fan. It has extremely low no-load power consumption (less than 0.3W), which allows the end system to easily meet the worldwide energy requirement. LRS-100 has the complete protection functions and 5G antivibration capability; it complies with international safety regulations such as TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1 and GB4943. LRS-100 series can be used for many purposes with the best performance from it.


Feature:,

• Universal AC input/ Full range

• Protections from Short circuit, Overload and Overvoltage

• Cooling by free air convection

• It has a LED for indicating power on.
• 100% full load burn-in test
• Using 105,°C long life electrolytic capacitors for better performance

• Withstand 300VAC surge input for 5-second
• Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, 2-16 for household appliances

• High operating temperature up to 70,°C

• Miniature size and 1U low profile
• Withstand 5G vibration test

• No load power consumption<0.3W
• High efficiency, long life and high-reliability


Applications:,

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipment or apparatus
• Household appliances

Specifications

,
