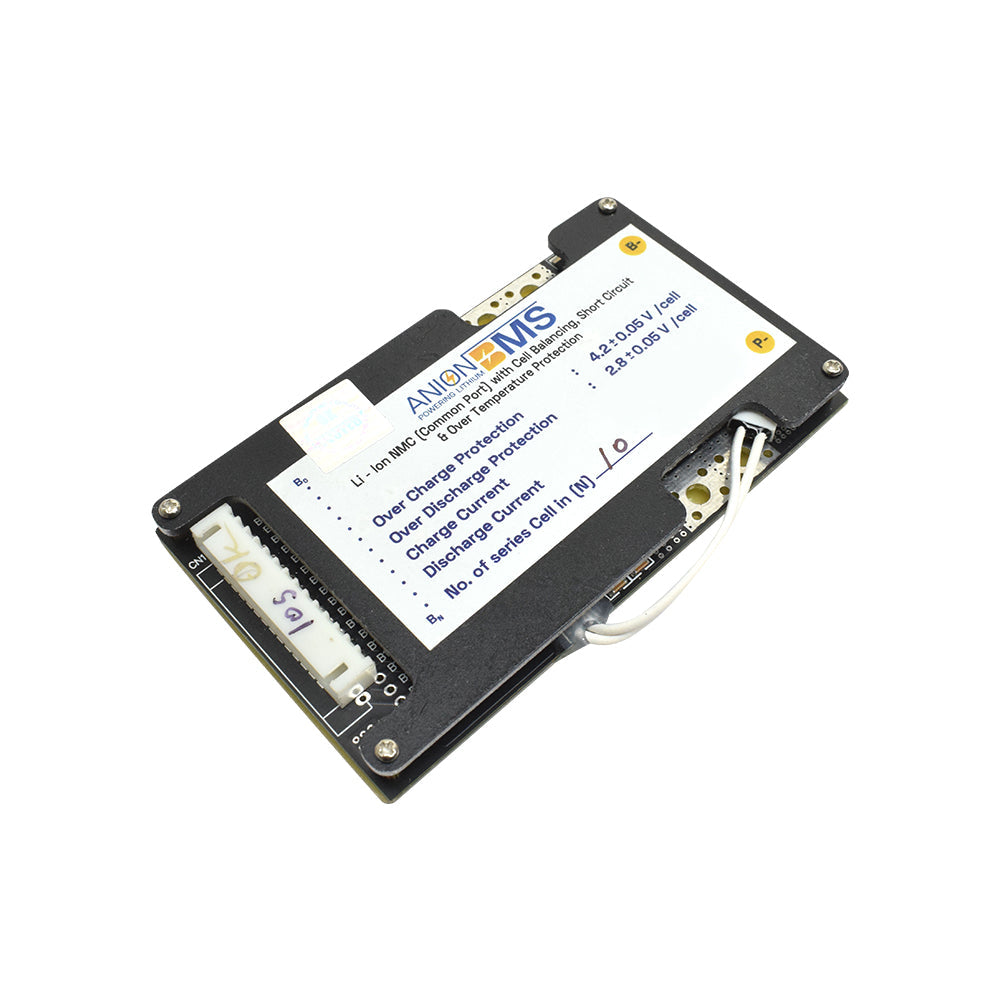

10S 37V 40A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

Product Title: 10S 37V 40A BMS for Lithium-Ion NMC Battery with Cell Balancing Common Port

A BMS or protection board is an essential electronic control circuit for any rechargeable battery. This particular BMS is designed for lithium-ion NMC batteries and offers unique features such as cell balancing and a common port. It monitors and regulates the charging and discharging of the battery, ensuring safe operation and prolonging battery life. It also monitors important battery characteristics such as state of charge, voltage, temperature, and individual cell voltage. This BMS is versatile and can be used in various applications, including electric tools, electric vehicles, solar/wind energy storage systems, and more.

Specifications:

1. Product Type: Battery Management System (BMS)
2. Brand: Anion BMS
3. Variant: 10S | 37V
4. Overcharge Detect Voltage: 4.2±0.05V/Cell
5. Over-discharge Detect Voltage: 2.8±0.05V/Cell
6. Cell Balancing: Yes (Passive)
7. Short Circuit Protection: Yes
8. Temperature Protection: 70°C
9. Charge Current: 0-20A
10. Discharge Current: 40A
11. Size: 10.6x6.1x1.2cm
