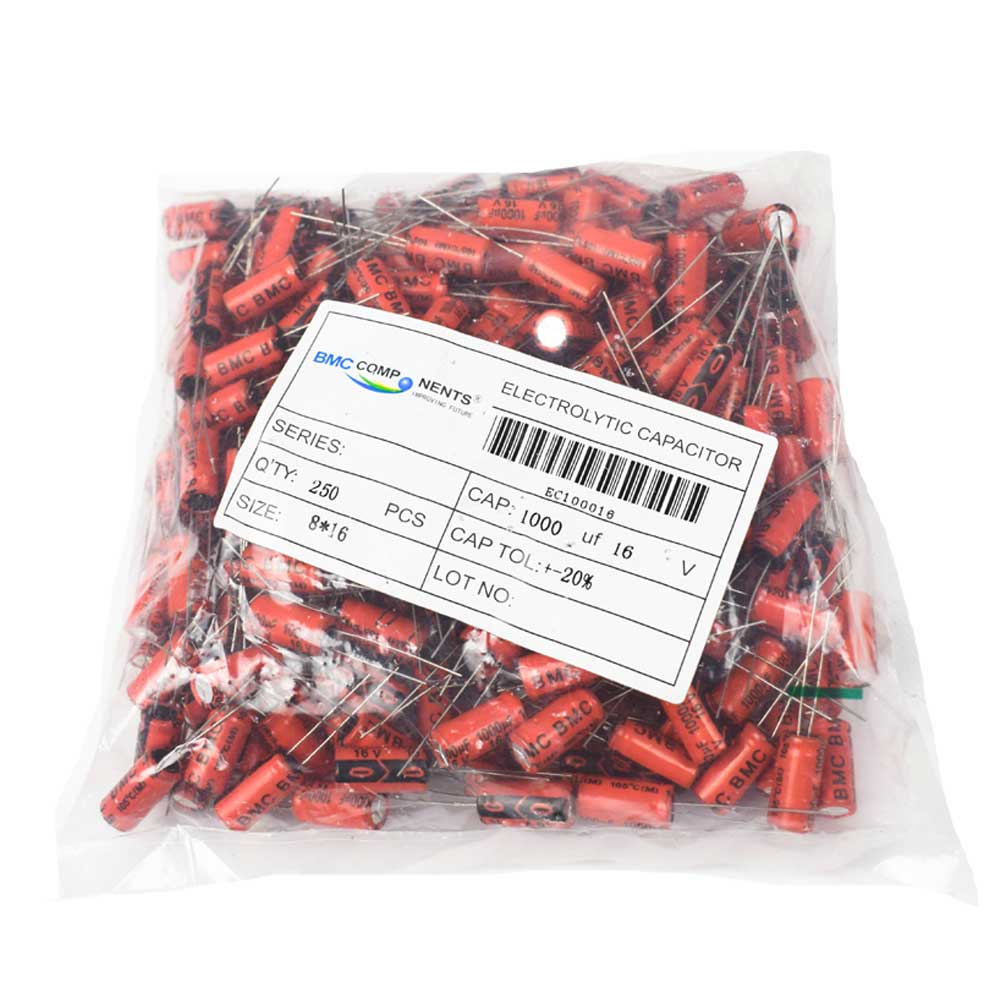

1000µF 16V Electrolytic Capacitor (Pack of 250)

Product Title: 1000µF 16V Electrolytic Capacitor

This 1000µF 16V Electrolytic Capacitor is a unique and high-quality product made with high purity Etched and Formed Aluminium foil. It features an aluminium oxide dielectric barrier as anode foil and an aluminium cathode foil, which are concentrically wound with a layer of condenser grade paper in between. After impregnation with electrolyte, the wound element is housed in an Aluminium can and then hermetically sealed using a rubber bung to form an Aluminium electrolytic capacitor.

The most notable advantage of this product is its higher capacitance ratio to dimensions when compared with other capacitors. This is due to the microscopically thin dielectric layer, which produces large capacitance per unit area. This makes it a highly efficient and space-saving option for various electronic applications.

Specifications:

1. Capacitor Value: 1000µF
2. Voltage: 16V
3. Type: Electrolytic Capacitor
4. Size: 8x16mm
5. Operating Temperature: -40°C to 85°C
6. Tolerance: ±20%
7. Mounting Type: Through Hole
8. Make: BMC Component
9. Quantity: 250
10. Country of Origin: China
