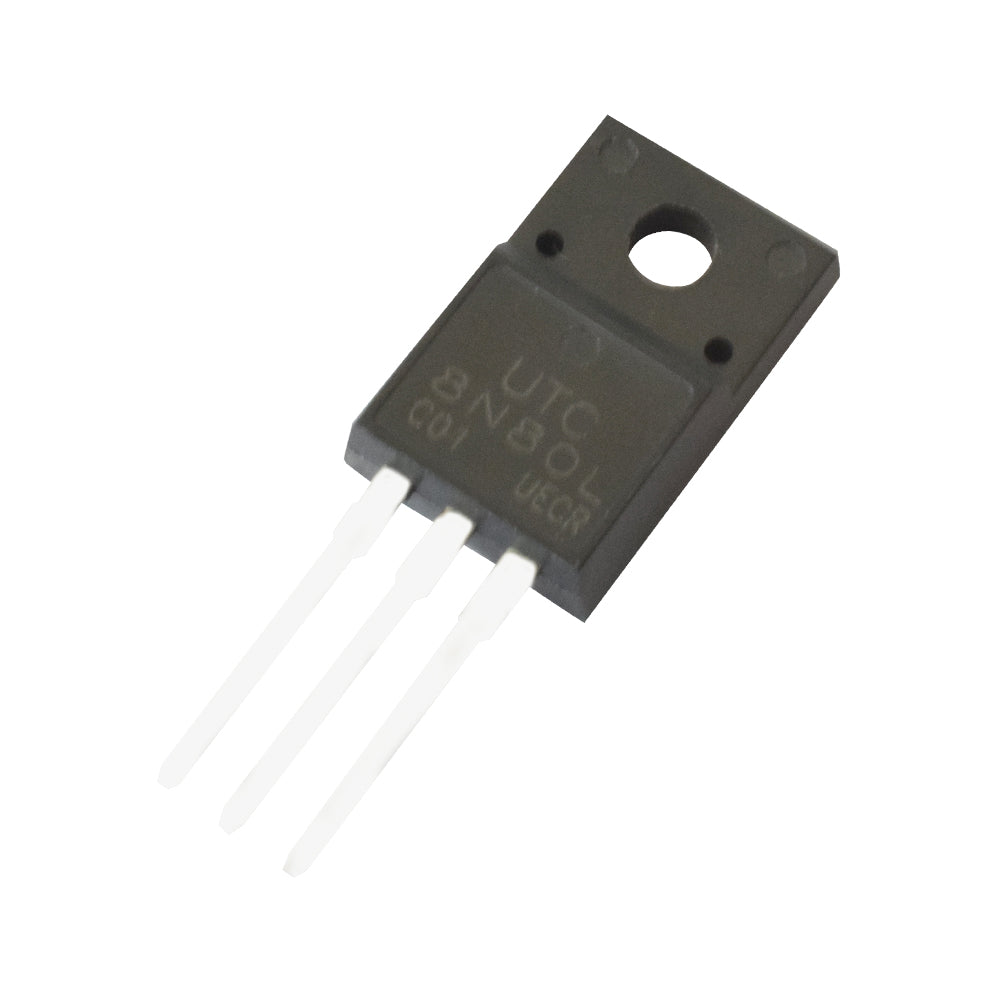

UTC8N80L 800V, 8A N-Channel MOSFET

Product Title: UTC8N80L 800V 8A N-Channel MOSFET

The UTC8N80 is a unique N-channel mode power MOSFET that stands out from other products on the market. It utilizes DMOS and planar stripe technology, which is a cutting-edge innovation from UTC. This technology allows for enhanced switching performance and low on-state resistance, making it ideal for high-efficiency switch mode power supplies.

Features:

1. RDS(ON) ≤ 1.45Ω @ VGS=10V, ID=4.0A
2. Improved dv/dt Capability
3. Fast Switching Speed
4. 100% Avalanche Tested
5. Small Size
6. Affordable Price
7. Highly Efficient

Specifications:

1. Model: UTC8N80L
2. Type: MOSFET
3. Package: TO-220F1,F2,F4
4. Drain Source Voltage: 800V
5. Gate Source Voltage: 30V
6. Drain Current: 8A
7. Total Power Dissipation: 62W
8. Operating and Storage Temperature Range: -55°C to 150°C
9. Country of Origin: China

With its impressive features and specifications, the UTC8N80L is a top choice for those in need of a reliable and high-performing MOSFET. Don't miss out on this unique product from UTC.
