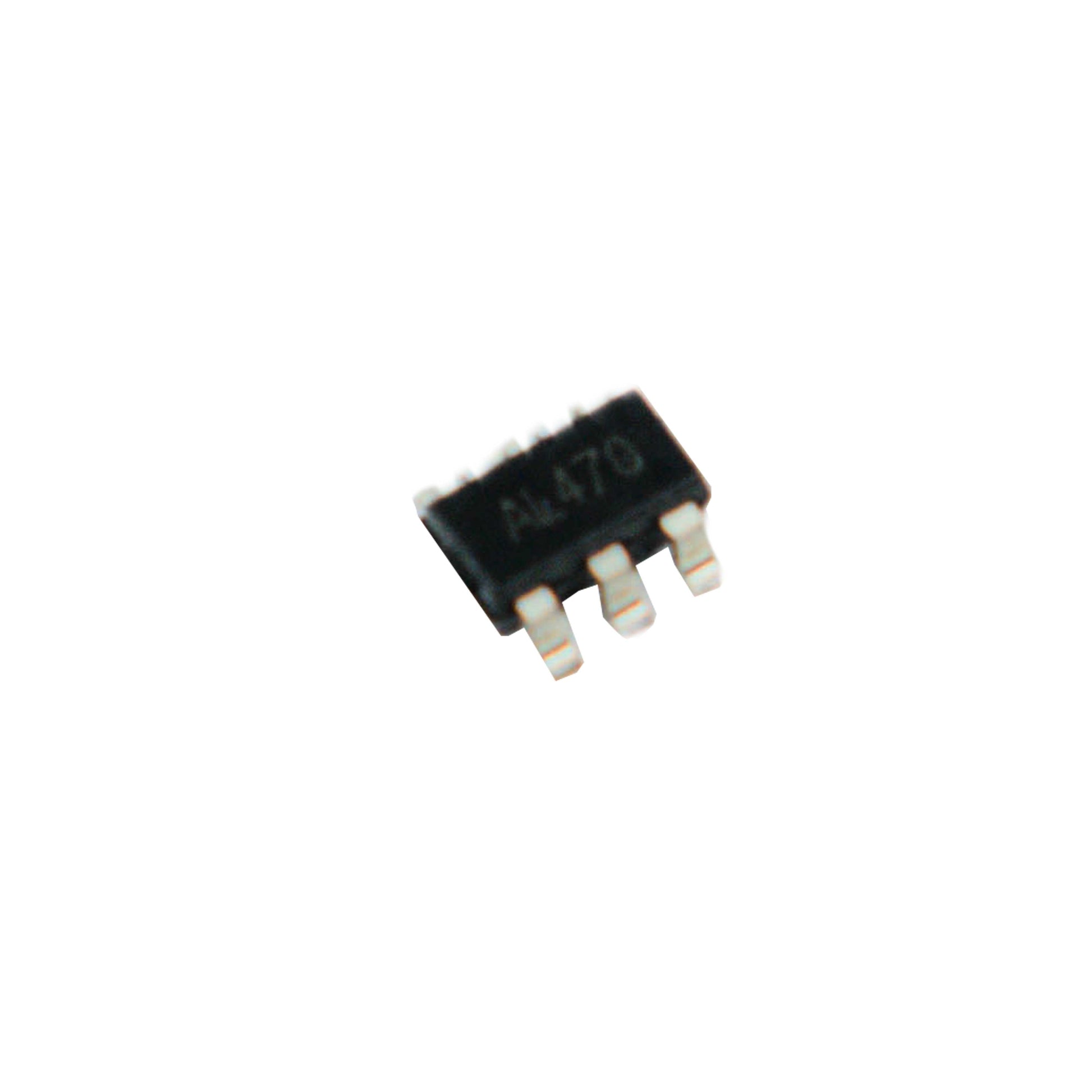

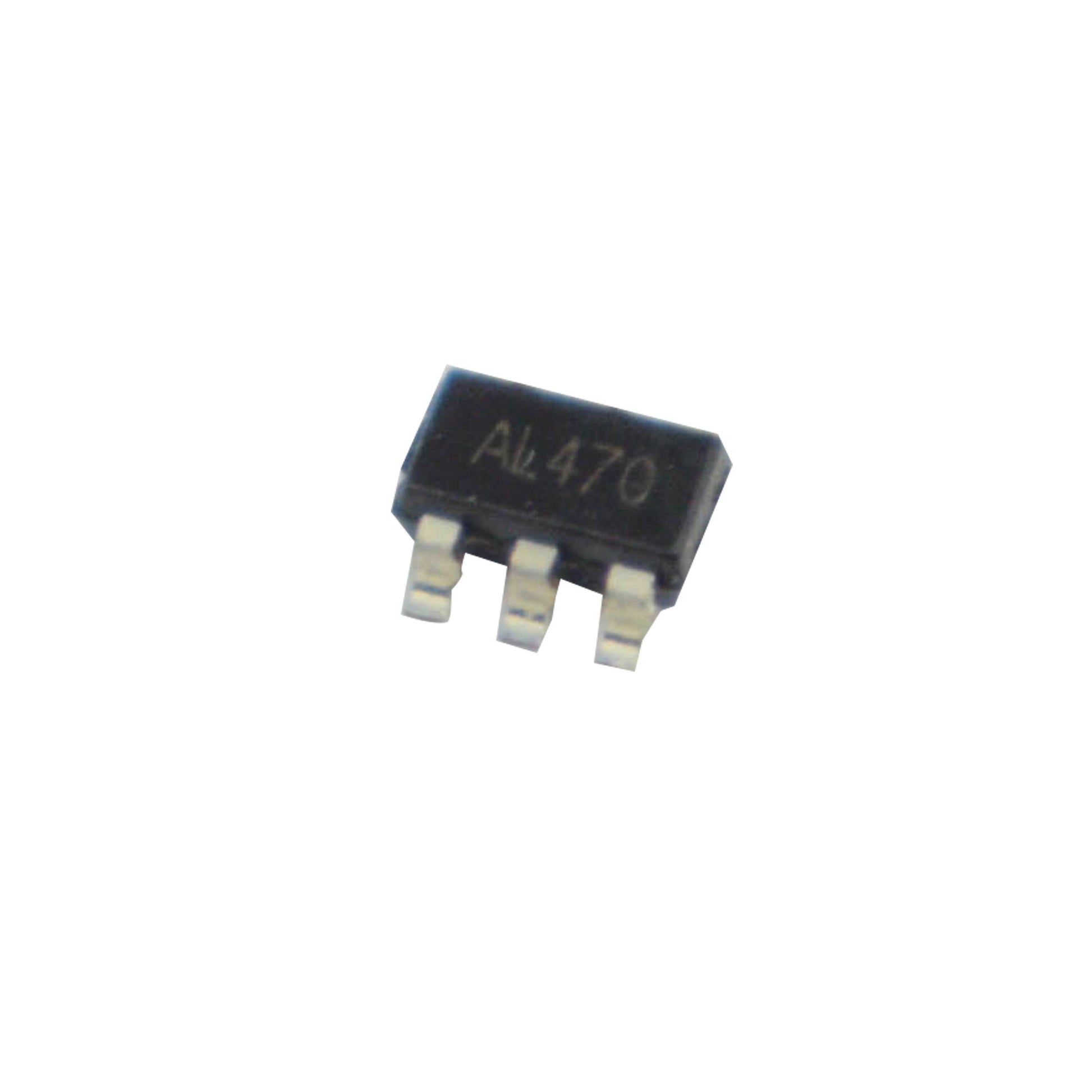

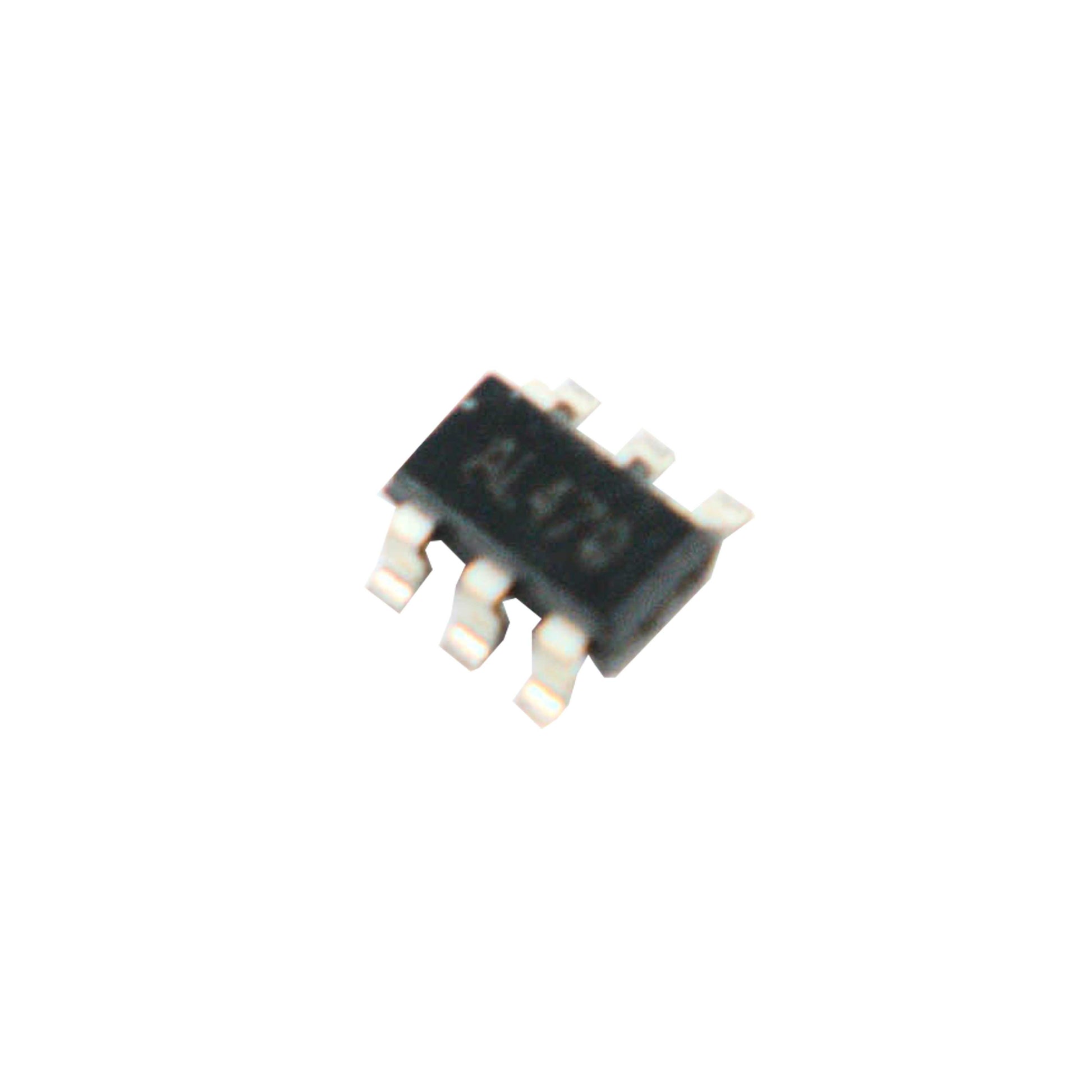

Texas TLV70433 3.3V 150mA Low-Dropout Voltage Regulator

Product Title: Texas TLV70433 3.3V 150mA Low Dropout Voltage Regulator

The TLV70433 is a unique DC linear voltage regulator that stands out for its ability to regulate output voltage even when the supply voltage is extremely close to the output value. This is made possible by its ultralow quiescent current, which ensures stable performance over a wide range of load currents and ambient temperatures. With a ground pin current of only 3.4 μA, this low-dropout regulator is perfect for power-sensitive applications such as low-power microcontrollers like the MSP430.

One of the standout features of the TLV70433 is its wide operating input voltage range of 2.5 to 24 volts, making it suitable for both battery-powered systems and industrial applications that experience large line transients. It is also stable with a low-ESR, 1-µF typical output capacitor, making it a reliable choice for a variety of applications.

Some of the potential uses for the TLV70433 include ultralow power microcontrollers, E-meters, fire alarms and smoke detector systems, handset peripherals, industrial and automotive applications, remote controllers, Zigbee® networks, and portable, battery-powered equipment. With a maximum power dissipation of 470 mW and an operating supply current of only 3.4 uA, this device offers efficient power management for a wide range of devices.

Specifications:

1. Model: TLV70433
2. Brand: Texas Instruments
3. Output Current: 150 mA
4. Output Voltage: 3.3 V
5. Quiescent Current: 3.2 uA
6. Operating Voltage: 1.2 – 5 V
7. Operating Temperature: -40 – 125 °C
8. Power Dissipation: 470 mW
9. Operating Supply Current: 3.4 uA
10. Package: SMD
11. Country of Origin: China

Experience the reliable and efficient power management of the Texas TLV70433 3.
