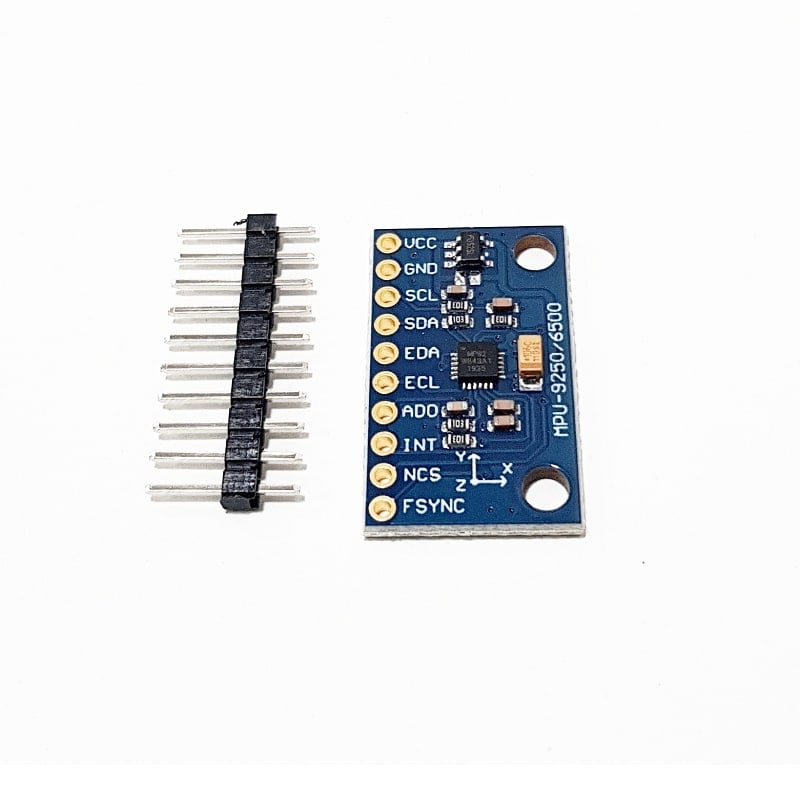

MPU9250 9-Axis Attitude Gyro Accelerometer Magnetometer Sensor Module

Product Title: MPU9250 9-Axis Attitude Gyro/Accelerometer/Magnetometer Sensor Module

This versatile sensor module is a must-have for any electronics enthusiast or professional. It combines an accelerometer, gyroscope, and magnetometer in one compact package, making it perfect for a wide range of applications. The module is powered by a DC3.3V-5V power supply and features the highly reliable MPU9250 chip. With a size of just 22 mm x 17 mm, it is small enough to fit into any project without taking up too much space.

The module offers a gyro range of ± 250, 500, 1000, or 2000 °/s, an acceleration range of ± 2, 4, 8, or 16g, and a magnetic field range of ± 4800uT. This allows for precise and accurate measurements in any orientation. The 9 degrees of freedom (DOF) modules can be powered by a 4.4 to 6.5 V power supply or 3.3V if the solder jumper near the on-board voltage regulator is soldered.

The module has a compact and sturdy design, with dimensions of 25 mm x 15 mm x 3.5 mm and a weight of just 5 grams. It is also easy to integrate into any project, with an I2C interface for communication. The shipping weight of the module is only 0.01 kg, making it convenient to order and receive. The shipping dimensions are 4 cm x 2 cm x 1 cm, ensuring that it can be delivered to you quickly and safely.
